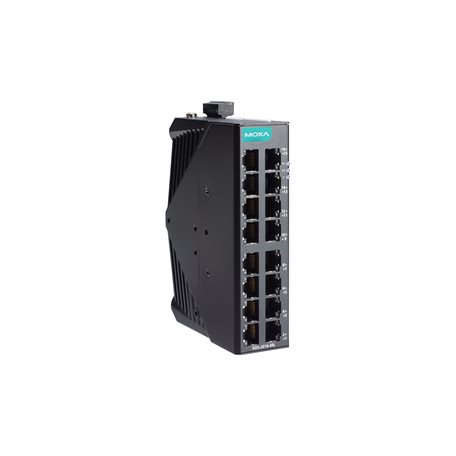

EDS-2016-ML-T
EDS-2016-ML 系列

Unmanaged Ethernet switch with 16 10/100BaseT(X) ports, -40 to 75°C operating temperature

Ethernet Interface
  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3x for flow control
      IEEE 802.1p for Class of Service
DIP Switch Configuration
  • Ethernet Interface

    • Quality of Service (QoS), Broadcast storm protection, Port break alarm
Input/Output Interface
  • Alarm Contact Channels

    • Relay output with current carrying capacity of 1 A @ 24 VDC
Switch Properties
  • MAC Table Size

    • 8 K
  • Packet Buffer Size

    • 2 Mbits
  • Processing Type

    • Store and Forward
Power Parameters
  • Connection

    • 1 removable 6-contact terminal block(s)
  • Input Voltage

    • 12/24/48 VDC, Redundant dual inputs
  • Operating Voltage

    • 9.6 to 60 VDC
  • Overload Current Protection

    • Supported
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Weight

    • EDS-2016-ML: 486 g (1.07 lb)
  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • Standard Models: -10 to 60°C (14 to 140°F)
      Wide Temp. Models: -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Safety

    • UL 61010-2-201, EN 62368-1(LVD)
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Railway

    • EN 50121-4
  • Vibration

    • IEC 60068-2-6
  • Shock

    • IEC 60068-2-27
  • Freefall

    • IEC 60068-2-32
MTBF
  • Time

    • 2,070,826 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
