单对线以太网交换机 (SPE/APL)

Moxa 单对以太网 (SPE) 和 Ethernet-APL (APL) 交换机专为过程自动化等现场应用设计，采用 10BASE-T1L 技术，通过单根双绞线电缆同时传输电力和数据（SPE 具备 PoDL 供电功能）。这两类交换机有助于简化布线和网络架构，同时将以太网延伸至现场，将现场仪表无缝连接至控制中心，构建真正统一的 IT/OT 网络。



（仅限页面描述）更多信息请访问：Single-pair Ethernet | Moxa 和 Ethernet-APL | Moxa

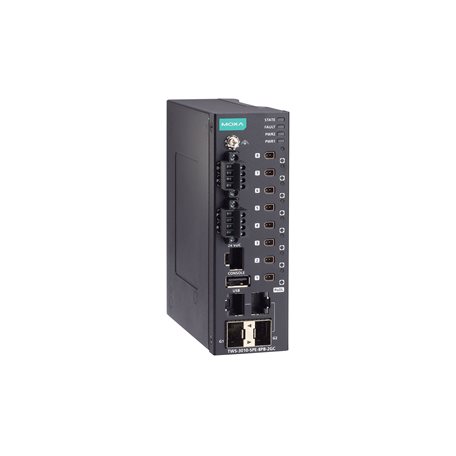

TWS-3010-SPE-8PB-2GC-T
TWS-3010-SPE 系列

Managed single-pair Ethernet switch with 2 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 8 10BASE-T1L ports with IEC 63171-2 SPE connectors and PoDL power classes 10, 11, and 12, dual 24 VDC power supplies, -40 to 75°C operating temperature

Input/Output Interface

  • Alarm Contact Channels

    • 1
      Relay output with current carrying capacity of 1 A @ 24 VDC

  • Buttons

    • Reset button

  • Digital Input Channels

    • 1

  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA
Ethernet Interface

  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP)

    • 2

  • Standards

    • IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1s for Multiple Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for authentication
      IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
      IEEE 802.3z for 1000BaseX
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3ad for Port Trunk with LACP
      IEEE802.3cg for 10Base-T1L and PoDL

  • SPE Ports (10Base-T1L)

    • 8
      IEC 63171-2 SPE connectors
      PoDL classes 10, 11, and 12
Ethernet Software Features

  • Filter

    • 802.1Q VLAN
      BPDU Guard
      BPDU Filter
      GMRP
      GVRP
      IGMP v1/v2/v3
      Port-based VLAN

  • Industrial Protocols

    • EtherNet/IP
      Modbus TCP
      PROFINET IO Device

  • Management

    • LLDP
      Back Pressure Flow Control
      BOOTP
      Port Mirroring
      DHCP Option 66/67/82
      DHCP Server/Client
      Fiber check
      Flow control
      IPv4/IPv6
      RARP
      RMON
      SCP
      SMTP
      SNMP Inform
      SNMPv1/v2c/v3
      Syslog
      Telnet
      TFTP

  • MIB

    • Ethernet-like-MIB
      MIB-II
      Bridge-MIB
      P-BRIDGE MIB
      Q-BRIDGE-MIB
      RMON MIB Groups 1, 2, 3, 9
      RSTP MIB

  • Redundancy Protocols

    • Link Aggregation
      MRP
      MSTP
      RSTP
      STP

  • Security

    • Broadcast storm protection
      HTTPS/SSL
      TACACS+
      SNMPv3
      Sticky MAC
      NTP authentication
      Port Lock
      RADIUS
      SSH
      SMTP with TLS

  • Time Management

    • NTP Server/Client
      SNTP
Switch Properties

  • IGMP Groups

    • 2048

  • MAC Table Size

    • 8 K

  • Max. No. of VLANs

    • 64

  • Packet Buffer Size

    • 1 Mbits

  • Priority Queues

    • 4

  • VLAN ID Range

    • VID 1 to 4094
USB Interface

  • Storage Port

    • USB Type A (for ABC-02 only)
LED Interface

  • LED Indicators

    • PWR1, PWR2, STATE, FAULT, Gigabit combo port, SPE port, SPE PoDL indicator
Serial Interface

  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
Rotary Switch Configuration

  • Industrial Profile

    • Indicator Mode
      0 No function enabled via DIP switch (Default)
      1 PROFINET profile enabled
      2 PROFINET profile and DHCP client enabled
      3 EtherNet/IP profile enabled
      4 EtherNet/IP profile and DHCP client enabled
      5 Modbus TCP profile enabled
      6 Modbus TCP profile and DHCP client enabled
      7-9 Reserved (currently performs the same behavior as indicator 0)
Power Parameters

  • Connection

    • 2 removable 4-contact terminal block(s)

  • Input Current

    • 24 VDC, 4.8 A (max.)

  • Input Voltage

    • 24 VDC
      Redundant dual inputs

  • Operating Voltage

    • 20 to 30 VDC

  • Overload Current Protection

    • Supported

  • Reverse Polarity Protection

    • Supported
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP30

  • Dimensions

    • 43 x 135 x 111 mm (1.69 x 5.32 x 4.37 in)

  • Weight

    • 830 g (1.77 lb)

  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Altitude

    • Up to 2,000 m
      Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes
Standards and Certifications

  • Safety

    • UL 61010-2-201
      EN IEC 62368-1

  • EMC

    • EN 61000-6-2/-6-4

  • EMI

    • FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Level 3
      IEC 61000-4-3 RS: Level 3
      IEC 61000-4-4 EFT: Level 3
      IEC 61000-4-5 Surge: Level 3
      IEC 61000-4-6 CS: Level 3
      IEC 61000-4-8 PFMF: Level 3

  • Vibration

    • IEC 60068-2-6
      IEC 60068-2-64

  • Shock

    • IEC 60068-2-27

  • Freefall

    • ISTA 1A (with package)
MTBF

  • Time

    • 1,332,050 hrs

  • Standards

    • Telcordia (Bellcore), GB
