MOXA

蜂窝网关/调制解调器

Moxa LTE 网关/调制解调器助您轻松、高效地部署高性能远程网络应用。我们的 LTE 网关/调制解调器配置便捷，保障您的通讯渠道安全无虞，实现智能远程管理，确保可靠连接。

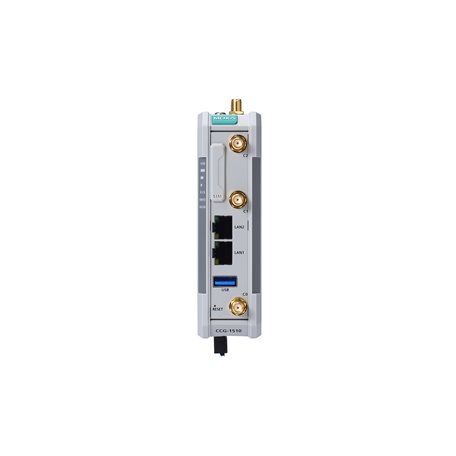

CCG-1510-US-T
CCG-1500 系列

Industrial private 5G cellular gateway, N48 band for US, IP30, -40 to 70°C operating temperature

Media Converter Interface

  • Ethernet Ports

    • Auto sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

  • Serial Ports

    • RS-232/422/485 ports x 1 (5-pin terminal block)

  • Cellular Antenna Connector (with GPS)

    • SMA x 6

  • SIM Format

    • Nano

  • Number of SIMs

    • 2
Ethernet Interface

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 2

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3u for 100BaseT(X)

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Serial Interface

  • Console Port

    • 1 x 4-pin header to DB9 console port

  • Data Bits

    • 5, 6, 7, 8

  • Parity

    • None, Even, Odd, Space, Mark

  • Stop Bits

    • 1, 1.5, 2

  • Baudrate

    • 9600 to 115200 bps
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Cellular Interface

  • Cellular Standards

    • 5G R15

  • Frequency Bands Supported

    • NR: N48
LED Indicators

  • System

    • Power x 1
      SIM card indicator x 1
      5G / LTE indicator x 1

  • Wireless Signal Strength

    • Cellular x 3
Power Parameters

  • Input Voltage

    • 9 to 24 VDC

  • Power Consumption

    • Average: 8 W
      Peak: 11 W

  • Input Current

    • 9 to 24 VDC @ 1.33 to 0.5 A min

  • Power Connector

    • Terminal block
Physical Characteristics

  • Dimensions

    • 100 x 125 x 35.2 mm (3.93 x 4.92 x 1.38 in)

  • Housing

    • Metal
      SECC

  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)

  • IP Rating

    • IP30
      Note: The rubber SIM cover and console port cover should be attached. For CCG-1520-T, the SMA protection cover must also be attached.

  • Weight

    • 750 g (1.65 lb)
Environmental Limits

  • Operating Temperature

    • Reduced cellular performance below -5°C and above 55°C
      -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    • -20 to 70°C (-4 to 158°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
MTBF

  • Time

    • 1,036,724 hrs

  • Standards

    • Telcordia SR332
Warranty
