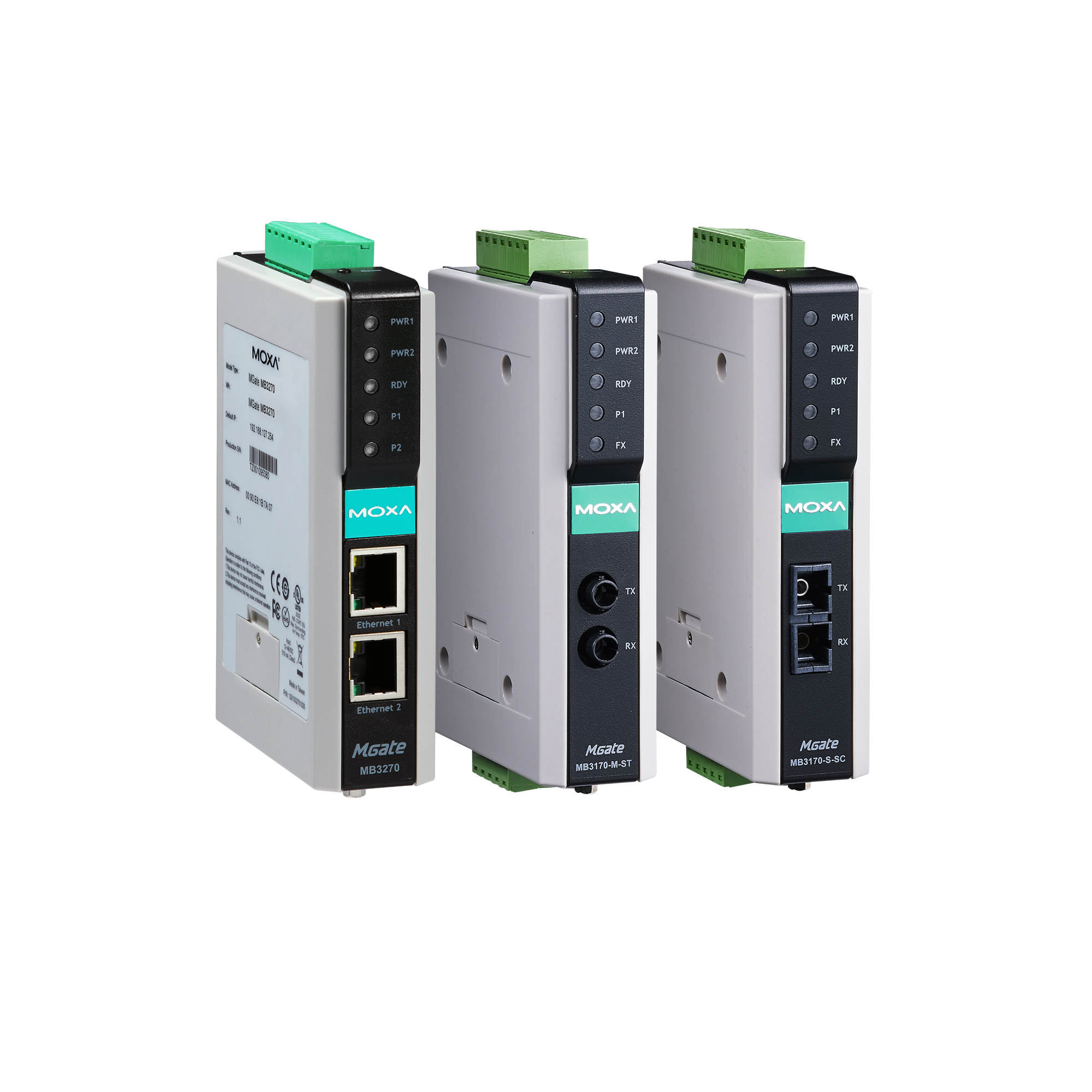

MGate MB3170/MB3270 系列

1 和 2 端口高级串口转以太网 Modbus 网关

moxa-mgate-mb3170-mb3270-series-image-1-(1).jpg | Moxa

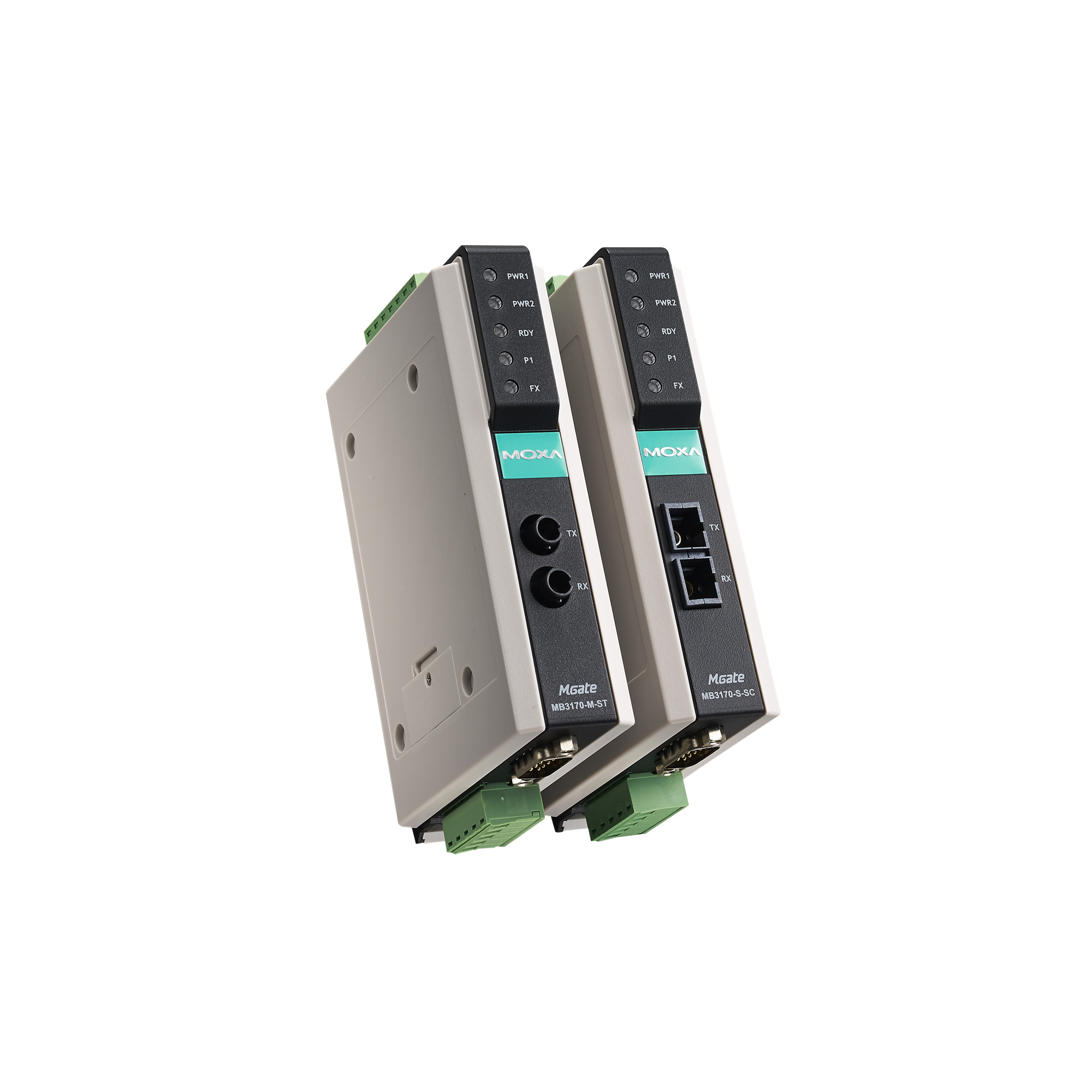

moxa-mgate-mb3170-mb3270-series-image-2-(1).jpg | Moxa

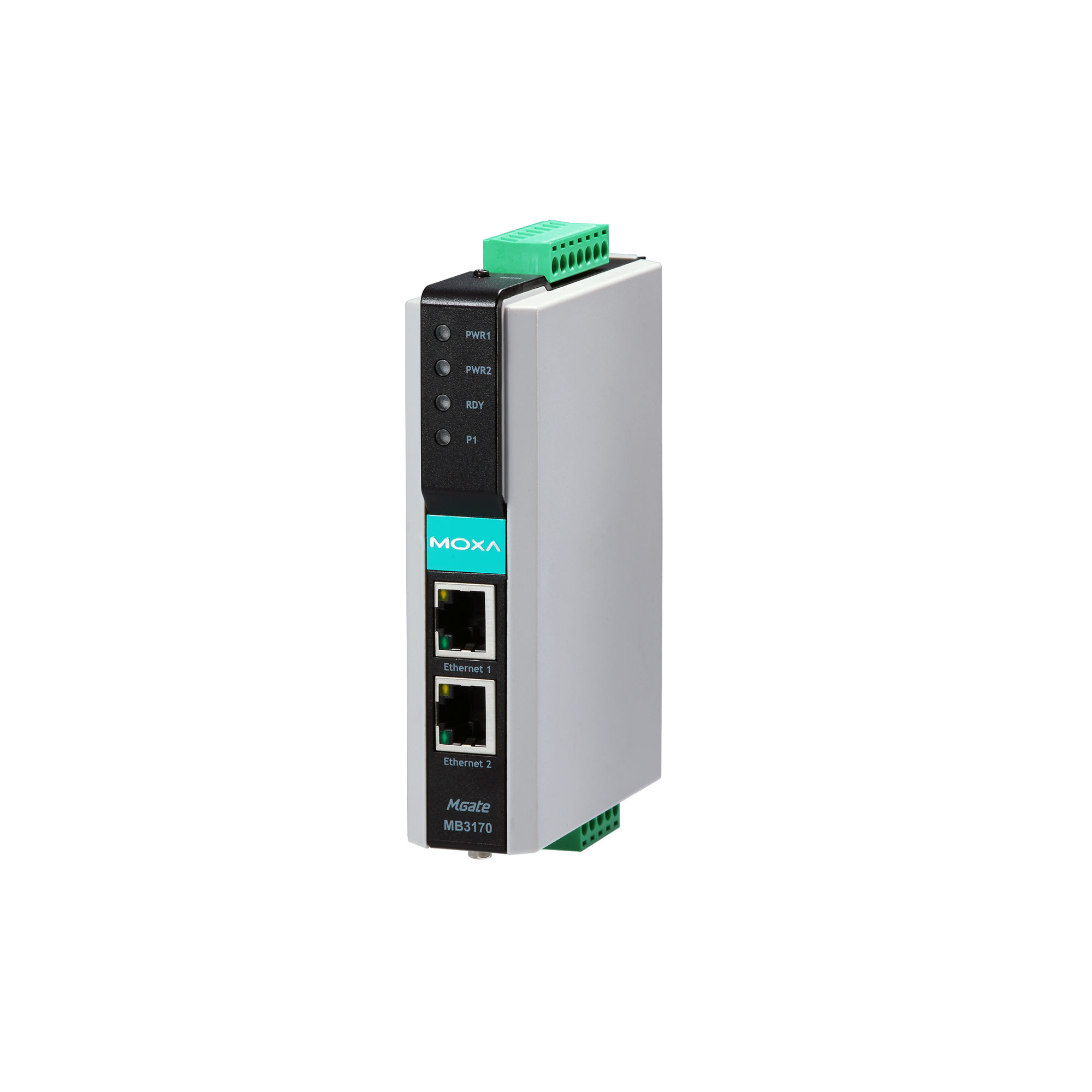

moxa-mgate-mb3170-mb3270-series-image-3-(1).jpg | Moxa

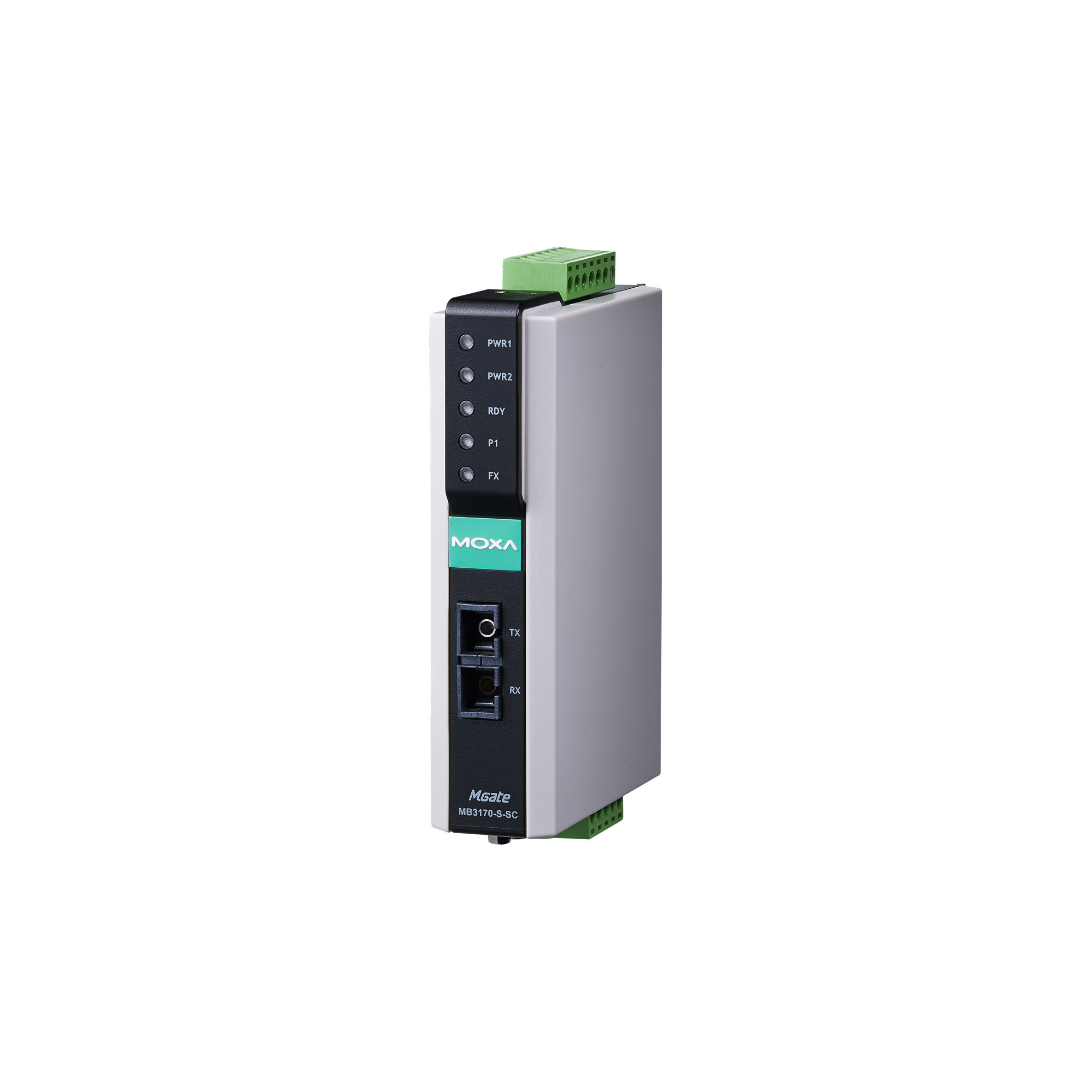

moxa-mgate-mb3170-mb3270-series-image-4-(1).jpg | Moxa

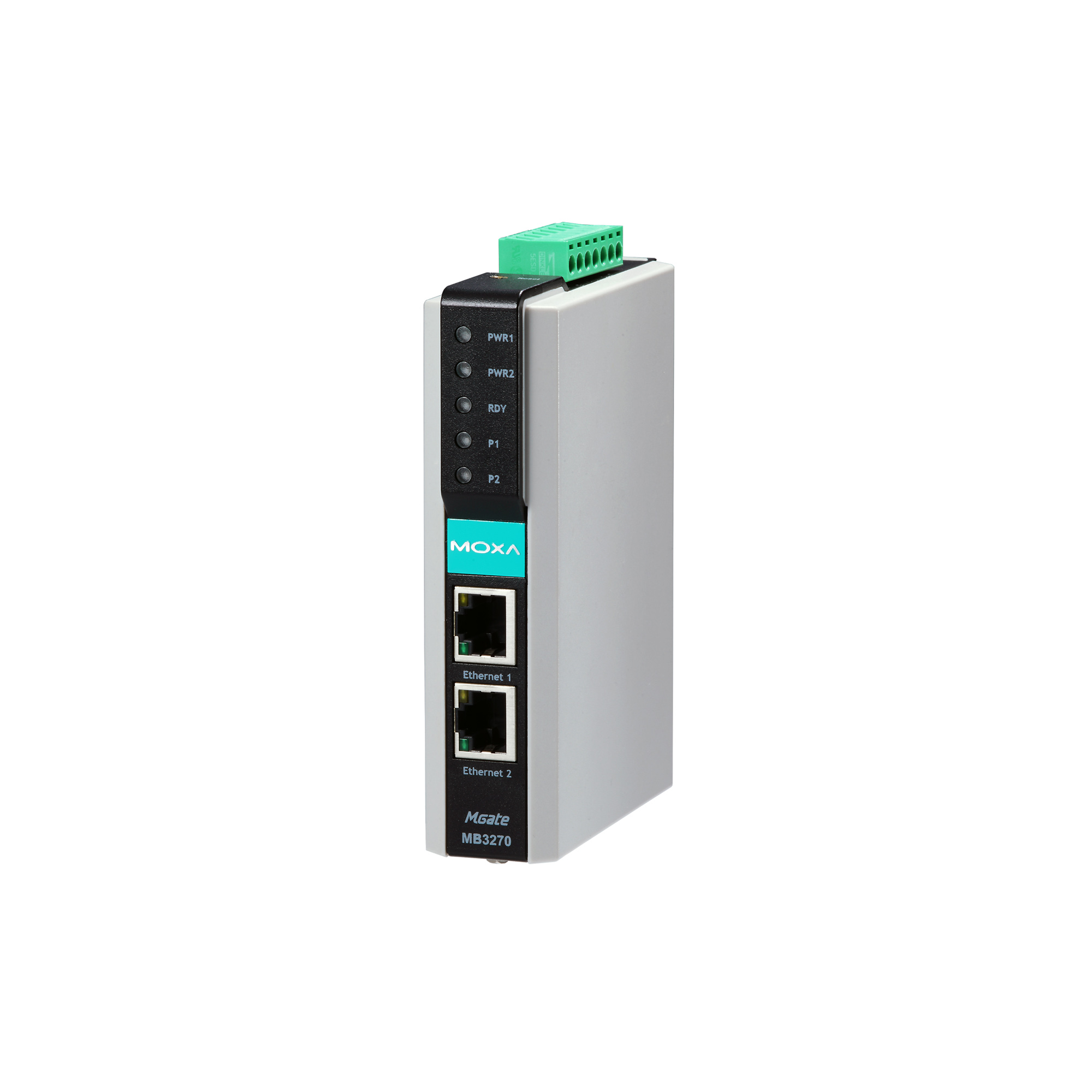

moxa-mgate-mb3170-mb3270-series-image-5-(1).jpg | Moxa

特点和优势

  • 支持自动设备路由,简化配置
  • 通过 TCP 端口或 IP 地址进行路由,实现灵活部署
  • 最多可连接 32 个 Modbus TCP server
  • 最多可连接 31 或 62 个 Modbus/RTU/ASCII slave
  • 最多可由 32 个 Modbus TCP client 访问(每个 master 保留 32 个 Modbus 请求)
  • 支持 Modbus 串口 master 至 Modbus 串口 slave 的通信
  • 内置以太网级联端口,容易接线
  • 10/100BaseTX (RJ45) 或 100BaseFX(单模或多模,带 SC/ST 接头)
  • 提供紧急的命令请求通道,确保 QoS 控制
  • 内置 Modbus 流量监控,方便故障排除
  • 带 2 kV 光电隔离保护的串口(适用于“-I”型号)
  • -40 至 75°C 的宽温型号可供选择
  • 支持冗余双直流电源输入和 1 个继电器输出

认证

  • moxa-dnv-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

联系销售人员

介绍

MGate MB3170 和 MB3270 分别是 1 和 2 端口 Modbus 网关,可进行 Modbus TCP、ASCII 和 RTU 协议之间的转换。网关支持串口转以太网和串口 (master) 转串口 (slave) 通信。此外,网关同时支持将串口和以太网 master 连接至串口 Modbus 设备。MGate MB3170 和 MB3270 系列网关最多可由 32 个 TCP master/client 访问,或最多可连接 32 个 TCP slave/server。可通过 IP 地址、TCP 端口号或者 ID 映射控制串口的路由。独特的优先级控制功能允许紧急命令获得即时响应。所有型号均采用坚固耐用的导轨式安装,并提供可选的内置串口光电隔离保护。



不需改变 Modbus RTU/ASCII 网络或软件,即可与 TCP Master 轻松集成

MB3270 可轻松集成 Modbus TCP 与 Modbus RTU/ASCII 网络,无需改变现有的 Modbus RTU/ASCII 架构或软件。通过串口重定向器功能,串口 master 可以通过指定映射的串口直接访问串口 slave 设备。这个功能允许串口和 TCP master 同时访问串口 slave。



用于以太网通信的光纤

MGate MB3170 系列包括 100BaseFX 光纤型号,多模型号的传输距离最长可达 4 km,单模型号的传输距离最长可达 40 km。光纤非常适合工业应用,因为它免于电磁噪声的干扰。光纤为高压回路环境提供更佳的隔离保护,由于不会产生火花,因此光纤比铜线更安全,适用于危险环境。



自动设备路由,简化配置(专利申请中)

Moxa 的自动设备路由功能为需要配置大量 Modbus 设备的工程师解决许多问题和不便。只需一键即可设置 slave ID 路由表完成 Modbus 网关配置,并自动检测来自监控和数据采集 (SCADA) 系统的 Modbus 请求。通过消除手动创建 slave ID 路由表的需要,自动设备路由功能为工程师节省了大量时间和成本。



紧急命令的优先级控制(已获得专利)

随着 Modbus 网络规模和复杂性的增加,命令和响应之间的滞后时间成为重要议题。MB3000 系列的高级型号为紧急命令提供了优先级控制功能,允许用户强制某些命令获得即时响应。根据系统需求,可使用不同方式来定义哪些命令具有优先级。

专利号:(US/TW)

  • US7,743,192 B2/I332618

  • US7,725,635 B2/I321007



  • 10/100BaseT(X) 端口(RJ45 接头)

    2(1 个 IP,以太网级联)
    自动 MDI/MDI-X 连接

  • 电磁隔离保护

    1.5 kV(内置)

  • 光纤



  • 光纤





  • 工业协议

    Modbus TCP Client (Master)、Modbus TCP Server (Slave)

  • 配置选项

    Web Console (HTTP/HTTPS)、设备搜寻工具 (DSU)、MGate 管理器、Telnet Console

  • 管理

    ARP、DHCP Client、DNS、HTTP、HTTPS、SMTP、SNMP Trap、SNMPv1/v2c/v3、TCP/IP、Telnet、UDP、NTP Client

  • MIB

    RFC1213、RFC1317

  • 对时服务

    NTP Client

  • 端口数量

    MGate MB3170 系列:1
    MGate MB3270 系列:2

  • 接头

    MGate MB3170/MB3170I:用于 RS-232 的 DB9 公头和用于 RS-422/485 的接线端子
    MGate MB3270/MB3270I:2 x DB9 公头

  • 串口标准

    RS-232/422/485(软件可选)

  • 波特率

    50 bps 至 921.6 kbps

  • 数据位

    7,8

  • 校验位

    无、偶、奇、Space、Mark

  • 停止位

    1,2

  • 流量控制

    DTR/DSR、RTS Toggle(仅限 RS-232)、RTS/CTS

  • RS-485 数据流向控制

    ADDC®(数据流向自动控制)

  • RS-485 上拉电阻/下拉电阻

    1 kΩ,150 kΩ

  • RS-485 终端电阻

    120 Ω

  • 隔离保护

    MGate MB3170I:2 kV(I 型号)
    MGate MB3170I-T:2 kV(I 型号)
    MGate MB3170I-M-SC:2 kV(I 型号)
    MGate MB3170I-M-SC-T:2 kV(I 型号)
    MGate MB3170I-S-SC:2 kV(I 型号)
    MGate MB3170I-S-SC-T:2 kV(I 型号)
    MGate MB3270I:2 kV(I 型号)
    MGate MB3270I-T:2 kV(I 型号)

  • RS-232

    TxD、RxD、RTS、CTS、DTR、DSR、DCD、GND

  • RS-422

    Tx+、Tx-、Rx+、Rx-、GND

  • RS-485-2w

    Data+、Data-、GND

  • RS-485-4w

    Tx+、Tx-、Rx+、Rx-、GND

  • 工业协议

    Modbus RTU/ASCII Master、Modbus RTU/ASCII Slave

  • 最大 Client 连接数量

    32

  • 最大 Server 连接数量

    32

  • 输入电压

    12 至 48 VDC

  • 输入电流

    MGate MB3170/MB3270:435 mA @ 12 VDC
    MGate MB3170I/MB3170-S-SC/MB3170I-M-SC/MB3170I-S-SC:555 mA @ 12 VDC
    MGate MB3270I/MB3170-M-SC/MB3170-M-ST:510 mA @ 12 VDC

  • 电源接头

    7-pin 接线端子

  • 触点额定电流

    纯电阻性负载:1 A @ 30 VDC

  • 外壳

    塑料

  • IP 等级

    IP30

  • 尺寸(有挂耳)

    29 x 89.2 x 124.5 mm(1.14 x 3.51 x 4.90 英寸)

  • 尺寸(无挂耳)

    29 x 89.2 x 118.5 mm(1.14 x 3.51 x 4.67 英寸)

  • 重量

    MGate MB3170 系列:360 g (0.79 lb)
    MGate MB3270 系列:380 g (0.84 lb)

  • 工作温度

    MGate MB3170:0 至 60°C(32 至 140°F)
    MGate MB3170-T:-40 至 75°C(-40 至 167°F)
    MGate MB3170-IEX:0 至 60°C(32 至 140°F)
    MGate MB3170-T-IEX:-40 至 75°C(-40 至 167°F)
    MGate MB3170-M-SC:0 至 60°C(32 至 140°F)
    MGate MB3170-M-SC-T:-40 至 75°C(-40 至 167°F)
    MGate MB3170-M-ST:0 至 60°C(32 至 140°F)
    MGate MB3170-M-ST-T:-40 至 75°C(-40 至 167°F)
    MGate MB3170-S-SC:0 至 60°C(32 至 140°F)
    MGate MB3170-S-SC-T:-40 至 75°C(-40 至 167°F)
    MGate MB3170I:0 至 60°C(32 至 140°F)
    MGate MB3170I-T:-40 至 75°C(-40 至 167°F)
    MGate MB3170I-IEX:0 至 60°C(32 至 140°F)
    MGate MB3170I-T-IEX:-40 至 75°C(-40 至 167°F)
    MGate MB3170I-M-SC:0 至 60°C(32 至 140°F)
    MGate MB3170I-M-SC-T:-40 至 75°C(-40 至 167°F)
    MGate MB3170I-S-SC:0 至 60°C(32 至 140°F)
    MGate MB3170I-S-SC-T:-40 至 75°C(-40 至 167°F)
    MGate MB3270:0 至 60°C(32 至 140°F)
    MGate MB3270-T:-40 至 75°C(-40 至 167°F)
    MGate MB3270-IEX:0 至 60°C(32 至 140°F)
    MGate MB3270-T-IEX:-40 至 75°C(-40 至 167°F)
    MGate MB3270I:0 至 60°C(32 至 140°F)
    MGate MB3270I-T:-40 至 75°C(-40 至 167°F)
    MGate MB3270I-IEX:0 至 60°C(32 至 140°F)
    MGate MB3270I-T-IEX:-40 至 75°C(-40 至 167°F)

  • 存储温度(含包装)

    -40 至 85°C(-40 至 185°F)

  • 相对湿度

    5 至 95%(非冷凝)

  • 安全

    EN 60950-1,UL 508

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD:接触:6 kV;空气:8 kV
    IEC 61000-4-3 RS:80 MHz 至 1 GHz:10 V/m
    IEC 61000-4-4 EFT:电源:4 kV;信号:2 kV
    IEC 61000-4-5 Surge:电源:2 kV
    IEC 61000-4-6 CS:10 V
    IEC 61000-4-8 PFMF
    IEC 61000-4-11 DIP

  • 海事

    DNV-GL

  • 自由落体

    IEC 60068-2-32

  • 冲击

    IEC 60068-2-27

  • 振动

    IEC 60068-2-6,IEC 60068-2-64

  • 时间

    MGate MB3170/MB3170I 系列:1,349,710 小时
    MGate MB3170-M-SC/M-ST/S-SC 系列:1,175,887 小时
    MGate MB3170I-M-SC 系列:768,343 小时
    MGate MB3170I-S-SC 系列:763,707 小时
    MGate MB3270/MB3270I 系列:1,236,384 小时

  • 标准

    Telcordia SR332

软件、固件和驱动程序

筛选

名称 类型 校驗和 版本 操作系统 发布日期
Firmware for MGate MB3170/MB3270 Series (MGate MB3170 models)
903.7 KB
固件
SHA-512
v4.5
2023年11月30日 2023年11月30日 发布说明
Firmware for MGate MB3170/MB3270 (MGate MB3270 models)
920.8 KB
固件
SHA-512
v4.5
2023年11月30日 2023年11月30日 发布说明
MXview One plugin (Linux)
15.4 MB
软件包
SHA-512
v1.3
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
2023年10月2日 2023年10月2日 发布说明
MGate Manager Utility
5.4 MB
管理工具
SHA-512
v1.18
  • Windows
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2023年9月25日 2023年9月25日 发布说明
MXconfig plugin (non-Java version)
839.5 KB
软件包
SHA-512
v1.2
  • Windows 10
  • Windows 7
  • Windows Server 2016
  • Windows Server 2019
2023年8月31日 2023年8月31日 发布说明
MXview One plugin (Windows)
12.8 MB
软件包
SHA-512
v1.2
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2023年8月2日 2023年8月2日 发布说明
Software Package for MXview One Series (Linux version)
291.7 MB
软件包
SHA-512
v1.2.0
  • Linux
2023年7月31日 2023年7月31日 发布说明
Software Package for MXview One Series (Windows version)
296.2 MB
软件包
SHA-512
v1.2.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2023年7月31日 2023年7月31日 发布说明
MXconfig plugin
3.4 MB
软件包
SHA-512
v1.4
  • Windows 10
  • Windows 7
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
2023年7月17日 2023年7月17日 发布说明
Moxa CLI Configuration Tool for Windows
2.0 MB
管理工具
SHA-512
v1.3
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2023年6月29日 2023年6月29日 发布说明
Moxa CLI Configuration Tool for Linux
11.6 MB
管理工具
SHA-512
v1.3
  • Linux Kernel 2.6.x
  • Linux Kernel 3.x
  • Linux Kernel 4.x
  • Linux Kernel 5.x
2023年6月29日 2023年6月29日 发布说明
Device Search Utility
2.2 MB
管理工具
SHA-512
v2.7
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
2023年6月28日 2023年6月28日 发布说明
MXview plugin
32.8 MB
软件包
SHA-512
v1.4
  • Windows 10
  • Windows 7
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2023年5月2日 2023年5月2日 发布说明
Moxa CLI Configuration Tool for Linux
8.1 MB
管理工具
SHA-512
v1.2
  • Linux Kernel 2.6.x
  • Linux Kernel 3.x
  • Linux Kernel 4.x
2021年3月31日 2021年3月31日 发布说明
Moxa CLI Configuration Tool for Windows
2.1 MB
管理工具
SHA-512
v1.2
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2021年3月31日 2021年3月31日 发布说明

支持文件

名称 类型 语言 版本 发布日期
Manual for MGate MB3000 Series
15.3 MB
手册 英文 v13.1 2023年9月15日 2023年9月15日
QIG for MGate MB3170/MB3270 Series
1.0 MB
QIG 英文 v8.4 2023年5月19日 2023年5月19日
Moxa CLI Configuration Tool User Manual
1.0 MB
手册 英文 v2.1 2023年3月28日 2023年3月28日
Tech Note: The Security Hardening Guide for MGate MB3000 Series
922.4 KB
技术说明 英文 v1.1 2022年1月12日 2022年1月12日
Moxa CLI Configuration Tool User's Manual
1.1 MB
手册 英文 v2.0 2019年3月5日 2019年3月5日
MGate MB3170/MB3270 系列产品资料表
2.5 MB
产品资料表 中文 v1.0 2018年11月11日 2018年11月11日
2D CAD for MGate MB3170
425.7 KB
2D CAD 英文 2015年1月7日 2015年1月7日
2D CAD for MGate MB3170-SC
241.1 KB
2D CAD 英文 2015年1月7日 2015年1月7日
2D CAD for MGate MB3170-ST
241.8 KB
2D CAD 英文 2015年1月7日 2015年1月7日
2D CAD for MGate MB3270 TOP
145.2 KB
2D CAD 英文 2015年1月7日 2015年1月7日
Tech Note: How to Configure KingSCADA with MGate MB3000
2.7 MB
技术说明 英文 v1.0 2015年1月6日 2015年1月6日
Tech Note: How to Configure WinCC with MGate MB3000
3.5 MB
技术说明 英文 v1.0 2015年1月6日 2015年1月6日

可用型号 (18)

显示图片

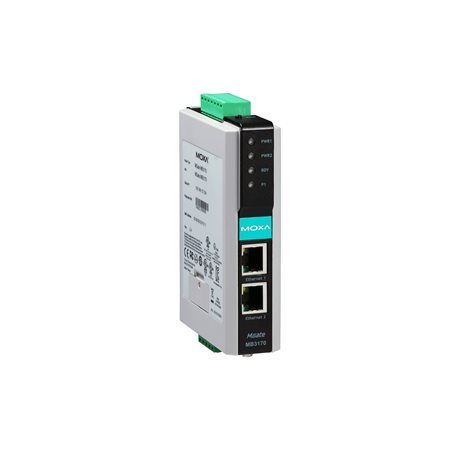

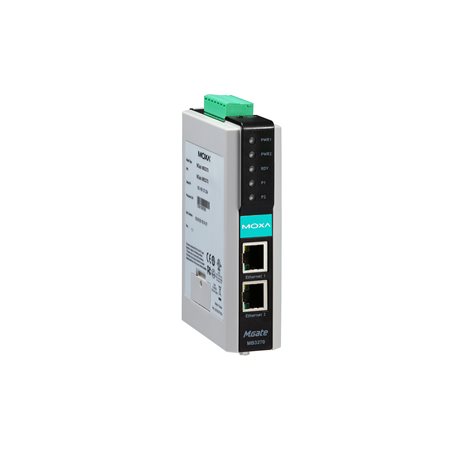

moxa-mgate-mb3170-image.jpg | MoxaMGate MB3170moxa-mgate-mb3170i-image.jpg | MoxaMGate MB3170Imoxa-mgate-mb3270-image.jpg | MoxaMGate MB3270moxa-mgate-mb3270i-image.jpg | MoxaMGate MB3270I
以太网2 x RJ452 x RJ452 x RJ452 x RJ45
串口数量1122
串口标准RS-232/422/485RS-232/422/485RS-232/422/485RS-232/422/485
串口隔离保护2 kV2 kV
工作温度0 to 60°C0 to 60°C0 to 60°C0 to 60°C
添加到报价查看收藏夹添加到报价查看收藏夹添加到报价查看收藏夹添加到报价查看收藏夹
moxa-mgate-mb3170-t-image.jpg | MoxaMGate MB3170-Tmoxa-mgate-mb3170i-t-image.jpg | MoxaMGate MB3170I-Tmoxa-mgate-mb3270-t-image.jpg | MoxaMGate MB3270-Tmoxa-mgate-mb3270i-t-image.jpg | MoxaMGate MB3270I-T
以太网2 x RJ452 x RJ452 x RJ452 x RJ45
串口数量1122
串口标准RS-232/422/485RS-232/422/485RS-232/422/485RS-232/422/485
串口隔离保护2 kV2 kV
工作温度-40 to 75°C-40 to 75°C-40 to 75°C-40 to 75°C
添加到报价查看收藏夹添加到报价查看收藏夹添加到报价查看收藏夹添加到报价查看收藏夹

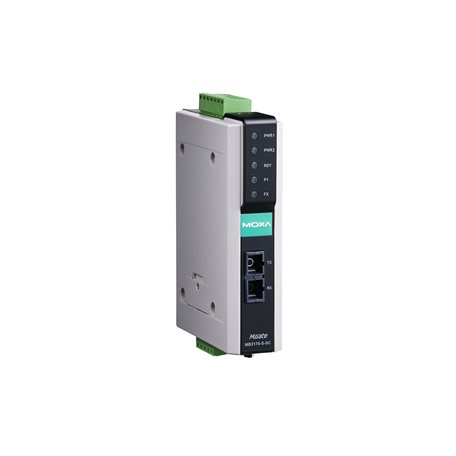

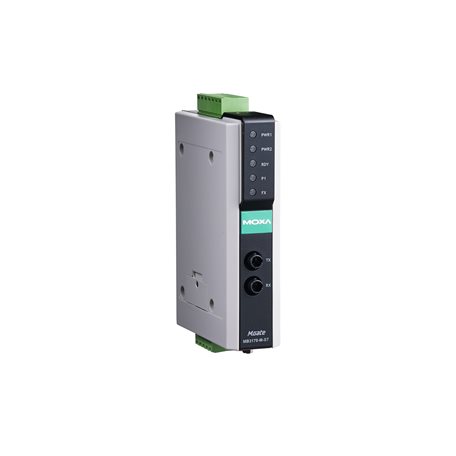

moxa-mgate-mb3170-m-sc-image.jpg | MoxaMGate MB3170-M-SCmoxa-mgate-mb3170-m-st-image.jpg | MoxaMGate MB3170-M-STmoxa-mgate-mb3170-s-sc-image.jpg | MoxaMGate MB3170-S-SCmoxa-mgate-mb3170i-m-sc-image.jpg | MoxaMGate MB3170I-M-SC
