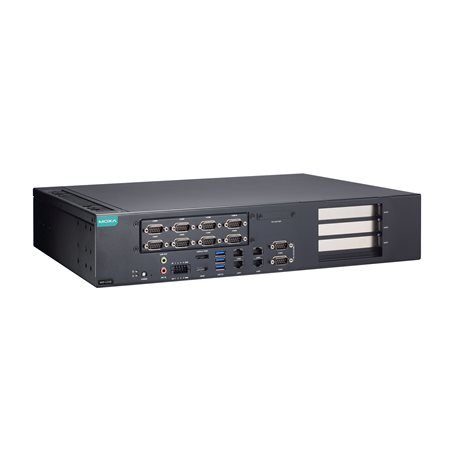

RKP-C220-C7-8C-T
RKP-C220 Series

Rackmount 2U computer with Intel® Core™ i7-13700TE processor, 4 LAN ports, 10 serial ports, 4 DIs, 4 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 1 M.2 M Key 2280 slot, 2 M.2 M Key 2242 slots, 12/24 VDC power input, -30 to 60°C operating temperature

Computer

  • CPU

    • RKP-C220-C9 models: Intel® Core™ i9-13900TE
      RKP-C220-C7 models: Intel® Core™ i7-13700TE
      RKP-C220-C5 models: Intel® Core™ i5-13500TE
      RKP-C220-C3 models: Intel® Core™ i3-13100TE

  • Chipset

    • Intel® Q670E

  • System Memory Slot

    • SODIMM DDR4 slots x 2, up to 64 GB max.

  • System Memory Pre-installed

    • 8 GB DDR4

  • Storage Slot

    • 2.5-inch SSD slot x 2 (SATA III interface, RAID 0/1 support)
      M.2 M Key 2280 socket x 1 (PCIe interface, NVMe support)
      M.2 M Key 2242 socket x 2 (PCIe interface, NVMe support, RAID 0/1 support)

  • Supported OS

    • OS images:
      - Windows 10 IoT Enterprise LTSC 2021 64-bit
      - Windows 11 IoT Enterprise LTSC 2024 64–bit
      - Windows 11 Professional 64-bit
      Windows drivers supported:
      - Windows 10 IoT Enterprise LTSC 2021 64-bit
      - Windows 11 IoT Enterprise LTSC 2024 64–bit
      - Windows 11 Professional 64-bit
      - Windows Server 2022
      Linux driver supported:
      - Debian 12 (kernel 6.10)
      - Ubuntu 22.04 LTS/ HWE (kernel 5.15)
      - RHEL 9.0 (kernel 5.14)

  • Graphics Controller

    • i9. i7, and i5 processor: Intel® UHD Graphics 770
      i3 processor: Intel® UHD Graphics 730
Computer Interface

  • Ethernet Ports

    • RKP-C220-C9-T/ RKP-C220-C7-T/ RKP-C220-C5-T/ RKP-C220-C3-T:
      Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
      Auto-sensing 10/100/1000/2500 Mbps ports (RJ45 connector) x 2
      RKP-C220-C9-4L-T/C7-4L-T/C5-4L-T/C3-4L-T:
      Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 6
      Auto-sensing 10/100/1000/2500 Mbps ports (RJ45 connector) x 2

  • Serial Channels

    • RKP-C220-C9-T/ RKP-C220-C7-T/ RKP-C220-C5-T/ RKP-C220-C3-T:
      RS-232/RS-422/RS-485-2W/RS-485-4W ports x 2, software selectable (DB9 male)
      RKP-C220-C9-8C-T/C7-8C-T/C5-8C-T/C3-8C-T:
      RS-232/RS-422/RS-485-2W/RS-485-4W ports x 10, software selectable (DB9 male)
      RKP-C220-C9-2CB6C-T/C7-2CB6C-T/C5-2CB6C-T/C3-2CB6C-T:
      RS-232/RS-422/RS-485-2W/RS-485-4W ports x 8, software selectable (DB9 male)

  • CAN Ports

    • RKP-C220-C9-2CB6C-T/C7-2CB6C-T/C5-2CB6C-T/C3-2CB6C-T:
      CAN Ports x 2

  • Expansion Slots

    • PCIe x16 (Gen 4) slot x 1
      PCIe x8 (4-lane, Gen 4) slot x 1
      PCIe x1 (Gen 4) slot x 1

  • USB 3.0

    • External: USB 3.0 hosts x 3, type-A connector
      Internal: USB 3.0 hosts x 1, type-A connector

  • Digital Input

    • DIs x 4

  • Digital Output

    • DOs x 4

  • Audio Input/Output

    • Mic-in x 1, 3.5 mm audio jack
      Line-out x 1, 3.5 mm audio jack

  • Video Output

    • HDMI 2.0b x 1, (type-A connector)
      DisplayPort 1.2 x 1

  • Buttons

    • Reset button
      Power button

  • TPM

    • TPM v2.0
Ethernet Interface

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Serial Interface

  • Baudrate

    • 50 bps to 115.2 kbps

  • Connector

    • DB9 male

  • Data Bits

    • 5, 6, 7, 8

  • Parity

    • None, Even, Odd, Space, Mark

  • Stop Bits

    • 1, 1.5, 2

  • Flow Control

    • RTS/CTS, XON/XOFF
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Digital Inputs

  • Connector

    • Spring-type Euroblock terminal

  • Sensor Type

    • Dry contact

  • Dry Contact

    • Logic 0: Short to GND
      Logic 1: Open
Digital Outputs

  • Connector

    • Spring-type Euroblock terminal

  • I/O Type

    • Sink

  • Current Rating

    • 200 mA per channel

  • Voltage

    • 0 to 24 VDC
CAN Interface

  • Connector

    • DB9 male

  • Protocols

    • CAN 2.0A
      CAN 2.0B

  • Signals

    • CAN_H, CAN_L, CAN_GND

  • Isolation

    • 2 kV (built-in)
Power Parameters

  • Input Voltage

    • 100 to 240 VAC

  • Power Consumption

    • 90 W
      (without graphics card)

  • Power Connector

    • IEC 60320 C16 inlet
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP20

  • Dimensions

    • 440 x 360 x 88.1 mm (17.32 x 14.17 x 3.47 in)

  • Weight

    • RKP-C220-C9-T/C7-T/C5-T/C3-T:
      8,913 g (19.65 Ib)
      RKP-C220-C9-4L-T/C7-4L-T/C5-4L-T/C3-4L-T:
      8,914 g (19.65 Ib)
      RKP-C220-C9-8C-T/C7-8C-T/C5-8C-T/C3-8C-T:
      9,196 g (20.27 Ib)
      RKP-C220-C9-2CB6C-T/C7-2CB6C-T/C5-2CB6C-T/C3-2CB6C-T models:
      9,062 g (19.98 Ib)

  • Installation

    • Rack mounting (standard 2U)
Environmental Limits

  • Operating Temperature

    • -30 to 60°C (-22 to 140°F)
      (without graphics card; refer to the graphics card operating temperature specification if applicable)

  • Storage Temperature

    • -40 to 70°C (-40 to 158°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A
      BSMI

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: Line-to-PE: 2 kV; Line-to-Line: 1 kV, Signal: 1 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz

  • Safety

    • UL 62368-1 (CB)
      BSMI

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-64

  • Package Drop Test

    • ISTA 1A

  • Package Vibration Test

    • ISTA 1A
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
Reliability

  • Time Source

    • Built-in RTC (real-time clock) with lithium-battery backup

  • Automatic Reboot Trigger

    • Built-in WDT
MTBF

  • Time

    • RKP-C220-C9-T/C7-T/C5-T/C3-T: 1,168,494 hrs
      RKP-C220-C9-8C-T/C7-8C-T/C5-8C-T/C3-8C-T: 993,182 hrs
      RKP-C220-C9-4L-T/C7-4L-T/C5-4L-T/C3-4L-T: 1,101,194 hrs
      RKP-C220-C9-2CB6C-T/C7-2CB6C-T/C5-2CB6C-T/C3-2CB6C-T: 995,157 hrs hrs

  • Standards

    • Telcordia (Bellcore), GB
Warranty
