x86 计算机

Moxa 工业级无风扇 X86 计算机通过了一系列严苛测试，严格遵循工业标准，即便在恶劣的工作环境中也能长久可靠运转，是重工业、变电站和电力设施、交通运输、油气以及海事应用的理想选择。

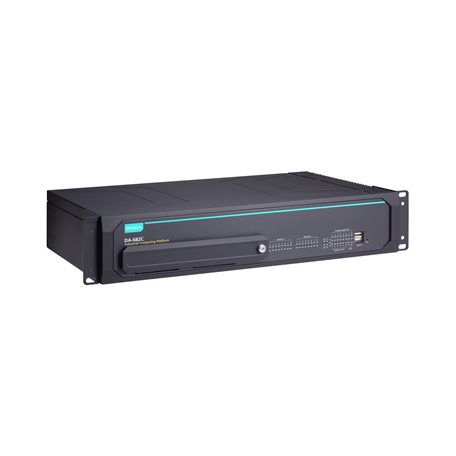

DA-682C-KL1-HH-T
DA-682C 系列

DA-682C-KL1-HH-T

Computer

  • CPU

    • Intel® Celeron® Processor 3965U (2M Cache, 2.20 GHz)

  • System Memory Slot

    • SODIMM DDR4 slot x 2

  • DRAM

    • 32 GB max. capacity (SODIMM x 2, each supporting 2133 MHz and 16 GB maximum per module)

  • Graphics Controller

    • Intel® HD Graphics 630

  • Storage Slot

    • 2.5-inch HDD/SSD slots x 2

  • Supported OS

    • Windows 10 Embedded IoT Ent 2019 LTSC 64-bit
      Linux Debian 9
      Note: OS available by CTOS
Computer Interface

  • Video Output

    • HDMI x 2, HDMI connector (type A)

  • USB 2.0

    • USB 2.0 hosts x 2, type-A connectors
      2 ports in the front

  • USB 3.0

    • USB 3.0 hosts x 3, type-A connectors
      3 ports in the rear

  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 6

  • Serial Ports

    • RS-232/422/485 ports x 2, software-selectable (terminal block)
LED Indicators

  • System

    • Power x 1
      Storage x 1
      Programmable x 8

  • Serial

    • 2 per port (Tx, Rx)

  • LAN

    • 2 per port (10/100/1000 Mbps)
Serial Interface

  • Baudrate

    • 300 bps to 115.2 kbps

  • ESD

    • 8 kV (level 4)

  • Isolation

    • 2 kV

  • Serial Standards

    • RS-232/422/485

  • Surge

    • 2 kV

  • Connector

    • Terminal block
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Power Parameters

  • Power Button

    • Reset button (front panel)
      ON/OFF (rear panel)

  • Power Consumption

    • 100 W (max.)
Physical Characteristics

  • Housing

    • Metal

  • Installation

    • 19-inch rack mounting

  • Weight

    • 9,900 g (21.82 lb)
Environmental Limits

  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-8: 20 A/m
      IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-11 DIPs

  • Power Substation

    • IEC 61850-3, IEEE 1613

  • Protection Relay

    • IEC 60255

  • Safety

    • UL 60950-1

  • Shock

    • IEC 60068-2-27, IEC 60870-2-2, IEC 61850-3 Edition 1.0
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 365,750 hrs

  • Standards

    • Telcordia SR332
Warranty
