WLAN 天线

Moxa 提供多种 WLAN 天线,安装简单,简化无线网络部署。

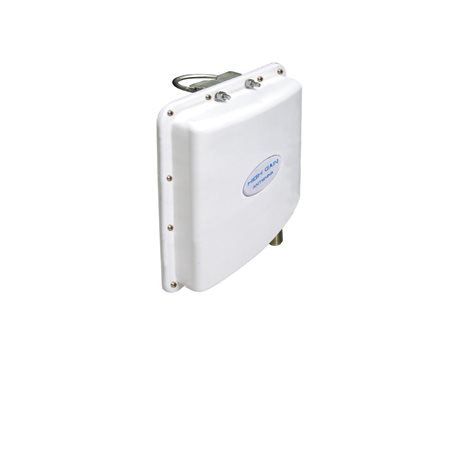

ANT-WSB-PNF-12-02
ANT-WSB-PNF-12-02 系列

12 dBi at 2.4 GHz, N-type (female), single-band directional antenna

Antenna Characteristics
  • Frequency

    • 2.4 to 2.4835 GHz
  • Antenna Type

    • Directional, Panel
  • Typical Antenna Gain

    • 12 dBi
  • Connector

    • N-type (female)
  • Impedance

    • 50 ohms
  • HPBW/Horizontal

    • 30°
  • HPBW/Vertical

    • 30°
  • V.S.W.R.

    • 1:2.0 max.
  • Power Handling

    • 10 W (max.)
  • Polarization

    • Vertical
Physical Characteristics
  • IP Rating

    • IP65
  • Dimensions

    • 260 x 260 x 44 mm (10.27 x 10.27 x 1.73 in)
  • Radome Color

    • White
  • Radome Material

    • PC and ABS
  • Installation

    • Pole mount
  • Weight

    • 796 g (1.75 lb)
Environmental Limits
  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
Warranty
