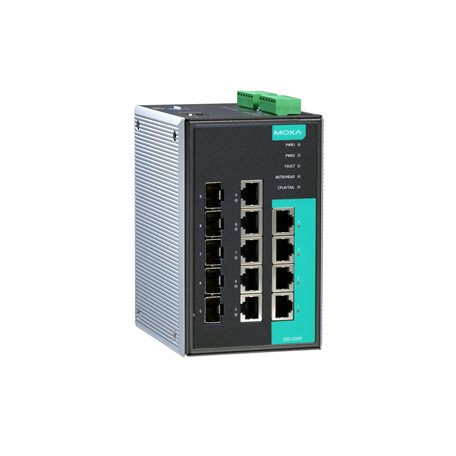

EDS-G509-T
EDS-G509 系列

Industrial full Gigabit Ethernet switch with 4 10/100/1000BaseT(X) ports, and 5 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, -40 to 75°C operating temperature

Input/Output Interface

  • Alarm Contact Channels

    • 2, Relay output with current carrying capacity of 1 A @ 24 VDC

  • Digital Input Channels

    • 2

  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA
Ethernet Interface

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 4
      Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection

  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)

    • 5

  • Standards

    • IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1s for Multiple Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for authentication
      IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3x for flow control
      IEEE 802.3z for 1000BaseX
Ethernet Software Features

  • Filter

    • 802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN

  • Industrial Protocols

    • EtherNet/IP, Modbus TCP

  • Management

    • Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

  • MIB

    • Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

  • Redundancy Protocols

    • Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2

  • Security

    • Broadcast storm protection, HTTPS/SSL, Port Lock, RADIUS, SSH, TACACS+, SNMPv3

  • Time Management

    • NTP Server/Client, SNTP
Switch Properties

  • IGMP Groups

    • 256

  • MAC Table Size

    • 8 K

  • Max. No. of VLANs

    • 64

  • Packet Buffer Size

    • 1 Mbits

  • Priority Queues

    • 4

  • VLAN ID Range

    • VID 1 to 4094
LED Interface

  • LED Indicators

    • PWR1, PWR2, FAULT, 10/100/1000M (TP port), 100/1000M (SFP port), MSTR/HEAD, CPLR/TAIL
Serial Interface

  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
DIP Switch Configuration

  • DIP Switches

    • Turbo Ring, Master, Coupler, Reserve
Power Parameters

  • Power Connector

    • 2 removable 6-contact terminal block(s)

  • Input Current

    • 0.69 A @ 24 VDC

  • Input Voltage

    • 12/24/48 VDC, Redundant dual inputs

  • Operating Voltage

    • 9.6 to 60 VDC

  • Overload Current Protection

    • Supported

  • Reverse Polarity Protection

    • Supported
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP30

  • Dimensions

    • 87.1 x 135 x 107 mm (3.43 x 5.31 x 4.21 in)

  • Weight

    • 1510 g (3.33 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • Freefall

    • IEC 60068-2-32

  • EMC

    • EN 55032/24

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Maritime

    • ABS, DNV-GL, LR, NK

  • Railway

    • EN 50121-4

  • Safety

    • EN 60950-1, UL 508

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-6
MTBF

  • Time

    • 598,659 hrs

  • Standards

    • Telcordia (Bellcore), GB
