MOXA

轨道无线 AP 接入控制器

零延迟漫游的目标是让客户端从一个接入点移动到另一个接入点时能够实现无缝切换，保持连接不中断。Moxa 提供先进的无线接入控制器和基于控制器的 Turbo Roaming 技术，可实现跨不同 IP 子网的毫秒级漫游。

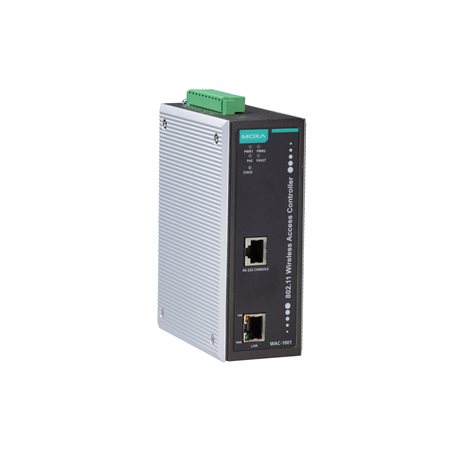

WAC-1001-T
WAC-1001 系列

Industrial wireless access controller, -40 to 75°C operating temperature

Input/Output Interface

  • Alarm Contact Channels

    • 1 relay output with current carrying capacity of 1 A @ 24 VDC
Ethernet Interface

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 1

  • Standards

    • IEEE 802.1X for authentication
      IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3af for PoE
      IEEE 802.3u for 100BaseT(X)

  • Total Port Count

    • 1

  • Highest Speed

    • 1G

  • Connections

    • PoE
Ethernet Software Features

  • Management

    • IPv4, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, TFTP, Web Console, Wireless Search Utility

  • Security

    • HTTPS/SSL, RADIUS, SSH

  • Time Management

    • NTP Client, SNTP
Serial Interface

  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

  • Flow Control

    • RTS/CTS, XON/XOFF

  • Parity

    • None, Even, Odd, Space, Mark
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Wireless Access Control

  • Controller Failover Mode

    • 1-on-1 hot backup

  • Handover Time

    • 50 ms

  • WLAN Products Supported

    • 110 radios
Power Parameters

  • Input Current

    • 0.6 A @ 12 VDC, 0.15 A @ 48 VDC

  • Input Voltage

    • 12 to 48 VDC, Redundant dual inputs

  • Source of Input Power

    • PoE (IEEE 802.3af)
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP30

  • Dimensions (without ears)

    • 52.85 x 135 x 105 mm (2.08 x 5.32 x 4.13 in)

  • Weight

    • 1,060 g (2.34 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/24

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Railway

    • EN 50121-4, EN 50155

  • Safety

    • EN 60950-1, IEC 60950-1, UL 60950-1
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 447,425 hrs

  • Standards

    • Telcordia SR332
Warranty
