MOXA

二层智能交换机

Moxa 智能交换机配置便捷、安装快速，可现场监测，大大简化日常任务。Moxa 二层网管型交换机专为实现快速互联、SCADA/HMI 监控和更高的可控性而设计，支持 PROFINET、Modbus、EtherNet/IP 等多种工业协议以及多种安装方式。

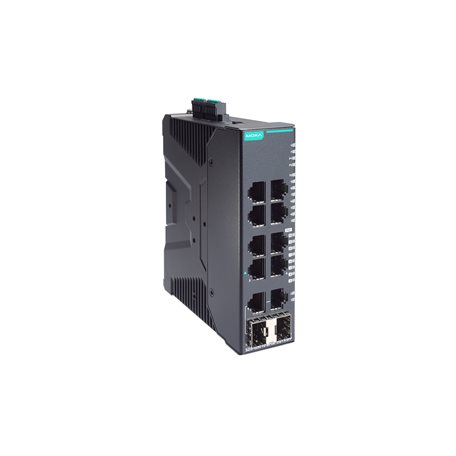

SDS-G3010-8PoE-2GTXSFP-T
SDS-G3010 系列

Compact industrial full Gigabit smart Ethernet switch with 8 PoE/PoE+ 10/100/1000BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, dual 12/24/48 VDC power inputs, -40 to 75°C operating temperature

Ethernet Interface

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 8 PoE model specifications are preliminary.

  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP)

    • 2 PoE model specifications are preliminary.

  • PoE Ports (10/100/1000BaseT(X), RJ45 connector)

    • 8 PoE model specifications are preliminary.

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3x for flow control
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1p for Class of Service
Ethernet Software Features

  • Industrial Protocols

    • EtherNet/IP
      Modbus TCP
      PROFINET IO Device

  • Management

    • Back Pressure Flow Control
      DHCP Client
      Fiber check
      Flow control
      IPv4/IPv6
      LLDP
      Port Mirror
      RMON
      SNMP Inform
      SNMPv1/v2c/v3
      Syslog

  • MIB

    • RFC1213
      Ethernet-like MIB
      IF MIB
      LLDP MIB
      Bridge MIB
      Q-BRIDGE MIB

  • Redundancy Protocols

    • RSTP
      STP
      MRP

  • Security

    • Broadcast storm protection
      HTTPS/SSL
      Port Lock
      SNMPv3
      Trust access control

  • Time Management

    • NTP Server/Client
      SNTP

  • Filter

    • 802.1Q VLAN
Rotary Switch Configuration

  • Industrial Profile

    • Indicator Mode
      0 No function enabled via DIP switch (Default)
      1 PROFINET profile enabled
      2 PROFINET profile and DHCP client enabled
      3 EtherNet/IP profile enabled
      4 EtherNet/IP profile and DHCP client enabled
      5 Modbus TCP profile enabled
      6 Modbus TCP profile and DHCP client enabled
      7-9 Reserved (currently performs the same behavior as indicator 0)
Switch Properties

  • MAC Table Size

    • 8 K

  • Max. No. of VLANs

    • 8

  • VLAN ID Range

    • VID 1 to 4094

  • Packet Buffer Size

    • 3 Mbits
LED Interface

  • LED Indicators

    • PWR1, PWR2, STATE, FAULT, 10/100M (TP Port), 1000M (TP port), 10/100/1000M (Gigabit Combo port), smart PoE LED (SDS-G3010-8PoE-2GTXSFP(-T) models only) PoE model specifications are preliminary.
USB Interface

  • Storage Port

    • USB Type A (for ABC-02 only)
Input/Output Interface

  • Alarm Contact Channels

    • 1
      Relay output with current carrying capacity of 1 A @ 24 VDC

  • Buttons

    • Reset button

  • Digital Input Channels

    • 1

  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA
Power Parameters

  • Connection

    • 2 removable 4-contact terminal block(s)

  • Input Voltage

    • 48 VDC

  • Operating Voltage

    • 44 to 57 VDC

  • Input Current

    • 0.28 max. A @ 48 VDC

  • Power Budget

    • Max. 240 W for total PD consumption @ 48 VDC input
      Max. 36 W for each PoE port

      Note: PoE model specifications are preliminary.

  • Power Consumption (Max.)

    • 13.15 W full loading without PDs’ consumption

  • Overload Current Protection

    • Supported

  • Reverse Polarity Protection

    • Supported
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP40

  • Dimensions

    • 36 x 135 x 111 mm (1.42 x 5.32 x 4.37 in)

  • Weight

    • 795 g (1.75 lb)

  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • Standard Models: -10 to 60°C (14 to 140°F)
      Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 800 MHz: 10 V/m; 800 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (1.2/50 μs), 1 kV (10/700 μs)
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Safety

    • EN IEC 62368-1
      UL 61010-2-201

  • Shock

    • IEC 60068-2-27

  • Freefall

    • IEC 60068-2-32

  • Vibration

    • IEC 60068-2-6
MTBF

  • Time

    • 2,150,066 hrs

  • Standards

    • Telcordia (Bellcore), GB
Warranty
