首页 产品 工业网络基础设施 以太网交换机 二层网管型交换机 PT-G510 系列IEC 61850-3 10 端口二层全千兆 PRP/HSR 网管型工业以太网交换机 PT-G510-8GSFP-PHR-HV-CT
MOXA

二层网管型交换机

Moxa 二层网管型交换机具备工业级可靠度、网络冗余功能，安全特性符合 IEC 62443 标准。我们强化产品设计，以满足特定行业需求，符合多种行业认证，例如轨道应用的 EN 50155 标准相关的部分要求、电力自动化系统的 IEC 61850-3 标准、智能运输系统的 NEMA TS2等。

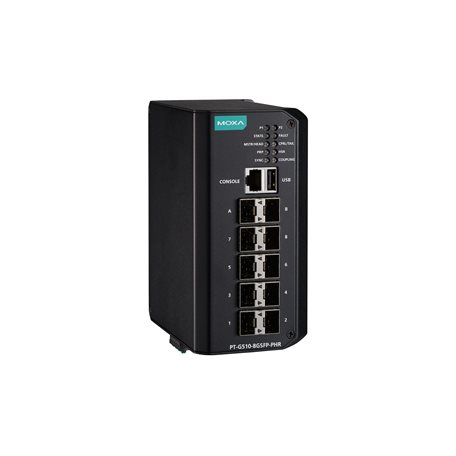

PT-G510-8GSFP-PHR-HV-CT
PT-G510 系列

PT-G510-8GSFP-PHR-HV-CT

Ethernet Interface

  • 100/1000BaseSFP Ports

    • 10

  • Standards

    • IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3z for 1000BaseX
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1X for authentication
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.3x for flow control
Ethernet Software Features

  • Management

    • HTTPS
      Dying Gasp
      Back Pressure Flow Control
      DHCP Option 66/67/82
      Fiber check
      Flow control
      LLDP
      Port Mirror
      SNMP Inform
      BOOTP
      DHCP Server/Client
      HTTP
      IPv4/IPv6
      RARP
      SMTP
      SNMPv1/v2c/v3
      Syslog
      Telnet
      TFTP

  • MIB

    • MIB-II
      Ethernet-like MIB
      Bridge MIB
      P-BRIDGE MIB
      Q-BRIDGE MIB
      RSTP MIB
      RMON MIB Groups 1, 2, 3, 9

  • Filter

    • IGMP v1/v2/v3
      GMRP
      GVRP
      802.1Q
      QinQ VLAN

  • Redundancy Protocols

    • Link Aggregation
      MSTP
      RSTP
      STP
      Turbo Chain
      Turbo Ring
      MRP
      HSR
      PRP
      Coupling
      RSTP grouping

  • Security

    • RADIUS
      TACACS+
      SSH
      Port Lock
      Broadcast storm protection
      MAB authentication
      Sticky MAC
      Access control list

  • Time Management

    • NTP Server/Client
      SNTP
      IEEE 1588v2 PTP (hardware-based)

  • Power Substation

    • GOOSE Check
      IEC 61850 QoS
      MMS
Switch Properties

  • Priority Queues

    • 8

  • Max. No. of VLANs

    • 256

  • VLAN ID Range

    • 1 to 4094

  • RSTP Grouping ID Range

    • 1 to 4094

  • IGMP Groups

    • 4096

  • MAC Table Size

    • 16 K

  • Packet Buffer Size

    • 12 Mbits
Serial Interface

  • Console Port

    • RS-232 (RJ45)
USB Interface

  • Storage Port

    • USB Type A
Power Parameters

  • Input Voltage

    • 110-220 VAC, 110-220 VDC (88 to 300 VDC, 85 to 264 VAC)

  • Input Current

    • 0.5 A @ 110-220 VAC
      0.3 A @ 110-220 VDC

  • Alarm Contact Channels

    • Resistive load: 1 A @ 24 VDC

  • Overload Current Protection

    • Supported

  • Reverse Polarity Protection

    • Supported
Physical Characteristics

  • IP Rating

    • IP30

  • Dimensions (without ears)

    • 74 x 148 x 120 mm (2.91 x 5.83 x 4.72 in)

  • Weight

    • 1476 g (3.25 lb)

  • Installation

    • DIN-rail mounting
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
      -40 to 85°C (-40 to 185°F) for 16 hrs (tested in accordance with IEC 60068-2-2)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
      EN 61000-4-11

  • Power Substation

    • IEC 61850-3 Edition 2.0 Class 2
      IEEE 1613

  • Railway

    • EN 50121-4

  • Safety

    • IEC 62368-1
      UL 62368-1
MTBF

  • Time

    • 688,584 hrs

  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
