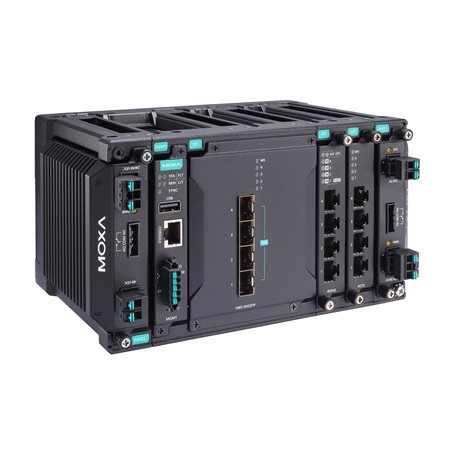

MDS-G4012-4XGS-T
MDS-G4012-4XGS 系列

Layer 2 full Gigabit modular managed Ethernet switch with 4 fixed 10GbE SFP+ slots, 2 slots for optional 4-port GE/FE modules, 2 slots for isolated power modules, up to 8 Gigabit Ethernet ports, -40 to 75°C operating temperature

Ethernet Interface

  • Pre-installed Modules

    • 4 embedded 10Gigabit ports

  • Module

    • 2 slots for optional 4-port FE/GE modules

  • Slot Combination

    • See the LM-7000H module series datasheet for more information.

      Note: The required power module depends on the choice of LM-7000H module. Refer to the following power/module combination requirements.

      LM-7000H non-PoE modules:
      Any power module

      LM-7000H PoE modules:
      PWR-HV-P48-A, PWR-LV-P48-A only

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3z for 1000BaseX
      IEEE 802.3x for flow control
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1X for authentication
Ethernet Software Features

  • Management

    • IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Port Mirror, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB

  • Filter

    • GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier

  • Redundancy Protocols

    • STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, Loop Protection, MSTP

  • Security

    • Broadcast storm protection, Rate Limit, Trust access control, Static Port Lock, MAC Sticky, HTTPS/SSL, SSH, RADIUS, TACACS+, Login and Password Policy, Secure Boot, MAC Authentication Bypass, Access control list

  • Time Management

    • SNTP, IEEE 1588v2 PTP (hardware-based), NTP Server/Client, NTP Authentication

  • Protocols

    • IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog

  • MIB

    • P-BRIDGE MIB, Q-BRIDGE MIB, IEEE8021-SPANNING-TREE-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, LLDP-EXT-DOT1-MIB, LLDP-EXT-DOT3-MIB, SNMPv2-MIB, RMON MIB Groups 1, 2, 3, 9

  • Power Substation

    • MMS
Switch Properties

  • MAC Table Size

    • 16 K

  • Max. No. of VLANs

    • 256

  • VLAN ID Range

    • VID 1 to 4094

  • IGMP Groups

    • 1024

  • Priority Queues

    • 8

  • Packet Buffer Size

    • 12 Mbits
Serial Interface

  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
USB Interface

  • USB Connector

    • USB Type A
Input/Output Interface

  • Digital Input Channels

    • 1 (On MGMT Module)

  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA

  • Alarm Contact Channels

    • 3 (On MGMT, PWR1, PWR2 Module)
      Relay output with current carrying capacity of 2 A @ 30 VDC
Power Parameters

  • Input Voltage

    • With PWR-HV-P48–A installed:
      110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz, PoE: 48 VDC

      With PWR-LV-P48–A installed:
      24/48 VDC, PoE: 48 VDC

      With PWR-HV-NP installed
      110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz

      With PWR-LV-NP installed:
      24/48 VDC

  • Operating Voltage

    • With PWR-HV-P48–A installed:
      88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz, PoE: 46 to 57 VDC

      With PWR-LV-P48–A installed:
      18 to 72 VDC, PoE: 46 to 57 VDC

      With PWR-HV-NP installed:
      88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz

      With PWR-LV-NP installed:
      18 to 72 VDC

  • Input Current

    • With PWR-HV-P48–A/PWR-HV-NP installed:
      Max. 0.11 A @ 110 VDC
      Max. 0.06 A @ 220 VDC
      Max. 0.29 A @ 110 VAC
      Max. 0.18 A @ 220 VAC

      With PWR-LV-P48–A/PWR-LV-NP installed:
      Max. 0.53 A @ 24 VDC
      Max. 0.28 A @ 48 VDC

  • Overload Current Protection

    • Supported

  • Reverse Polarity Protection

    • Supported

  • Max. PoE Power Output per Port

    • 36 W

  • Total PoE Power Budget

    • Max. 360 W (with one power supply) for total PD consumption at 48 VDC input for PoE systems

      Max. 360 W (with one power supply) for total PD consumption at 53 to 57 VDC input for PoE+ systems

      Max. 720 W (with two power supplies) for total PD consumption at 48 VDC input for PoE systems

      Max. 720 W (with two power supplies) for total PD consumption at 53 to 57 VDC input for PoE+ systems
Physical Characteristics

  • IP Rating

    • IP40

  • Dimensions

    • 197 x 115 x 163.25 mm (7.76 x 4.53 x 6.43 in)
      212 x 115 x 163.25 mm (8.35 x 4.53 x 6.43 in) with dual PWR-HV-P48-A/PWR-LV-P48-A power modules installed

  • Weight

    • 3,030 g (6.68 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit), Rack mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • Safety

    • EN 62368-1, IEC 62368-1, UL 62368-1, IEC 60950-1, UL 61010-2-201, EN 61010-2-201

  • EMC

    • EN 55032/35, EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
      IEC 61000-4-11

  • Railway

    • EN 50121-4

  • Traffic Control

    • NEMA TS2

  • Shock

    • IEC 60068-2-27

  • Freefall

    • IEC 60068-2-31

  • Vibration

    • IEC 60068-2-6

  • Power Substation

    • IEC 61850-3, IEEE 1613
MTBF

  • Time

    • 794,532 hrs

  • Standards

    • Telcordia SR332
Warranty
