以太网转光纤接口转换器

Moxa 以太网转光纤接口转换器具备创新远程管理功能、工业级可靠性和灵活的模块化设计，适用任何工业环境。

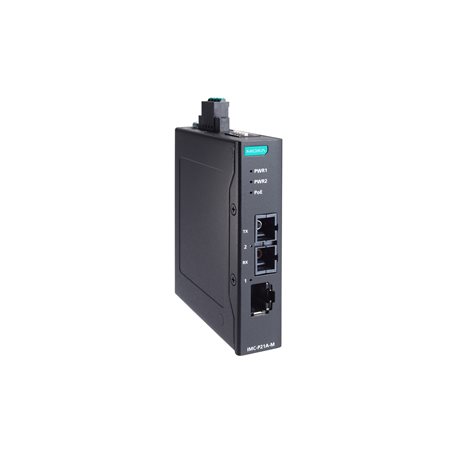

IMC-P21A-G2-M-SC
IMC-P21A-G2 系列

PoE+ industrial 10/100Base-T(X) to 100Base-FX media converter, multi-mode port with SC connector, -10 to 60°C operating temperature

Ethernet Interface

  • 100BaseFX Ports (multi-mode SC connector)

    • 1

  • PoE Ports (10/100BaseT(X), RJ45 connector)

    • 1

  • Optical Fiber

    • Fiber Module Optical Interface Multi-mode Single-mode
      Fiber Data Rate 100Base-FX
      Fiber Cable Requirements 62.5/125 µm 50/125 µm 9/125 µm
      OM1 OM2/OM3/OM4 OS2 (G.652)
      Typical Distance 2 km 5 km 40 km
      Wavelength Typical (nm) 1310
      TX Range (nm) 1260 to 1360 1280 to 1340
      RX Range (nm) 1100 to 1600 1100 to 1600
      Optical Power TX Range (dbm) -10 to -20 0 to -5
      RX Range (dbm) -3 to -32 -3 to -34
      Link Budget (dB) 12 29
      Dispersion Penalty (dB) 3 1
      Note:
      1. When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent
      damage caused by excessive optical power.
      2. Compute the “Typical Distance” of a specific fiber transceiver as follows:
      Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
      3. An OS1 cable can be used for single-mode models. However, an OS2 cable is required
      to achieve a transmission distance of 40 km.

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Power Parameters

  • Input Voltage

    • 44 to 57 VDC
      PoE+ output: > 52 VDC recommended
      PoE output: > 44 VDC recommended

  • Power Consumption

    • Max 828 mA

  • Overload Current Protection

    • Supported
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP40 (with I/O modules attached)

  • Dimensions

    • 90 x 73 x 20.3 mm (3.54 x 2.87 x 0.79 in)

  • Weight

    • Product Only: 212 g (0.47 lb)

  • Installation

    • DIN-rail mounting
Environmental Limits

  • Operating Temperature

    • -10 to 60°C (14 to 140°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz; Signal: 10 V
      IEC 61000-4-8 PFMF

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-6
      IEC 60068-2-64

  • Freefall

    • ISTA 1A
MTBF

  • Time

    • 6,708,861 hrs

  • Standards

    • Telcordia SR332
Warranty
