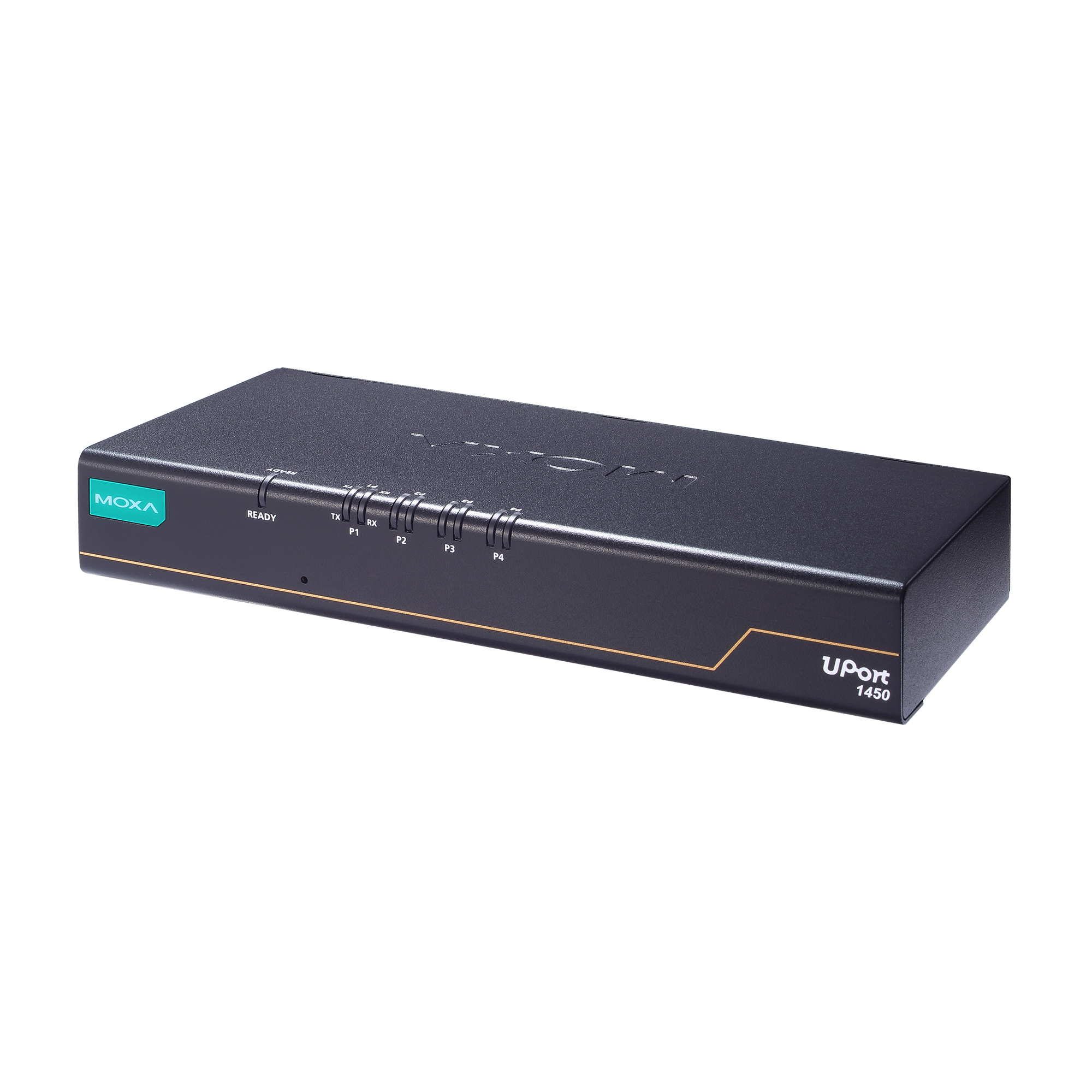

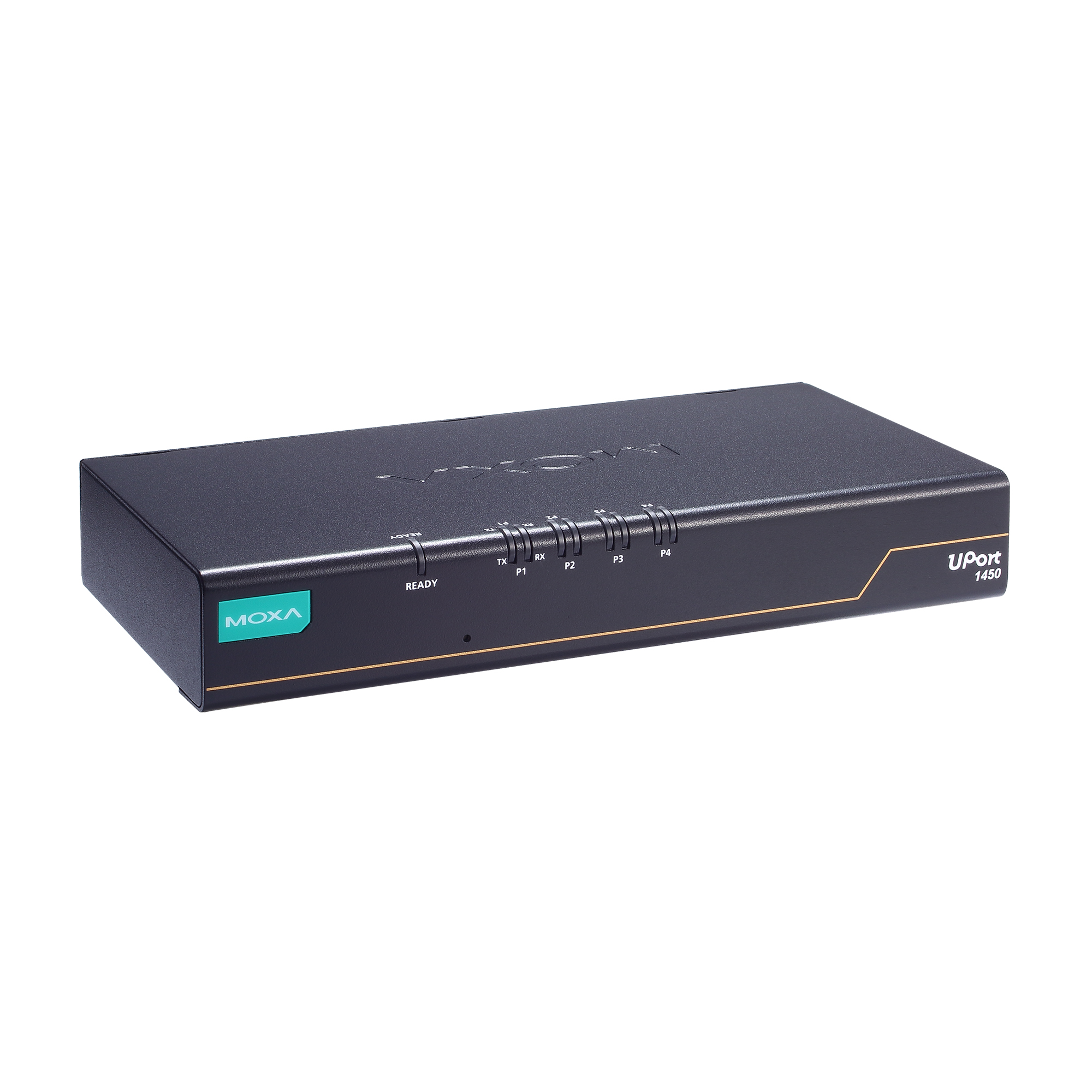

UPort 1400-G2 系列

4 端口 RS-232/422/485 USB 转串口转换器

moxa-uport-1400-g2-series-image-(1).jpg | Moxa
moxa-uport-1400-g2-series-image-1-(1).jpg | Moxa
moxa-uport-1400-g2-series-image-2-(1).jpg | Moxa
moxa-uport-1400-g2-series-image-3-(1).jpg | Moxa
moxa-uport-1400-g2-series-image-4-(1).jpg | Moxa
moxa-uport-1400-g2-series-image-5-(1).jpg | Moxa
moxa-uport-1400-g2-series-image-6-(1).jpg | Moxa

特点和优势

  • USB 3.2 SuperSpeed 功能
  • 512 字节片上 FIFO 缓存和流量控制可增强性能
  • 支持多种操作系统驱动程序,包括 Windows、Linux 和 UNIX
  • 波特率 50 bps 至 921.6 kbps(支持非标准波特率)

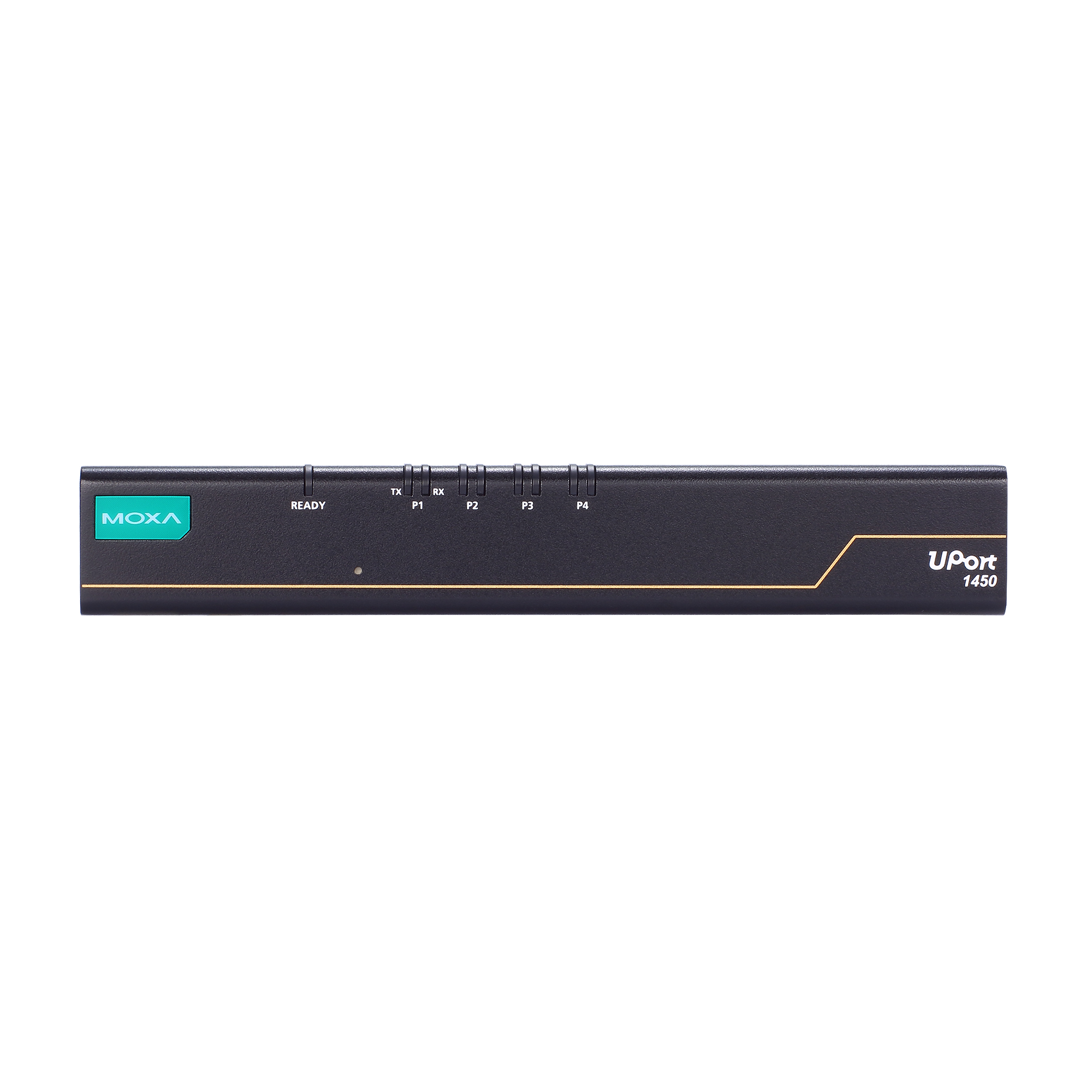

  • 位于边缘的双面 LED 能在任一方向显示电源、TX 和 RX 状态
  • 闩锁式 USB 线缆设计,确保连接更加稳固
  • -40 至 75°C(-40 至 167°F)宽温型号可选
  • 带 2 kV 光电隔离保护的串口(适用于“-I”型号)

认证

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-kc-certification-logo-image.png | Moxa

联系销售人员

介绍

UPort® 1400-G2 系列 USB 转串口转换器非常适合需要串口扩展的笔记本电脑或工作站计算机。对于需要在现场连接不同串行设备或需要单独的接口转换器来连接没有标准 COM 端口或 DB9 连接器的设备的计算机来说,它们是必不可少的。计算机还配备了 USB 电缆,该电缆具有闩锁和螺丝锁,可确保 UPort 和计算机之间的连接更加安全。UPort® 1400-G2 系列可将 USB 转换为 RS-232/422/485。所有型号均兼容传统串口设备,适用于仪器仪表和零售行业应用。



  • USB 标准

    USB 3.2 Gen 1
    兼容 USB 1.1/2.0

  • 速率

    5 Gbps、480 Mbps、12 Mbps

  • USB 端口数量

    1

  • USB 接头

    USB Type B

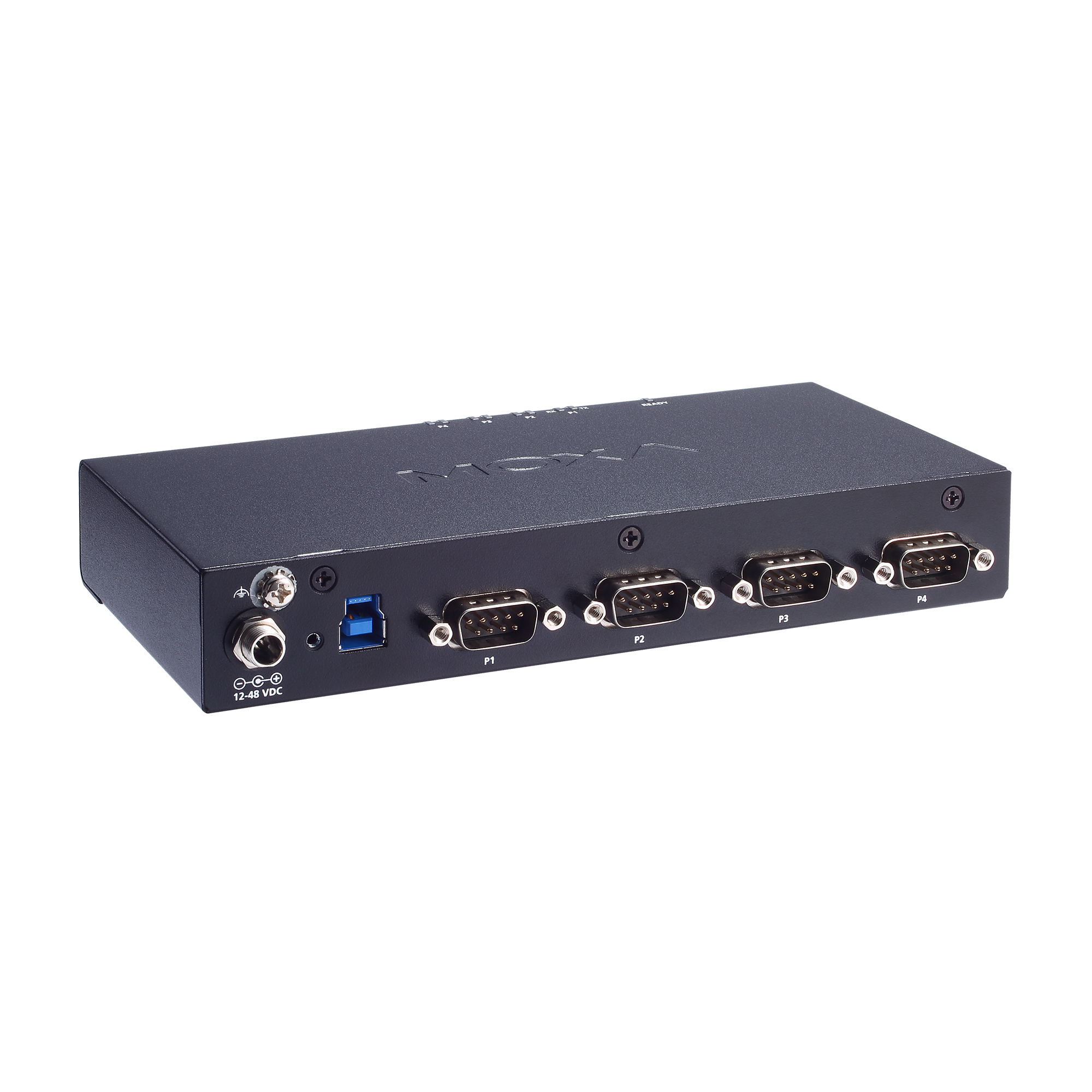

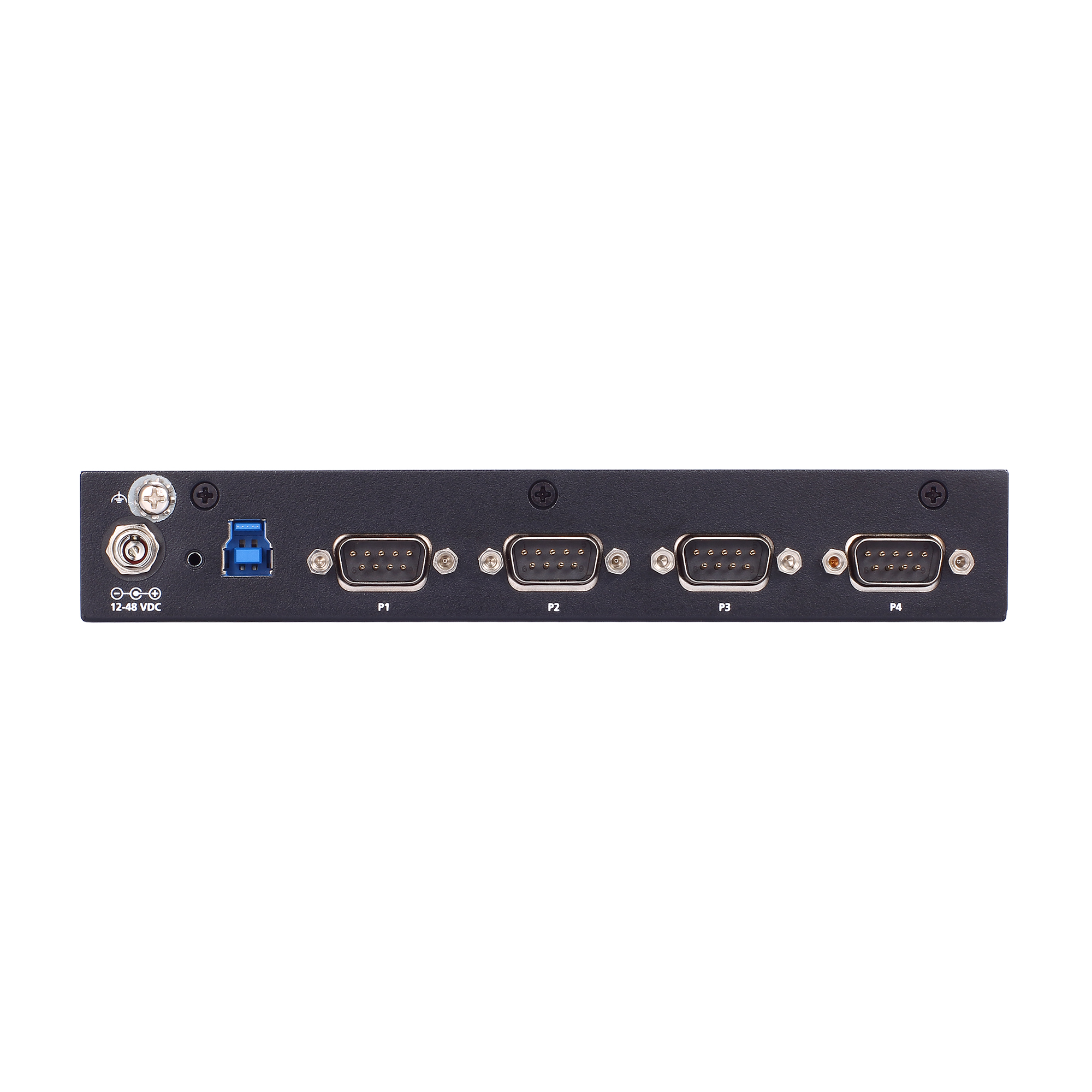

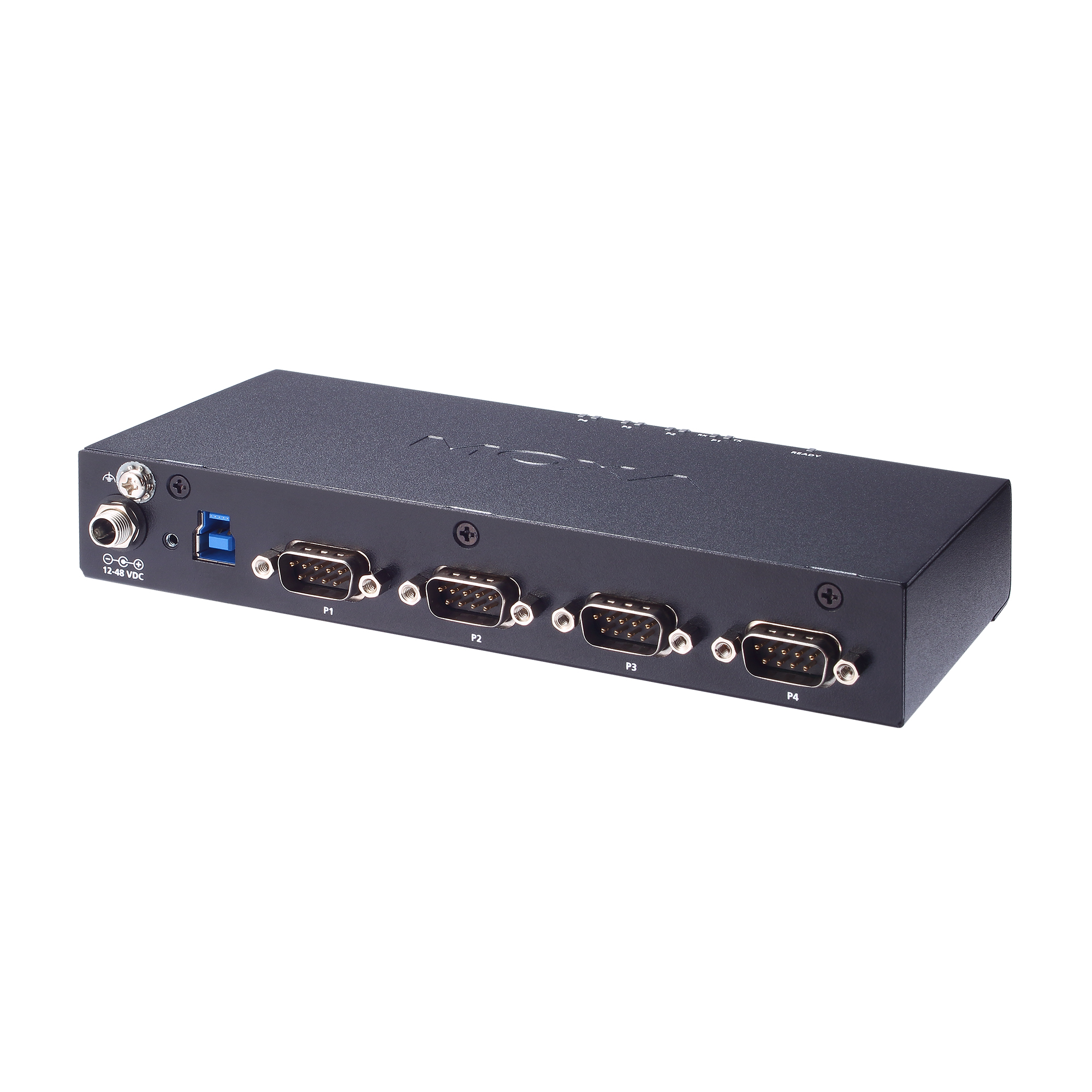

  • 接头

    DB9 公头

  • 端口数量

    4

  • 串口标准

    RS-232:UPort 1410-G2
    RS-232/422/485:所有其他型号

  • FIFO

    512 bytes

  • 波特率

    50 bps 至 921.6 kbps(支持非标准波特率)

  • 校验位

    无、偶、奇、Space、Mark

  • 数据位

    5、6、7、8

  • 停止位

    1、1.5、2

  • 流量控制

    RTS/CTS、XON/XOFF

  • RS-485 数据流向控制

    自动数据方向控制 (ADDC)

  • RS-485 上拉电阻/下拉电阻

    1 kΩ,150 kΩ

  • RS-485 终端电阻

    120 Ω

  • 浪涌

    0.5 kV

  • 隔离保护

    2 kV(I 型号)

  • RS-232

    TxD、RxD、RTS、CTS、DTR、DSR、DCD、GND

  • RS-422

    Tx+、Tx-、Rx+、Rx-、GND

  • RS-485-4w

    Tx+、Tx-、Rx+、Rx-、GND

  • RS-485-2w

    Data+、Data-、GND

  • Windows 驱动程序

    Windows 11, 10, 8.1, 8 和 7
    Windows Server 2022, 2019, 2016, 2012 R2, 2012 和 2008 R2

  • Linux 驱动程序

    内核 6.x、5.x 和 4.x

  • Mac 驱动程序

    macOS 版本(英特尔 64):13、12、11 和 10.1x

  • 虚拟机

    VMware Fusion(macOS 13、12、11、10.1x、Intel 64 上的 Windows)
    VMWare ESXi(Linux 内核 4)
    平行桌面(macOS 13、12、11、10.1x、Intel 64 上的 Windows)

  • 基于 Arm® 的平台支持

    Linux 内核 6.x、5.x 和 4.x

  • Android API

    Android 3.1.x 及更高版本

  • 输入电压

    通过 USB 总线电源提供 5 VDC 或通过外部电源适配器提供 12 至 48 VDC

  • 输入电流

    UPort 1410-G2:183 mA @ USB 2.0、370 mA @ USB 3.2、200 mA @ 12 VDC
    UPort 1450-G2 型号:266 mA @ USB 2.0、452 mA @ USB 3.2、240 mA @ 12 VDC
    UPort 1450I-G2 型号:445 mA @ USB 2.0、633 mA @ USB 3.2、340 mA @ 12 VDC

  • 外壳

    金属

  • 尺寸

    185 x 30 x 90.6 mm (7.28 x 1.18 x 3.57 in)

  • 重量

    UPort 1410-G2:359 g (0.79 lb)
    UPort 1450-G2 型号:373 g (0.82 lb)
    UPort 1450I-G2 型号:379 g (0.84 lb)

  • IP 等级

    IP20

  • 工作温度

    标准型号:0 至 60°C(32 至 140°F)-T 型号:-40 至 75°C(-40 至 167°F)

  • 存储温度

    -40 至 75°C(-40 至 167°F)

  • 相对湿度

    5 至 95%(非冷凝)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32,FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD:接触:4 kV;空气:8 kV
    IEC 61000-4-3 RS:80 MHz 至 1 GHz:3 V/m
    IEC 61000-4-4 EFT:电源:1 kV
    IEC 61000-4-5 Surge:电源:1 kV,信号:0.5 kV
    IEC 61000-4-6 CS:3 V;150 kHz 至 80 MHz
    IEC 61000-4-8 PFMF

  • 安全

    IEC 62368-1
    EN 62368-1
    UL 62368-1 (CB)
    KC

  • 绿色产品

    RoHS、CRoHS、WEEE

  • 冲击

    IEC 60068-2-27

  • 振动

    IEC 60068-2-6
    IEC 60068-2-64

  • 自由落体

    IEC 60068-2-31

  • 标准

    Telcordia 标准 SR332、Telcordia 第 2 期

  • 时间

    UPort 1410-G2:1,846,458 小时
    UPort 1450-G2 型号:1,431,860 小时
    UPort 1450I-G2 型号:1,140,587 小时

软件、固件和驱动程序

筛选

名称 类型 校驗和 版本 操作系统 发布日期
Driver for UPort 1200/1400/1600/G2 Series (Windows XP or Windows Server 2008 and prior, WHQL certified)
1.4 MB
驱动程序
SHA-512
v2.1
  • Windows 2000
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2024年3月7日 2024年3月7日 发布说明
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (Windows 11 and Windows Server 2022 and later, WHQL certified)
8.6 MB
驱动程序
SHA-512
v4.1
  • Windows
  • Windows 11
  • Windows Server 2022
2023年10月13日 2023年10月13日 发布说明
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
11.4 MB
驱动程序
SHA-512
v3.3
  • Windows
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2023年10月13日 2023年10月13日 发布说明
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (Linux kernel 5.x)
646.4 KB
驱动程序
SHA-512
v5.2
  • Linux Kernel 5.x
2023年10月13日 2023年10月13日 发布说明
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (macOS 10.12 to 13)
413.6 KB
驱动程序
SHA-512
v1.1
  • macOS 10.12
  • macOS 10.13
  • macOS 10.14
  • macOS 10.15
  • macOS 11
  • macOS 12
  • macOS 13
2023年10月13日 2023年10月13日 发布说明
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (Linux kernel 6.x)
644.1 KB
驱动程序
SHA-512
v6.1
  • Linux Kernel 6.x
2023年10月13日 2023年10月13日 发布说明
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (Linux kernel 4.x)
722.5 KB
驱动程序
SHA-512
v4.2
  • Linux Kernel 4.x
2023年10月13日 2023年10月13日 发布说明
PComm Lite Suite - Serial Communication Tool for Windows
3.5 MB
管理工具
SHA-512
v1.7
  • Windows
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
2023年6月19日 2023年6月19日 发布说明

支持文件

名称 类型 语言 版本 发布日期
FOSS Statement for Moxa PComm Lite Suite for Windows
108.5 KB
声明书 英文 v1.0 2025年2月7日 2025年2月7日
FOSS Statement for Moxa ViewCOM for Windows
139.9 KB
声明书 英文 v1.0 2025年2月7日 2025年2月7日
FOSS Statement for UPort 1200, 1400, 1600, 1200-G2, 1400-G2 and 1600-8-G2 Series macOS Driver
115.8 KB
声明书 英文 v1.0 2024年10月29日 2024年10月29日
FOSS Statement for UPort 1200, 1400, 1600, 1200-G2, 1400-G2 and 1600-8-G2 Series Windows Driver
187.6 KB
声明书 英文 v1.0 2024年10月29日 2024年10月29日
QIG for UPort 1400-G2 Series
3.2 MB
QIG 英文 v1.1 2024年3月5日 2024年3月5日
Manual for UPort 1200-G2/1400-G2/1600-8-G2 Series
10.3 MB
手册 英文 v2.0 2024年1月31日 2024年1月31日
Declaration of Conformity for UPort 1400-G2 Series
310.1 KB
声明书 英文 v1.0 2023年12月19日 2023年12月19日
UPort 1400-G2 系列产品资料
2.1 MB
产品资料表 中文 v1.1 2023年10月16日 2023年10月16日
Tech Note: UPort Driver Arm-based Platform Porting Guide
423.1 KB
技术说明 英文 v1.2 2023年10月13日 2023年10月13日

可用型号 (5)

显示图片
moxa-uport-1410-g2-image.jpg | MoxaUPort 1410-G2moxa-uport-1450-g2-image.jpg | MoxaUPort 1450-G2moxa-uport-1450-g2-t-image.jpg | MoxaUPort 1450-G2-Tmoxa-uport-1450i-g2-image.jpg | MoxaUPort 1450I-G2
串口标准RS-232RS-232/422/485RS-232/422/485RS-232/422/485
串口数量4444
隔离保护---2 kV
电源输入USB总线电源/电源适配器USB总线电源/电源适配器 USB总线电源/电源适配器USB总线电源/电源适配器
工作温度0 ~ 60°C0 ~ 60°C-40 ~ 75°C0 ~ 60°C
添加到报价查看收藏夹添加到报价查看收藏夹添加到报价查看收藏夹添加到报价查看收藏夹
moxa-uport-1450i-g2-t-image.jpg | MoxaUPort 1450I-G2-T
串口标准RS-232/422/485
串口数量4
隔离保护2 kV
电源输入USB总线电源/电源适配器
工作温度-40 ~ 75°C
