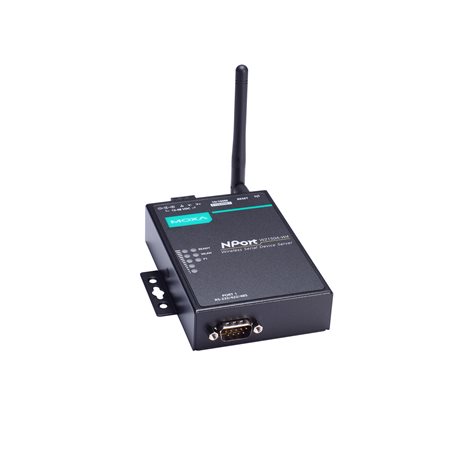

NPort W2150A-W4-JP
NPort W2150A-W4/W2250A-W4 系列

1-port RS-232/422/485 wireless device server with 802.11a/b/g/n WLAN JP band, JP plug, 12 to 48 VDC, 0 to 55°C operating temperature

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X)
Ethernet Software Features

  • Configuration Options

    • Web Console (HTTP/HTTPS)
      Windows Utility

  • Management

    • DHCP Option 82
      HTTP
      IPv4
      SMTP
      SNMPv1/v2c/v3
      Syslog
      Telnet
      Web Console

  • Windows Real COM Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/ x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows XP Embedded

  • Linux Real TTY Drivers

    • Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

  • Fixed TTY Drivers

    • SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Android API

    • Android 3.1.x and later

  • MIB

    • Device Settings MIB
      RFC1213, RFC1317

  • Security

    • HTTPS/SSL
      User Authentication Management: local database, RADIUS
      Secure Protocols: HTTPS (TLSv1.2), SSH, SNMPv3
      Cryptography: HMAC, SHA-1, SHA-256, SHA-384, RSA-1024, AES-128, AES-256

  • Time Management

    • NTP Client
      SNTP Client
WLAN Interface

  • WLAN Standards

    • 802.11a/b/g/n

  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

    • Typ. -91 @ 6 Mbps
      Typ. -74 @ 54 Mbps

  • Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

    • Typ. -92 dBm @ 1 Mbps
      Typ. -84 dBm @ 11 Mbps

  • Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

    • Typ. -91 dBm @ 6 Mbps
      Typ. -73 dBm @ 54 Mbps

  • Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

    • Typ. -89 dBm @ 6.5 Mbps (20 MHz)
      Typ. -71 dBm @ 72.2 Mbps (20 MHz)

  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

    • Typ. -89 dBm @ 6.5 Mbps (20 MHz)
      Typ. -71 dBm @ 72.2 Mbps (20 MHz)
      Typ. -85 dBm @ 13.5 Mbps (40 MHz)
      Typ. -67 dBm @ 150 Mbps (40 MHz)

  • Modulation Type

    • DSSS
      OFDM

  • Transmission Distance

    • Up to 100 meters (in open areas)

  • Transmission Rate

    • 802.11a/g: 54 Mbps
      802.11b: 11 Mbps
      802.11n: 6.5 to 150 Mbps

  • Transmitter Power for 802.11b

    • 16±1.5 dBm @ 1 Mbps
      16±1.5 dBm @ 11 Mbps

  • Transmitter Power for 802.11g

    • 16±1.5 dBm @ 6 Mbps
      14±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11a

    • 15±1.5 dBm @ 6 Mbps
      14±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (2.4 GHz)

    • 16 dBm @ 1.5 Mbps (6.5 MHz)
      12 dBm @ 1.5 Mbps (72.2 MHz)

  • Transmitter Power for 802.11n (5 GHz)

    • 15 dBm @ 1.5 Mbps (6.5 MHz)
      12 dBm @ 1.5 Mbps (150 MHz)

  • Frequency Band for CN (20 MHz operating channels)

    • 2.412 to 2.472 GHz (13 channels)
      5.180 to 5.240 GHz (4 channels)
      5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
      5.745 to 5.825 GHz (5 channels)

  • Frequency Band for EU (20 MHz operating channels)

    • 2.412 to 2.472 GHz (13 channels)
      5.180 to 5.240 GHz (4 channels)
      5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
      5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.

  • Frequency Band for JP (20 MHz operating channels)

    • 2.412 to 2.472 GHz (13 channels)
      5.180 to 5.240 GHz (4 channels)
      5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
      5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.

  • Frequency Band for US (20 MHz operating channels)

    • 2.412 to 2.462 GHz (11 channels)
      5.180 to 5.240 GHz (4 channels)
      5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
      5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
      5.745 to 5.825 GHz (5 channels)

  • Wireless Security

    • WEP encryption (64-bit and 128-bit)
      WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
      WPA/WPA2-Personal

  • WLAN Modes

    • Infrastructure mode
Antenna Characteristics

  • Connector

    • RP-SMA (male)

  • Antenna Type

    • Omni-directional
Security Functions

  • Authentication

    • Local database
      RADIUS

  • Encryption

    • AES-128
      AES-256
      HMAC
      RSA-1024
      SHA-1
      SHA-256
      SHA-384

  • Security Protocols

    • SNMPv3
      SSHv2
      HTTPS (TLS 1.2)

  • Wireless Security

    • WEP
      WPA/WPA2-Enterprise
      WPA/WPA2-Personal

  • Hardware-based Security

    • Secure Boot
Serial Interface

  • Connector

    • DB9 male

  • No. of Ports

    • 1

  • Serial Standards

    • RS-232
      RS-422
      RS-485

  • Operation Modes

    • Real COM mode
      TCP Server mode
      TCP Client mode
      UDP mode
      RFC2217 mode
      Pair Connection mode
      Ethernet Modem mode
      Disabled

  • Baudrate

    • 300 bps to 921.6 kbps

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Flow Control

    • None
      RTS/CTS
      XON/XOFF

  • RS-485 Data Direction Control

    • ADDC® (automatic data direction control)

  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    • 120 ohms

  • Surge

    • 1 kV
Physical Characteristics

  • Housing

    • Metal

  • Installation

    • Desktop
      DIN-rail mounting (with optional kit)
      Wall mounting

  • Dimensions (with ears, without antenna)

    • 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)

  • Dimensions (without ears or antenna)

    • 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)

  • Weight

    • 185 g (0.41 lb)

  • Antenna Length

    • 108 mm (4.25 in)
Environmental Limits

  • Operating Temperature

    • Standard Models: 0 to 55°C (32 to 131°F)
      Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Power Parameters

  • Input Current

    • 429 mA @ 12 VDC

  • Input Voltage

    • 12 to 48 VDC
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11

  • Radio Frequency

    • CE (ETSI EN 301 893, ETSI EN 300 328, ETSI EN 301489-1/-17), MIC, KC, RCM, WPC

  • Safety

    • UL 62368-1
      IEC 62368-1
Reliability

  • Alert Tools

    • RTC (real-time clock)

  • Automatic Reboot Trigger

    • Built-in WDT
MTBF

  • Time

    • 1,356,464 hrs

  • Standards

    • Telcordia SR332
