MOXA

工业级设备联网服务器

工业级设备联网服务器增强浪涌保护功能，拥有轨道交通车辆和轨旁等危险环境认证。此外，即使在油气和电力自动化的严苛环境下，所有设备都能够确保串口与以太网的可靠连接。

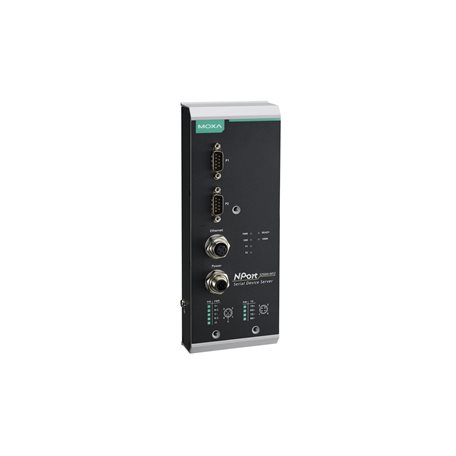

NPort 5250AI-M12-CT-T
NPort 5000AI-M12 系列

2-port RS-232/422/485 device server with M12 connector, M12 power input, conformal coating, -40 to 75°C operating temperature

Ethernet Interface

  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

    • 1
Ethernet Software Features

  • Configuration Options

    • Telnet Console, Web Console (HTTP/HTTPS), Windows Utility

  • Management

    • ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP

  • Filter

    • IGMP v1/v2

  • Windows Real COM Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Fixed TTY Drivers

    • SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Linux Real TTY Drivers

    • Kernel version: 2.4.x, 2.6.x, 3.x, 4.x

  • Android API

    • Android 3.1.x and later
Serial Interface

  • Connector

    • DB9 male

  • No. of Ports

    • 2

  • Serial Standards

    • RS-232, RS-422, RS-485

  • Baudrate

    • Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Flow Control

    • RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF

  • RS-485 Data Direction Control

    • ADDC® (automatic data direction control)
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND
Power Parameters

  • Input Current

    • 360 mA @ 12 VDC

  • Input Voltage

    • 12 to 48 VDC

  • Note

    • Compliant with EN 50155 on 24/48 VDC

  • Power Connector

    • M12 A-coded 5-pin male connector
Reliability

  • Automatic Reboot Trigger

    • Built-in WDT

  • Alert Tools

    • Built-in buzzer and RTC (real-time clock)
Physical Characteristics

  • Dimensions

    • 80 x 216.6 x 52.9 mm (3.15 x 8.53 x 2.08 in)

  • Weight

    • 686 g (1.51 lb)

  • Protection

    • PCB conformal coating
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/24

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
      IEC 61000-4-8 PFMF

  • Railway

    • EN 50121-4

  • Safety

    • UL 60950-1

  • Vibration

    • IEC 60068-2-6
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 639,622 hrs

  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
