MOXA

通用设备联网服务器

Moxa NPort 设备联网服务器让您的串口设备即刻联网。紧凑型服务器是将读卡器和支付终端等设备连接至基于 IP 的以太网网络的理想选择。

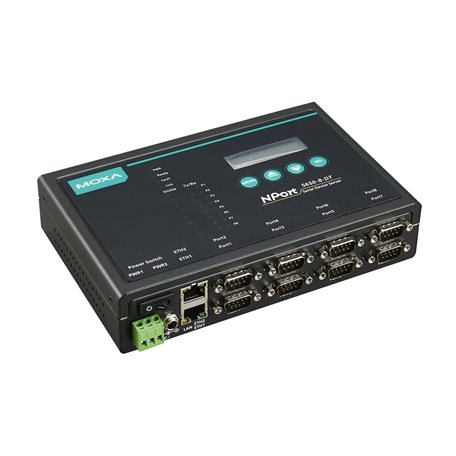

NPort 5650-8-DT
NPort 5600-DT 系列

8-port RS-232/422/485 desktop device server with DB9 male connectors and 48 VDC power input

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features

  • Configuration Options

    • Serial Console, Telnet Console, Web Console (HTTP/HTTPS), Windows Utility

  • Management

    • ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP

  • Filter

    • IGMP v1/v2

  • MIB

    • RFC1213, RFC1317

  • Time Management

    • SNTP

  • Windows Real COM Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Fixed TTY Drivers

    • SCO UNIX, SCO OpenServer, SCO UnixWare 7, Sun Solaris 10, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Linux Real TTY Drivers

    • Kernel version: 2.4.x, 2.6.x, 3.x, 4.x

  • Android API

    • Android 3.1.x and later
Serial Interface

  • Connector

    • DB9 male

  • No. of Ports

    • 8

  • Serial Standards

    • RS-232, RS-422, RS-485

  • Baudrate

    • Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k

  • Console Port

    • RS-232 (TxD, RxD, GND), 3-pin (19200, n, 8, 1)

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Flow Control

    • RTS/CTS, DTR/DSR, XON/XOFF

  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms

  • RS-485 Data Direction Control

    • ADDC® (automatic data direction control)

  • Terminator for RS-485

    • 120 ohms
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND
Power Parameters

  • Input Current

    • 615 mA @ 12 VDC

  • No. of Power Inputs

    • 2

  • Input Voltage

    • 12 to 48 VDC

  • Power Connector

    • 1 removable 3-contact terminal block(s)
      1 power input jack

  • Reverse Polarity Protection

    • Supported
Reliability

  • Automatic Reboot Trigger

    • Built-in WDT

  • Alert Tools

    • Built-in buzzer and RTC (real-time clock)
Physical Characteristics

  • Housing

    • Metal

  • Dimensions (with ears)

    • 229 x 46 x 125 mm (9.01 x 1.81 x 4.92 in)

  • Dimensions (without ears)

    • 197 x 44 x 125 mm (7.76 x 1.73 x 4.92 in)

  • Dimensions (with DIN-rail kit on bottom panel)

    • 197 x 53 x 125 mm (7.76 x 2.09 x 4.92 in)

  • Weight

    • Product only: 0.97 kg (1.918 lb)

  • Installation

    • Desktop, DIN-rail mounting (with optional kit), Wall mounting (with optional kit)

  • Interactive Interface

    • LCD panel display
      Push buttons for configuration
Environmental Limits

  • Operating Temperature

    • Standard models: 0 to 55°C (32 to 131°F)

  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/24

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11 DIPs

  • Safety

    • UL 60950-1
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 836,374 hrs

  • Standards

    • Telcordia (Bellcore) Standard
Warranty
