NPort 5100 系列

1 端口 RS-232/422/485 串口设备联网服务器

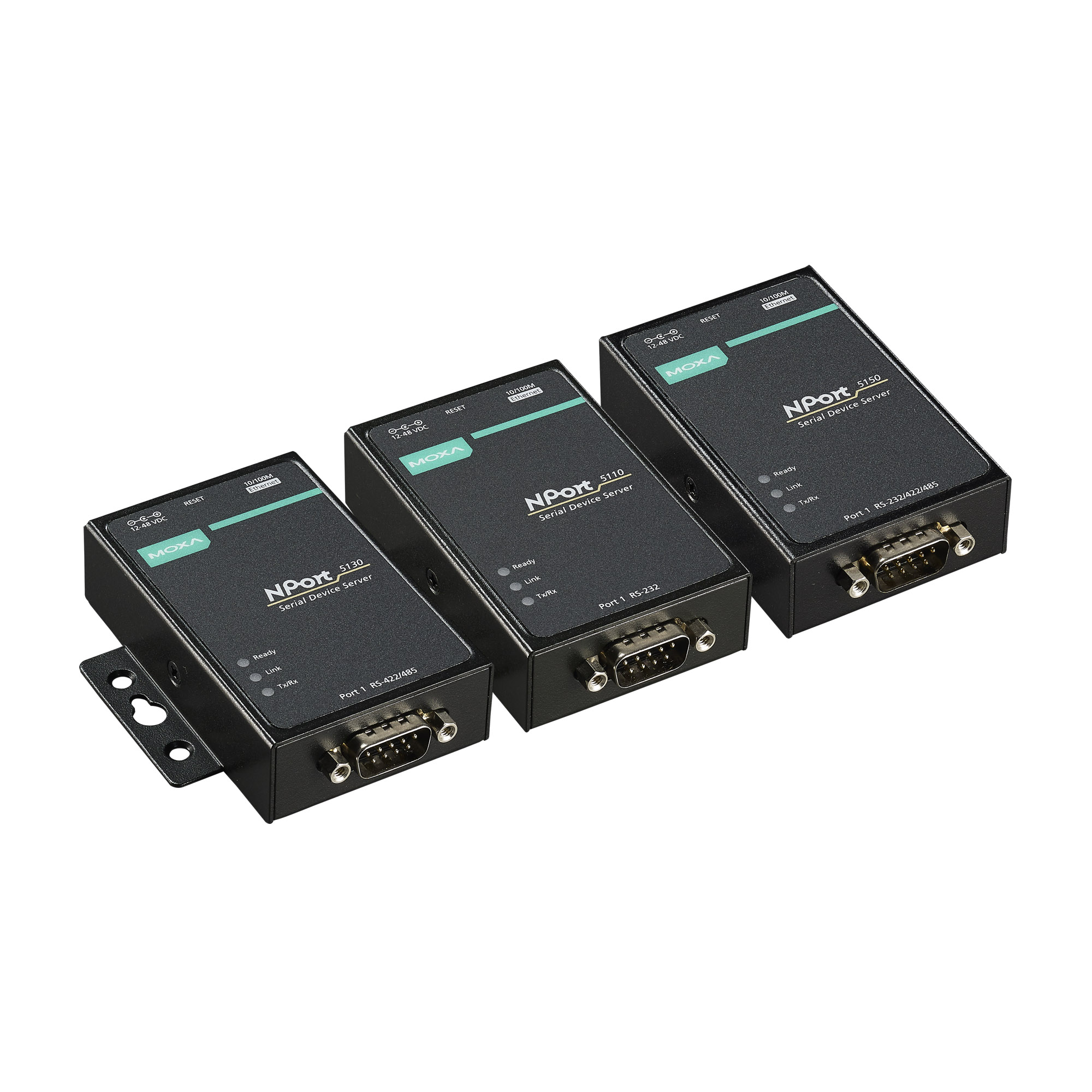

moxa-nport-5100-series-image-1-(1).jpg | Moxa

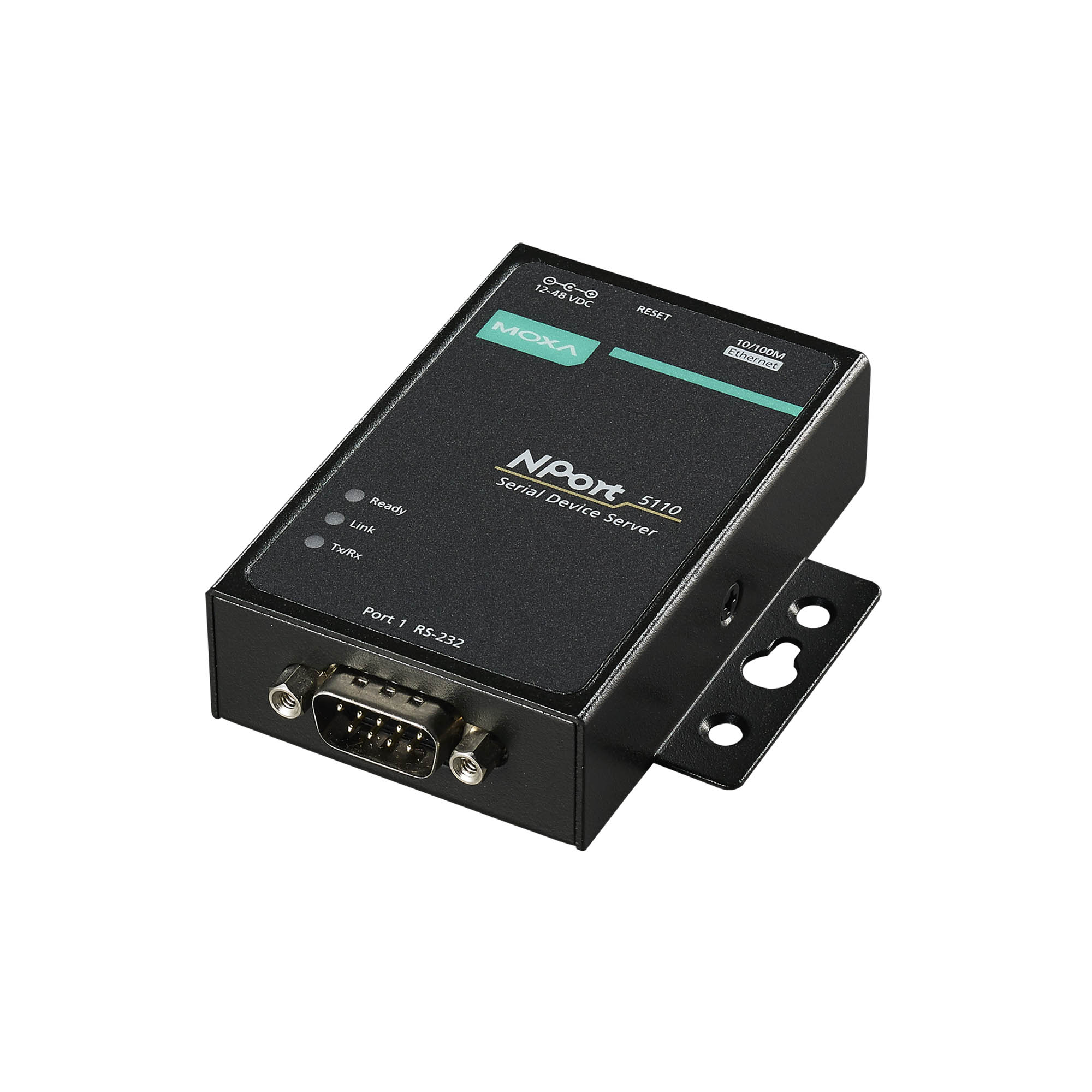

moxa-nport-5100-series-image-2-(1).jpg | Moxa

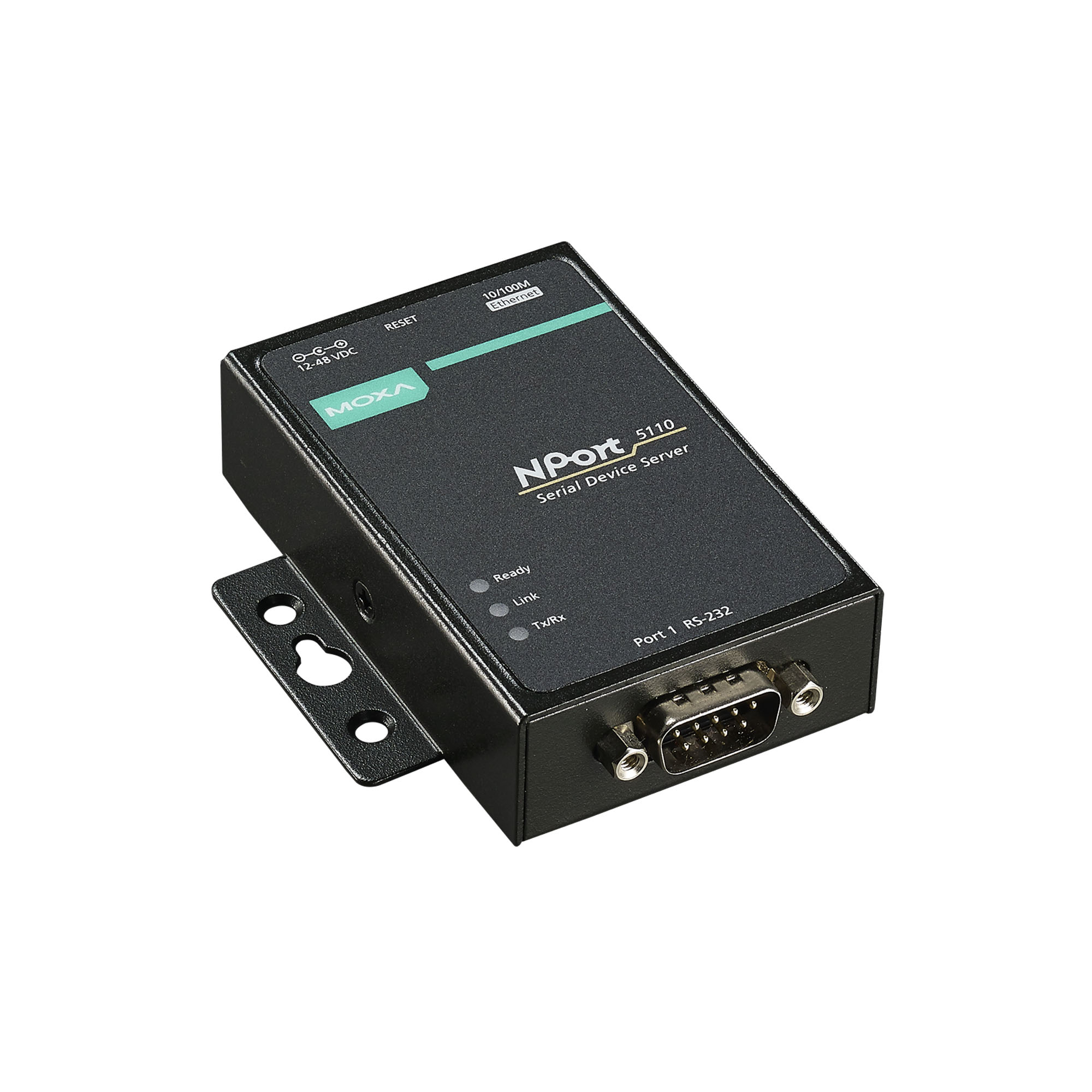

moxa-nport-5100-series-image-3-(1).jpg | Moxa

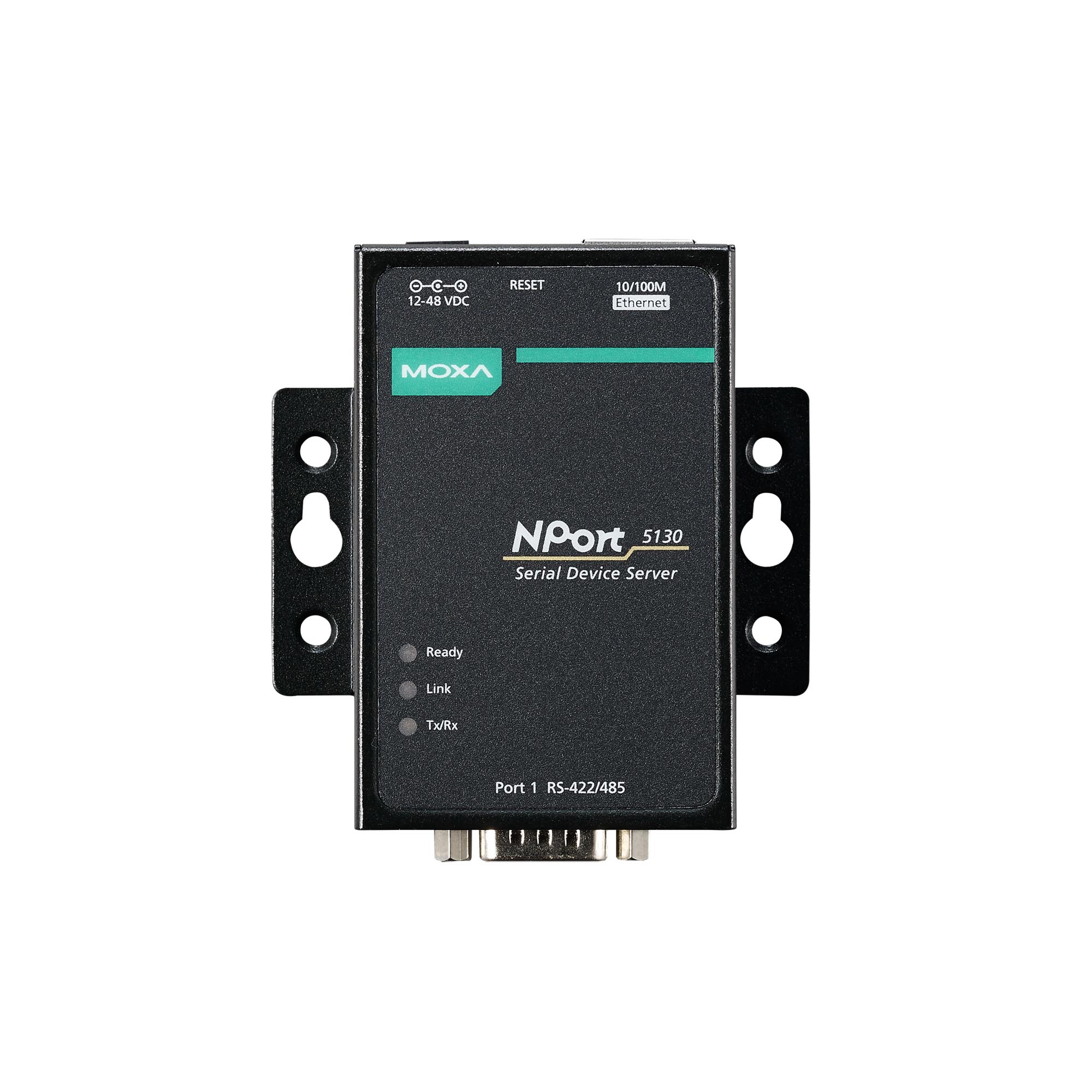

moxa-nport-5100-series-image-4-(1).jpg | Moxa

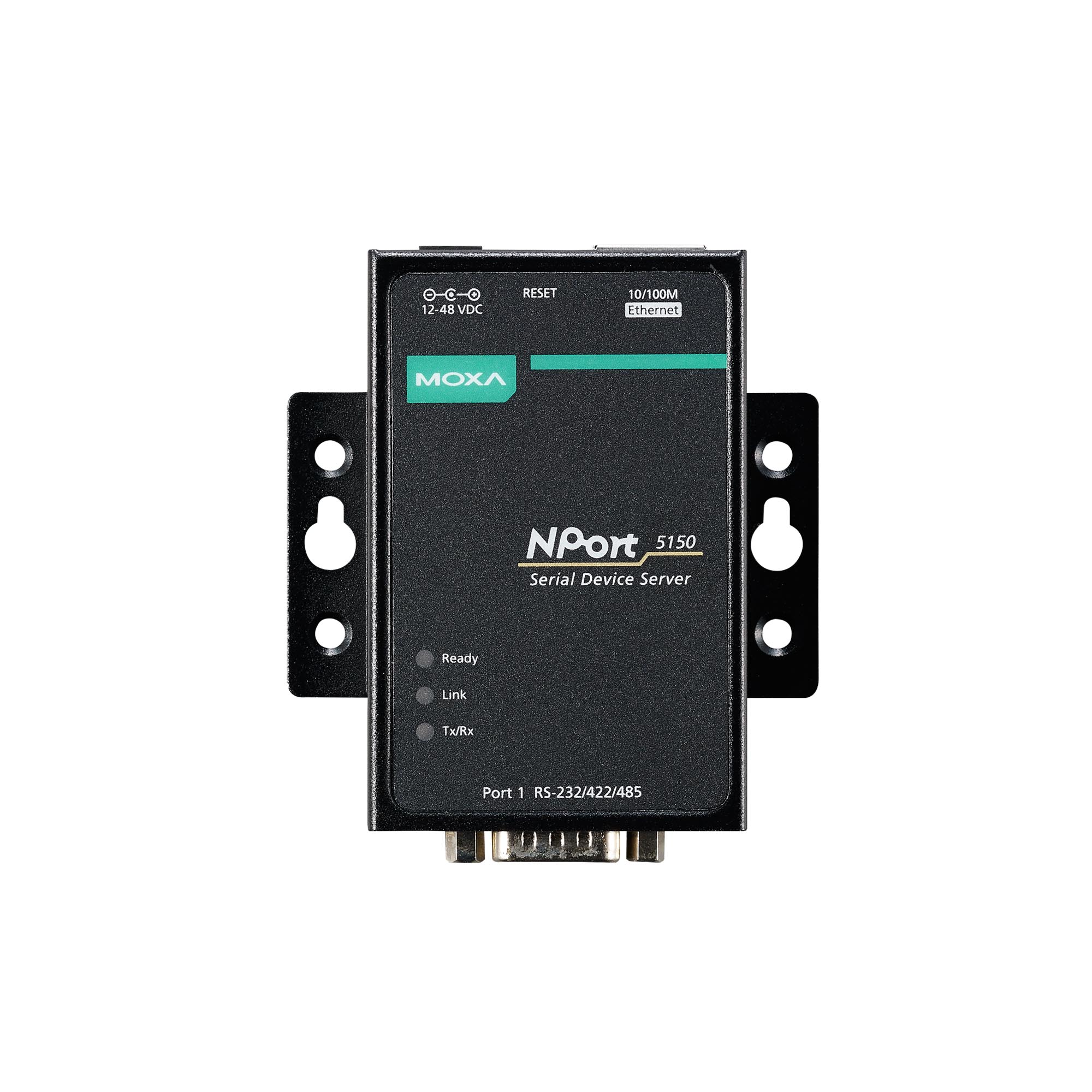

moxa-nport-5100-series-image-5-(1).jpg | Moxa

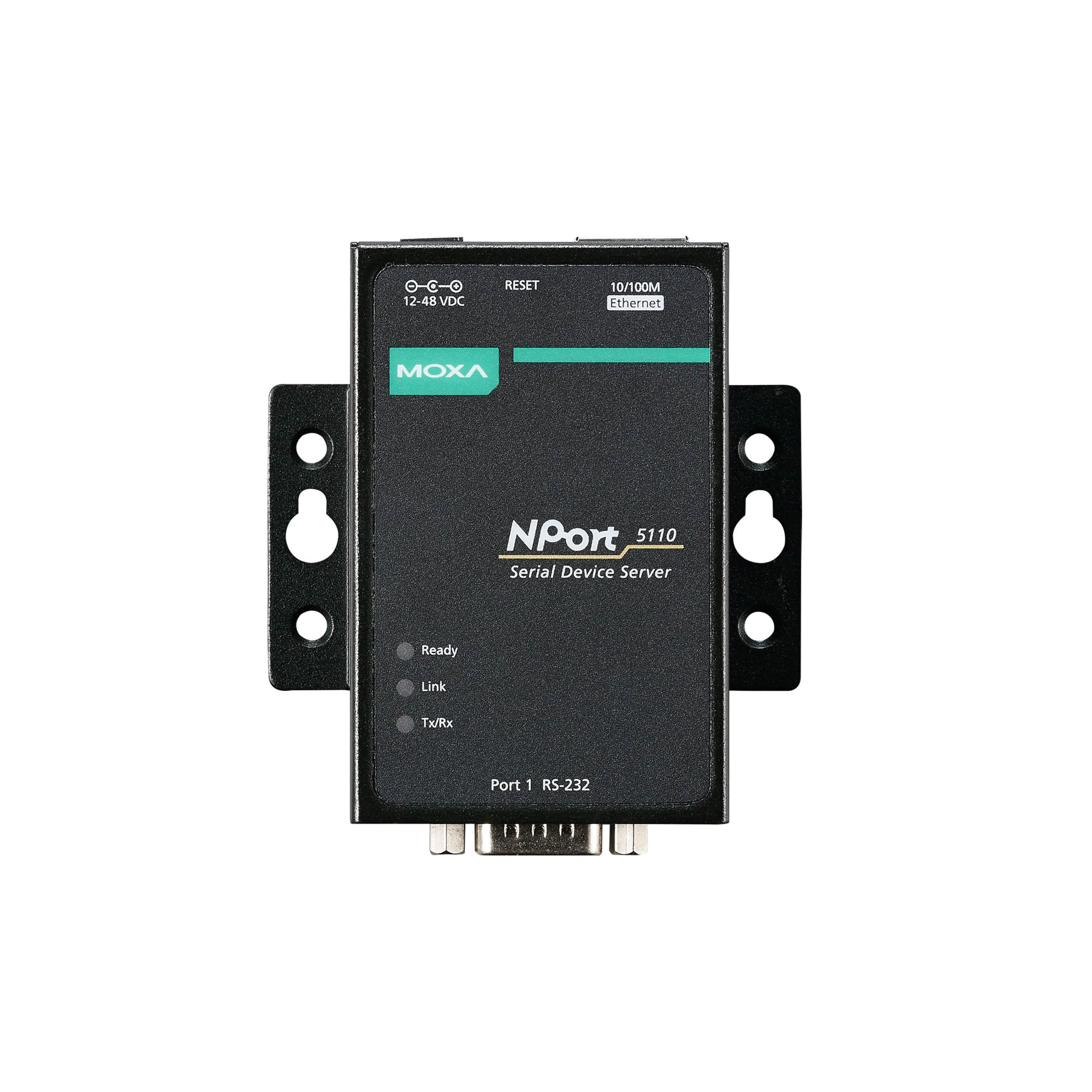

moxa-nport-5100-series-image-6-(1).jpg | Moxa

特点和优势

  • 紧凑型设计,易于安装
  • Real COM/TTY 驱动程序,可支持 Windows 和 Linux
  • 标准 TCP/IP 接口,支持通用 TCP 和 UDP 操作模式
  • 简单易用 Windows 管理工具,可配置多台设备联网服务器
  • 支持 SNMP MIB-II 网络管理协议
  • 通过 Telnet、Web 浏览器或 Windows 管理工具进行配置
  • RS-485 端口上拉/下拉电阻可调节

认证

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

联系销售人员

介绍

NPort® 5100 串口设备联网服务器助力串口设备轻松接入网络。这款设备联网服务器设计小巧,使其成为将读卡器和支付终端设备连接至基于 IP 的以太网局域网的理想选择。NPort 5100 设备联网服务器让您的 PC 软件可从任何地点通过网络直接访问串口设备。



高效经济的串口联网解决方案

使用串口设备联网服务器将传统串口设备连接至网络已经相当普及,用户期待设备联网服务器兼具成本效益和广泛的实用功能。NPort® 5100 系列支持 Microsoft 和 Linux 操作系统,并提供 5 年保修,是串口联网解决方案的更佳选择。



可调节终端电阻和上拉/下拉电阻

在某些严苛环境中,可能需要采用终端电阻来消除串口信号的反射。使用终端电阻时,必须正确设置上拉/下拉电阻,以避免电子信号受损。由于任何电阻值都无法兼容所有环境,NPort® 5100 设备联网服务器配有跳线,方便用户调节串口的终端电阻和上拉/下拉电阻的电阻值。



标准 TCP/IP 接口和多种操作模式

NPort®5100 设备联网服务器支持 TCP Server、TCP Client、UDP Server/Client、配对连接或以太网调制解调器模式,以确保与标准网络(例如:Winsock 或 BSD 套接字)的 API 软件兼容。



Real COM/TTY 驱动程序支持现有软件

NPort®5100 设备联网服务器提供 Real COM/TTY 驱动程序,可支持现有软件通过 COM/TTY 端口进行通信。安装和配置简单,使您的串口设备和 PC 可通过 TCP/IP 网络进行无缝通信。Moxa 的 Real COM/TTY 驱动程序让您保留原有软件,并充分享受联网串口设备带来的优势。



轻松排除故障

NPort® 5100 设备联网服务器支持 SNMP 协议,可通过网络监控各个设备的状态。每台设备可配置为在发生用户定义的错误时,可自动向 SNMP 管理器发送 trap 信息。如果用户没有采用 SNMP 管理器,还可选择发送 email 进行报警。用户可以使用 Moxa 的 Windows 管理工具或 web console 来设定触发条件。例如:热启动、冷启动或密码变更会触发警报。



  • 10/100BaseT(X) 端口(RJ45 接头)

    1

  • 电磁隔离保护

    1.5 kV(内置)

  • 配置选项

    Web Console (HTTP)、串口 Console(仅限 NPort 5110/5110-T/5150)、Telnet Console、Windows 管理工具

  • 管理

    DHCP Client、IPv4、SNTP、SMTP、SNMPv1、Telnet、DNS、HTTP、ARP、BOOTP、UDP、TCP/IP、ICMP

  • Windows Real COM 驱动程序

    Windows 95/98/ME/NT/2000、Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64)、Windows 2008 R2/2012/2012 R2 (x64)、Windows Embedded CE 5.0/6.0、Windows XP Embedded

  • Linux Real TTY 驱动程序

    内核版本: 2.4.x、2.6.x、3.x、4.x 和 5.x

  • Fixed TTY 驱动程序

    SCO UNIX、SCO OpenServer、UnixWare 7、QNX 4.25、QNX 6、Solaris 10、FreeBSD、AIX 5.x、HP-UX 11i、Mac OS X

  • Android API

    Android 3.1.x 及更高版本

  • MIB

    RFC1213、RFC1317

  • 接头

    DB9 公头

  • 端口数量

    1

  • 串口标准

    NPort 5110/5110-T:RS-232
    NPort 5130:RS-422、RS-485
    NPort 5150:RS-232、RS-422、RS-485

  • 操作模式

    禁用、以太网调制解调器、配对连接、Real COM、反向 Telnet、TCP Client、TCP server、UDP

  • 波特率

    NPort 5110/5110-T:110 bps 至 230.4 kbps
    NPort 5130/5150:50 bps 至 921.6 kbps

  • 数据位

    5、6、7、8

  • 停止位

    1、1.5、2

  • 校验位

    无、偶、奇、Space、Mark

  • 流量控制

    RTS/CTS(仅限 RS-232)、DTR/DSR(仅限 RS-232)、XON/XOFF

  • RS-485 上拉电阻/下拉电阻

    NPort 5130/5150:1 kΩ,150 kΩ

  • RS-485 数据流向控制

    NPort 5130/5150:ADDC®(数据流向自动控制)

  • RS-232

    TxD、RxD、RTS、CTS、DTR、DSR、DCD、GND

  • RS-422

    Tx+、Tx-、Rx+、Rx-、GND

  • RS-485-4w

    Tx+、Tx-、Rx+、Rx-、GND

  • RS-485-2w

    Data+、Data-、GND

  • 输入电流

    NPort 5110/5110-T:128 mA @ 12 VDC
    NPort 5130/5150:200 mA @ 12 VDC

  • 输入电压

    12 至 48 VDC

  • 电源输入数量

    1

  • 输入电源

    电源输入插口

  • 外壳

    金属

  • 尺寸(有挂耳)

    75.2 x 80 x 22 mm(2.96 x 3.15 x 0.87 英寸)

  • 尺寸(无挂耳)

    52 x 80 x 22 mm(2.05 x 3.15 x 0.87 英寸)

  • 重量

    340 g (0.75 lb)

  • 安装

    台式、导轨式安装(带可选套件)、壁挂式安装

  • 工作温度

    标准型号:0 至 55°C(32 至 131°F)
    宽温型号:-40 至 75°C(-40 至 167°F)

  • 存储温度(含包装)

    -40 至 75°C(-40 至 167°F)

  • 相对湿度

    5 至 95%(非冷凝)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD:接触:4 kV;空气:8 kV
    IEC 61000-4-3 RS:80 MHz 至 1 GHz:3 V/m
    IEC 61000-4-4 EFT:电源:1 kV;信号:1 kV
    IEC 61000-4-5 Surge:电源:1 kV
    IEC 61000-4-6 CS:150 kHz 至 80 MHz:3 V/m;信号:3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11 DIP

  • 安全

    UL 60950-1

  • 时间

    NPort 5110/5110-T:3,126,448 小时
    NPort 5130:2,836,863 小时
    NPort 5150:2,736,202 小时

  • 标准

    Telcordia (Bellcore) 标准 TR/SR
