集成式设备联网服务器

Moxa 的集成式串口设备联网服务器将多种功能合为一体，集网管型以太网交换机和设备联网服务器于一台设备之内。该设计可满足多种项目要求，只需很小空间即可存放所需设备，同时简化设备配置，减少设备运行、维护成本。

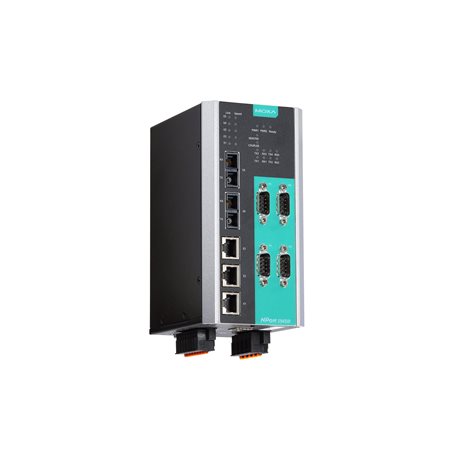

NPort S9450I-2S-SC-WV-T
NPort S9450I 系列

4-port RS-232/422/485 rugged device server, 3 10/100M Ethernet ports, 2 100M single-mode fiber ports with SC connectors, 24/48 VDC, -40 to 85°C operating temperature

Input/Output Interface

  • Alarm Contact Channels

    • 2, Resistive load: 1 A @ 24 VDC

  • Digital Input Channels

    • 2

  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +1 V for state 0
      Max. input current: 8 mA
Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 3

  • 100BaseFX Ports (single-mode SC connector)

    • 2

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)

  • Optical Fiber

    •

  • Optical Fiber

    •   100BaseFX
      Multi-Mode Single-Mode
      Fiber Cable Type OM1 50/125 µm G.652
      800 MHz x km
      Typical Distance 4 km 5 km 40 km
      Wavelength Typical (nm) 1300 1310
      TX Range (nm) 1260 to 1360 1280 to 1340
      RX Range (nm) 1100 to 1600 1100 to 1600
      Optical Power TX Range (dBm) -10 to -20 0 to -5
      RX Range (dBm) -3 to -32 -3 to -34
      Link Budget (dB) 12 29
      Dispersion Penalty (dB) 3 1
      Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.
      Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

  • Standards

    • IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for authentication
      IEEE 802.3 for 10BaseT
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
Switch Properties

  • IGMP Groups

    • 256

  • Max. No. of VLANs

    • 64

  • Priority Queues

    • 4

  • VLAN ID Range

    • VID 1 to 4094
Ethernet Software Features

  • Configuration Options

    • Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility

  • Management

    • DHCP Client, DHCP Option 82, HTTP, IEC 61850 MMS, IPv4, LLDP, Port Mirror, RARP, RMON, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Web Console

  • Filter

    • GMRP, GVRP, IGMP v1/v2

  • Windows Real COM Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    • Kernel version: 2.4.x, 2.6.x, 3.x, 4.x

  • Fixed TTY Drivers

    • SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Android API

    • Android 3.1.x and later

  • Industrial Protocols

    • Modbus TCP Server (Slave), DNP3 TCP Outstation (Slave)

  • Time Management

    • NTP Server/Client, SNTP

  • MIB

    • Bridge MIB, Device Settings MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RFC1213, RFC1317, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

  • Redundancy Protocols

    • RSTP, Turbo Chain, Turbo Ring v1, Turbo Ring v2

  • Security

    • HTTPS/SSL, Local Account Accessibility, TACACS+, RADIUS, SSH
Serial Interface

  • Connector

    • DB9 male

  • No. of Ports

    • 4

  • Serial Standards

    • RS-232, RS-422, RS-485

  • Operation Modes

    • Real COM mode, RFC2217 mode, TCP Client mode, TCP Server mode, UDP mode, Modbus mode, DNP3 mode, DNP3 Raw Socket mode, Disabled

  • Baudrate

    • 50 bps to 921.6 kbps (supports non-standard baudrates)

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Flow Control

    • None, RTS/CTS, XON/XOFF

  • Isolation

    • 2 kV

  • Surge

    • 4 kV

  • RS-485 Data Direction Control

    • ADDC® (automatic data direction control)

  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    • 120 ohms

  • Console Port

    • RS-232 (TxD, RxD, GND), 10-pin RJ45 (19200, n, 8, 1)
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND
DIP Switch Configuration

  • Ethernet Interface

    • Turbo Ring, Master, Coupler, Reserved
Modbus TCP

  • Max. No. of Client Connections

    • 32

  • Max. No. of Server Connections

    • 16
DNP3 (Transparent)

  • Max. No. of Master Connections

    • 16

  • Max. No. of Outstation Connections

    • 32
Power Parameters

  • No. of Power Inputs

    • 2

  • Power Connector

    • 1 removable 5-contact terminal block(s)

  • Reverse Polarity Protection

    • Supported

  • Input Current

    • 520 mA @ 24 VDC

  • Input Voltage

    • 24/48 VDC (18 to 72 VDC)
Physical Characteristics

  • Housing

    • Metal

  • Dimensions

    • 80 x 160 x 109 mm (3.15 x 6.30 x 4.29 in)

  • Weight

    • Product only: 2.54 kg (5.60 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 6 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11 DIPs

  • Environmental Testing

    • IEC 60068-2-2
      IEC 60068-2-14

  • Power Substation

    • IEC 61850-3, IEEE 1613

  • Hazardous Locations

    • UL/cUL Class I Division 2 Groups A/B/C/D

  • Safety

    • EN 61010-2-201, UL 61010-2-201

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-6, IEC 60068-2-64
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 347,436 hrs

  • Standards

    • Telcordia SR332
Warranty
