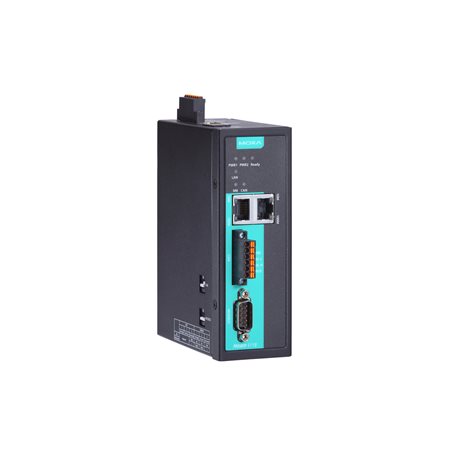

MGate 5118-T
MGate 5118 系列

1-port J1939 to Modbus/PROFINET/EtherNet/IP gateway, -40 to 75°C operating temperature

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2
      Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features

  • Industrial Protocols

    • EtherNet/IP Adapter (Slave), EtherNet/IP Scanner (Master), Modbus TCP Client (Master), Modbus TCP Server (Slave), PROFINET IO Device (Slave)

  • Configuration Options

    • Web Console (HTTP/HTTPS), Device Search Utility (DSU), Telnet Console

  • Management

    • ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client

  • MIB

    • RFC1213, RFC1317

  • Time Management

    • NTP Client
Serial Interface

  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

  • No. of Ports

    • 1

  • Connector

    • DB9 male

  • Serial Standards

    • RS-232/422/485

  • Baudrate

    • 50 bps to 921.6 kbps

  • Data Bits

    • 7, 8

  • Parity

    • None, Even, Odd, Space, Mark

  • Stop Bits

    • 1, 2

  • Flow Control

    • RTS Toggle (RS-232 only), RTS/CTS

  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    • 120 ohms

  • Isolation

    • 2 kV
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features

  • Configuration Options

    • Serial Console

  • Industrial Protocols

    • J1939, Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave
Modbus RTU/ASCII

  • Mode

    • Master, Slave

  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Commands

    • 128
Modbus TCP

  • Mode

    • Client, Server

  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Client Connections

    • 16

  • Max. No. of Server Connections

    • 32

  • Max. No. of Commands

    • 128
PROFINET

  • Mode

    • IO Device (Slave)

  • Max. No. of IO Controller Connections

    • 1 (for read/write)

  • Input Data Size

    • 512 bytes

  • Output Data Size

    • 512 bytes
EtherNet/IP

  • Mode

    • Scanner, Adapter

  • CIP Objects Supported

    • Identity, Message Router, Assembly, Connection Manager, TCP/IP interface, Ethernet link, Port

  • Max. No. of Scanner Connections

    • 1 (for read-only), 1 (for read/write)

  • Max. No. of Adapter Connections

    • 4

  • Input Data Size

    • 496 bytes

  • Output Data Size

    • 496 bytes
CAN Interface

  • Industrial Protocols

    • J1939

  • No. of Ports

    • 1

  • Connector

    • Spring-type Euroblock terminal

  • Baudrate

    • 250 kbps, 500 kbps

  • Terminator

    • 120 ohms

  • Isolation

    • 2 kV (built-in)
J1939

  • Max. No. of Commands

    • 256

  • Input Data Size

    • 2048 bytes

  • Output Data Size

    • 2048 bytes
Memory

  • microSD Slot

    • Up to 32 GB (SD 2.0 compatible)
Power Parameters

  • Input Voltage

    • 12 to 48 VDC

  • Input Current

    • 416 mA @ 12 VDC

  • Power Connector

    • Spring-type Euroblock terminal
Relays

  • Contact Current Rating

    • Resistive load: 2 A @ 30 VDC
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP30

  • Dimensions

    • 45.8 x 105 x 134 mm (1.8 x 4.13 x 5.28 in)

  • Weight

    • 589 g (1.30 lb)
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • Safety

    • EN 60950-1, UL 61010-2-201

  • EMC

    • EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
      IEC 61000-4-8 PFMF

  • Hazardous Locations

    • ATEX, Class I Division 2, IECEx

  • Freefall

    • IEC 60068-2-32

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-6, IEC 60068-2-64
MTBF

  • Time

    • 727,873 hrs

  • Standards

    • Telcordia SR332
Warranty
