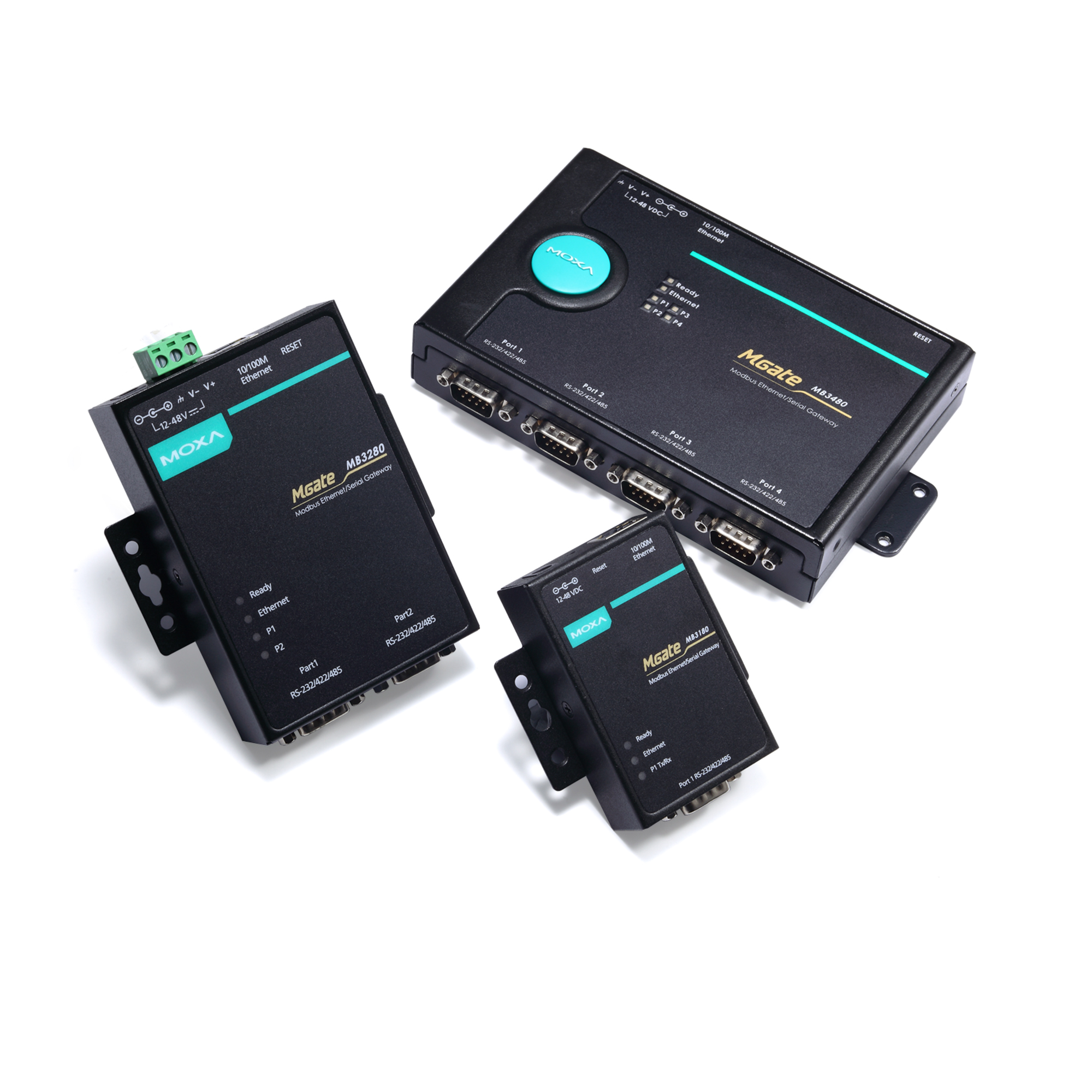

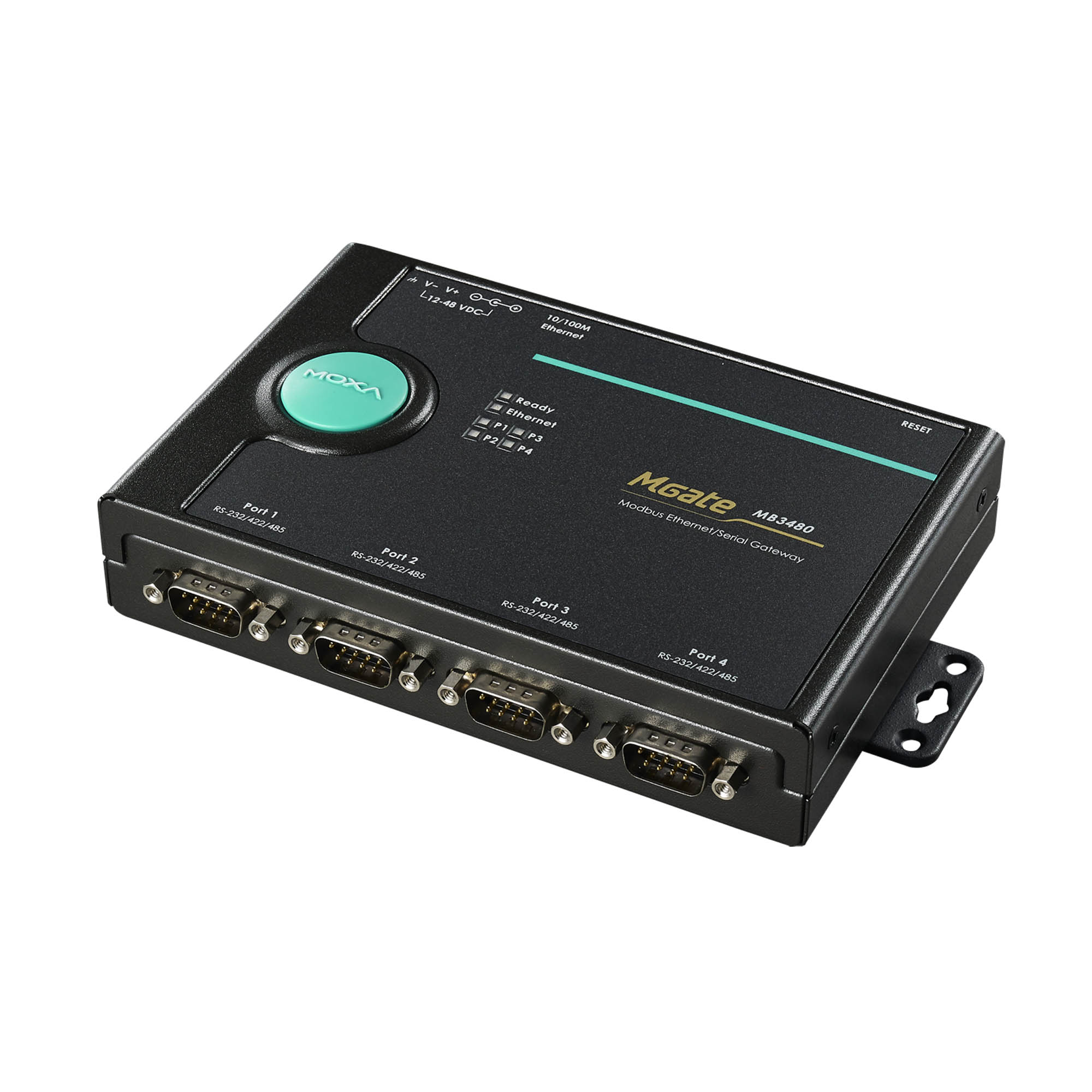

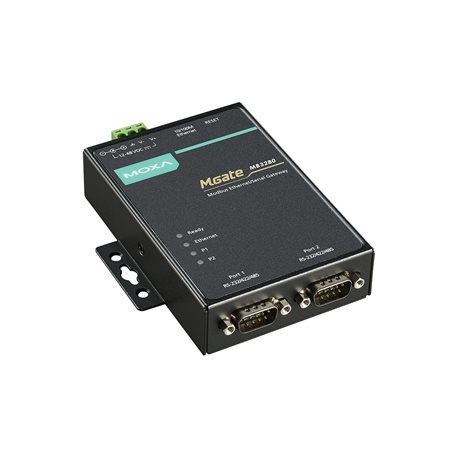

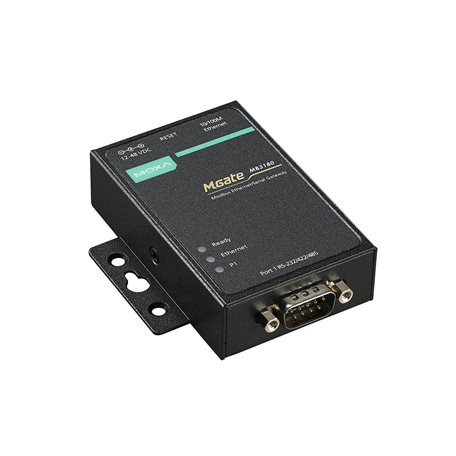

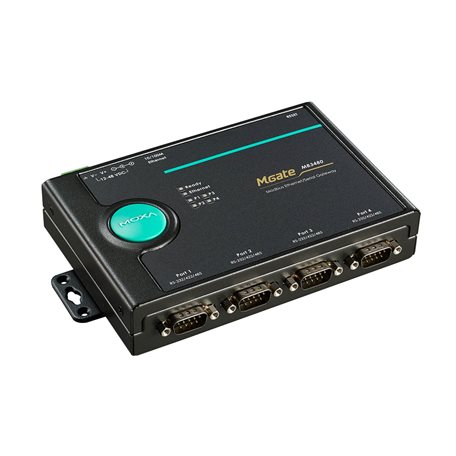

MGate MB3180/MB3280/MB3480 系列

1、2 和 4 端口标准串口转以太网 Modbus 网关

moxa-mgate-mb3180-mb3280-mb3480-series-image-1-(1).jpg | Moxa

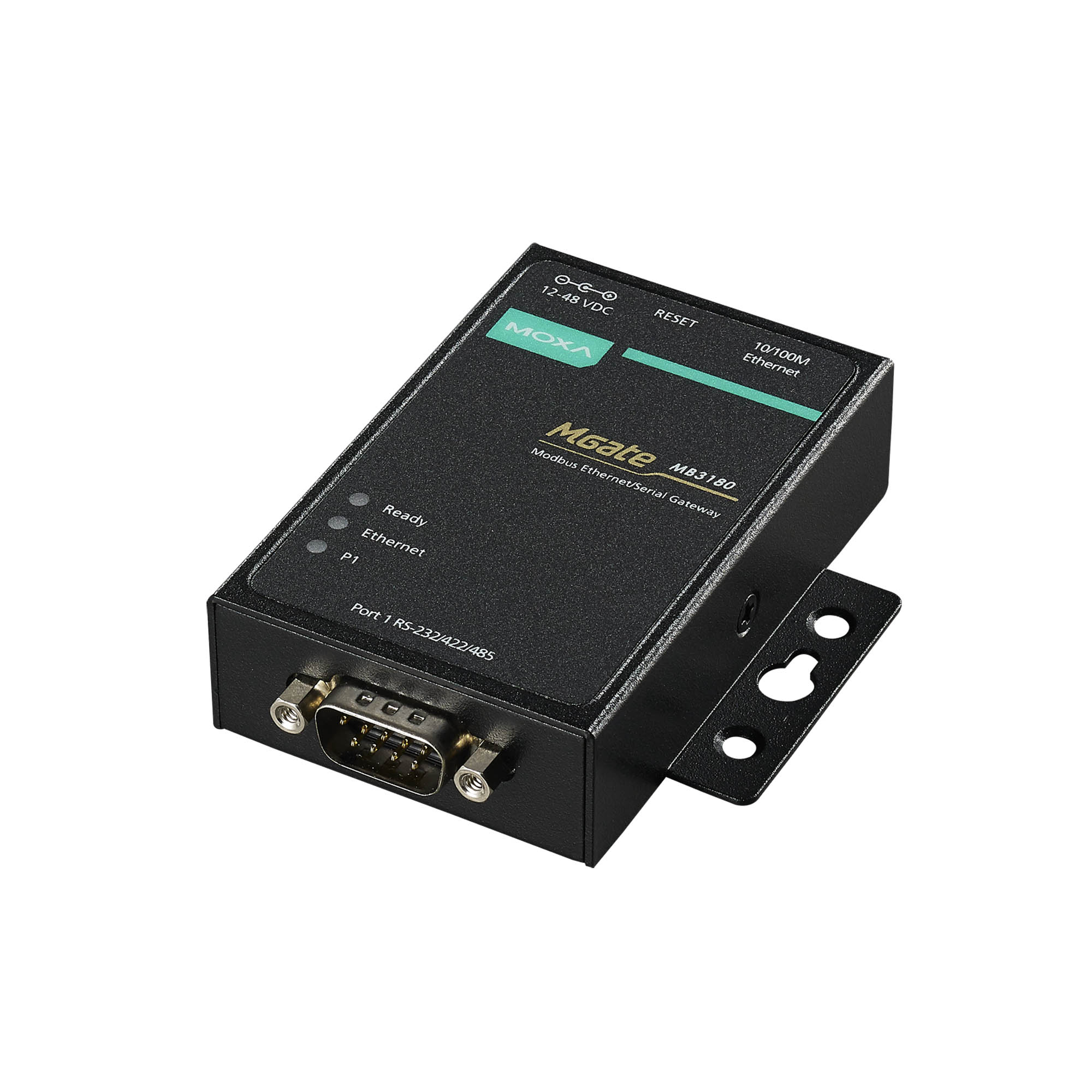

moxa-mgate-mb3180-mb3280-mb3480-series-image-2-(1).jpg | Moxa

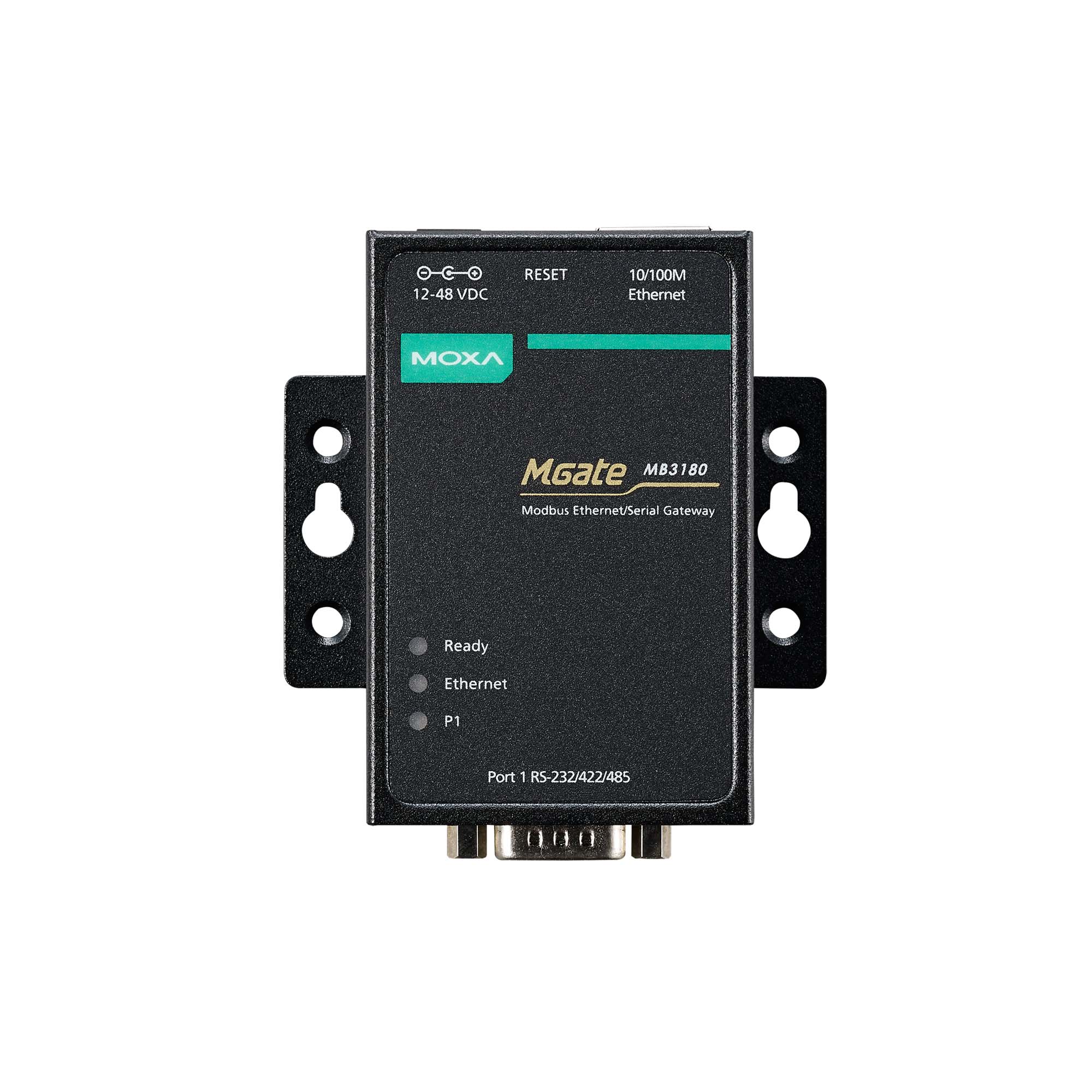

moxa-mgate-mb3180-mb3280-mb3480-series-image-3-(1).jpg | Moxa

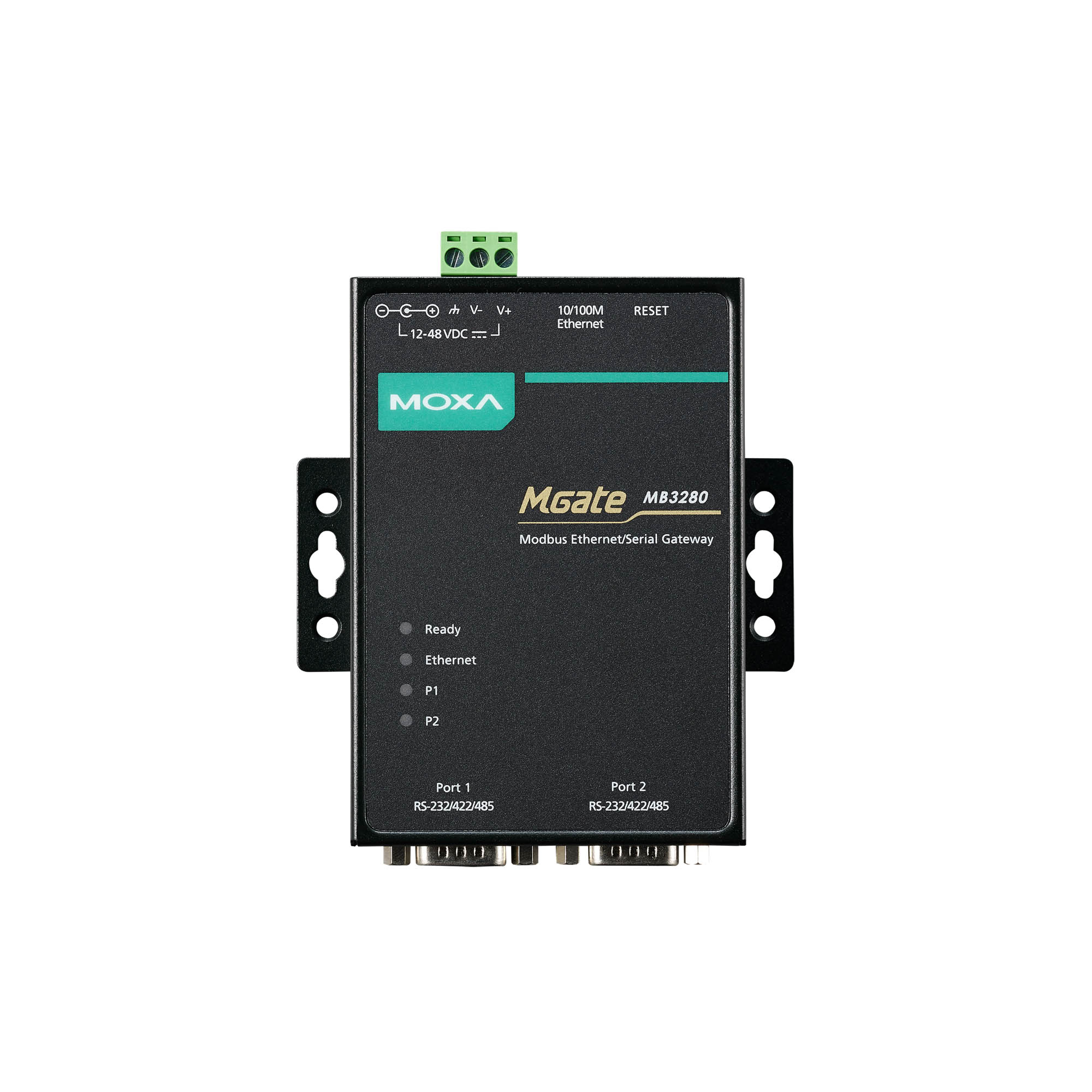

moxa-mgate-mb3180-mb3280-mb3480-series-image-4-(1).jpg | Moxa

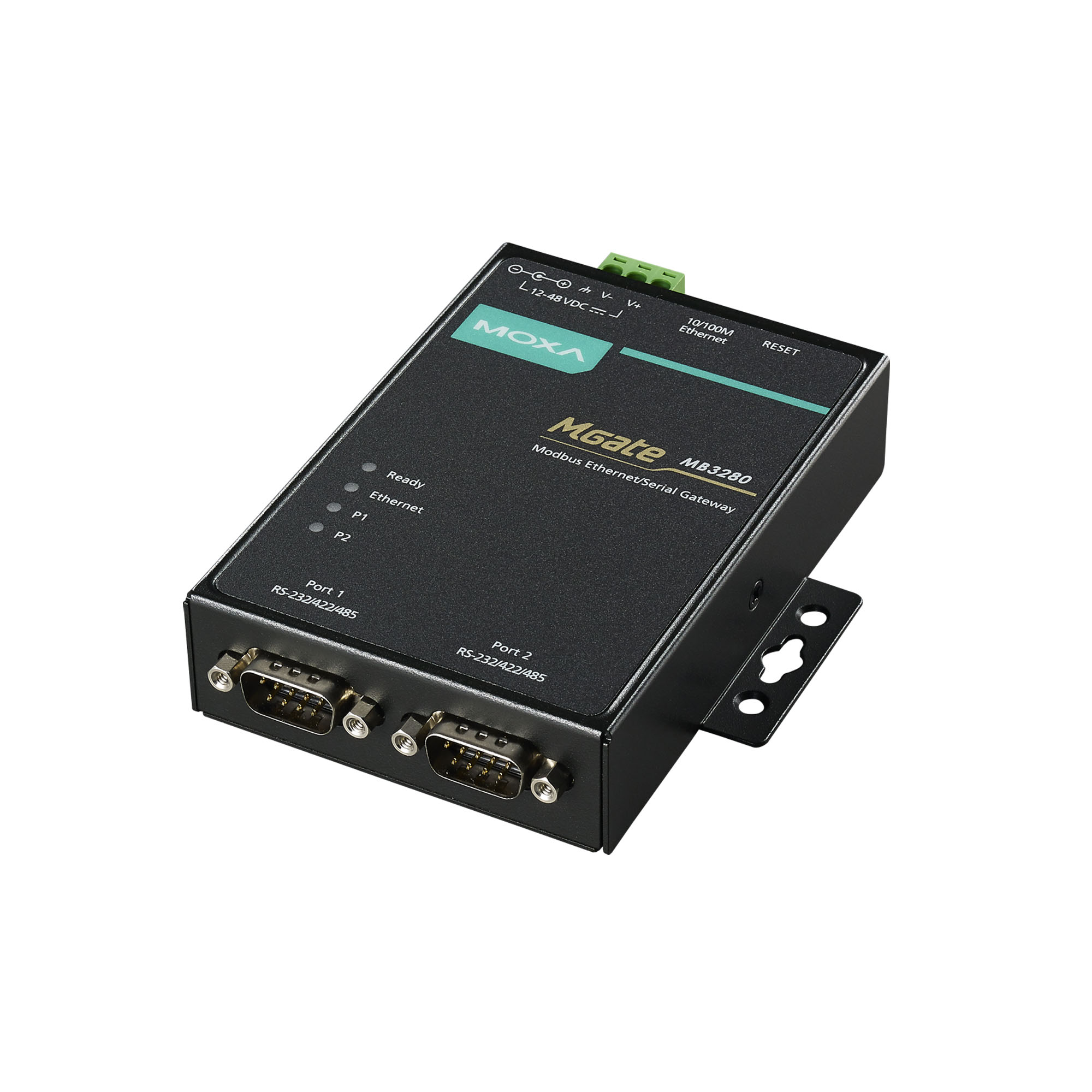

moxa-mgate-mb3180-mb3280-mb3480-series-image-5-(1).jpg | Moxa
moxa-mgate-mb3180-mb3280-mb3480-series-image-6-(1).jpg | Moxa

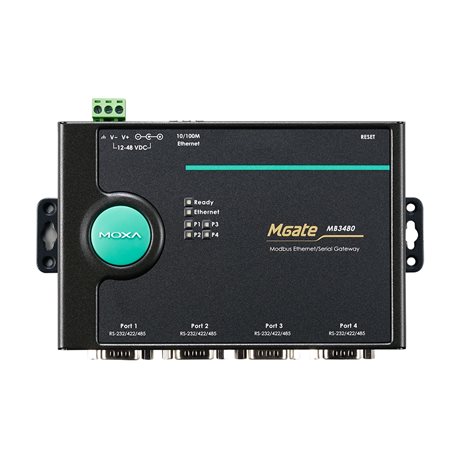

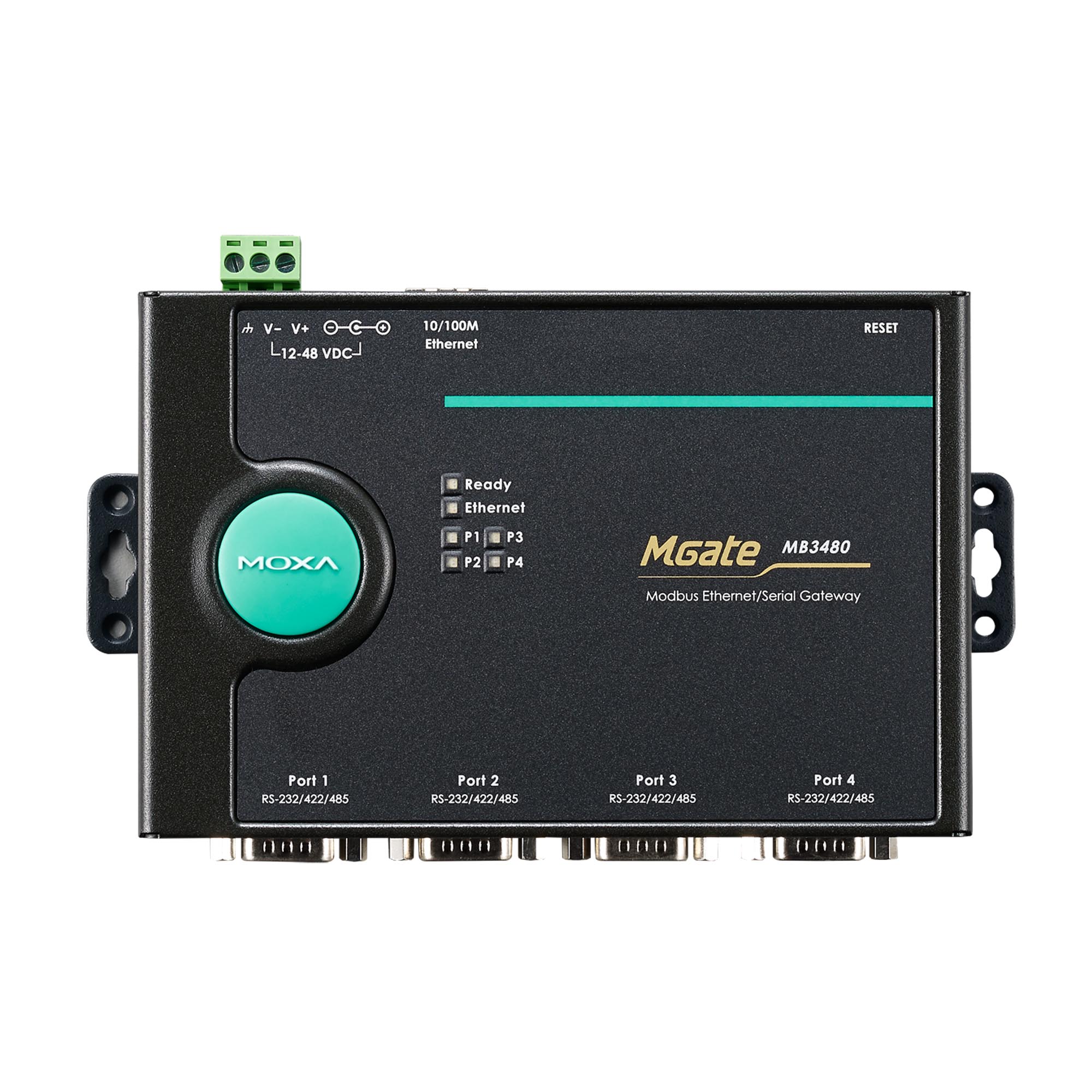

moxa-mgate-mb3180-mb3280-mb3480-series-image-7-(1).jpg | Moxa

特点和优势

  • 支持自动设备路由,简化配置
  • 通过 TCP 端口或 IP 地址进行路由,实现灵活部署
  • 支持 Modbus TCP 和 Modbus RTU/ASCII 协议转换
  • 1 个以太网端口和 1、2 或 4 个 RS-232/422/485 端口
  • 同时支持 16 个 TCP master,每个 master 最多可同时支持 32 个命令请求
  • 简易硬件安装和配置

认证

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

联系销售人员

介绍

MB3180、MB3280 和 MB3480 是标准的 Modbus 网关,可进行 Modbus TCP 和 Modbus RTU/ASCII 协议之间的转换。最多同时支持 16 个 Modbus TCP master,每个串口最多 31 个 RTU/ASCII slave。对于 RTU/ASCII master,最多支持 32 个 TCP slave。可通过 IP 地址、TCP 端口号或者 ID 映射控制串口的路由。通过 TCP 端口和 IP 地址进行串行端口路由,最多可访问 4 个 TCP 客户端/主站(MB3280/MB3480 型号),而通过 ID 映射进行路由,最多可访问 16 个 TCP 客户端/主站(MB3180/MB3280/MB3480)。

标准 Modbus 网络集成

三款标准 MGate™ 型号(MB3180、MB3280 和 MB3480)专为了快速集成 Modbus TCP 和 RTU/ASCII 网络而设计。这些型号可无缝集成 Modbus 串口 slave 设备至现有的 Modbus TCP 网络中,并且让串口 master 访问 Modbus TCP slave。MB3180、MB3280 和 MB3480 提供更简单、可定制的网络集成解决方案,且几乎可与任何 Modbus 网络兼容。

高密度、经济高效的网关

MGate™ MB3000 网关可以有效地将高密度 Modbus 节点连接至同一网络。MB3280 最多可管理 62 个串口 slave 节点,MB3480 最多可管理 124 个串口 slave 节点。每个 RS-232/422/485 串口可为每个 Modbus RTU 或 Modbus ASCII 配置不同的操作命令和波特率,允许两种类型的 Modbus 网络通过一个 Modbus 网关集成至 Modbus TCP 网络。

自动设备路由,轻松配置

Moxa 的自动设备路由功能为需要配置大量 Modbus 设备的工程师解决许多问题和不便。只需一键即可设置 slave ID 路由表完成 Modbus 网关配置,并自动检测来自监控和数据采集 (SCADA) 系统的 Modbus 请求。通过消除手动创建 slave ID 路由表的需要,自动设备路由功能为工程师节省了大量时间和成本。

  • 10/100BaseT(X) 端口(RJ45 接头)

    自动 MDI/MDI-X 连接

  • 电磁隔离保护

    1.5 kV(内置)

  • 工业协议

    Modbus TCP Client (Master)
    Modbus TCP Server (Slave)

  • 配置选项

    所有型号:Web 控制台 (HTTP)、设备搜索实用程序 (DSU)、MGate Manager、MCC 工具、Telnet Console
    仅限 MGate MB3280/MB3480:Web Console (HTTPS)

  • 管理

    所有型号:ARP、DHCP 客户端、DNS、HTTP、SNMPv1/v2c/v3、TCP/IP、Telnet、UDP
    仅限MGate MB3280/MB3240:HTTPS、SMTP、SNMP 陷阱、NTP 客户端

  • MIB

    RFC1213, RFC1317

  • 对时服务

    NTP Client(不包括 MGate MB3180)

  • 认证

    本地数据库

  • 加密

    HTTPS
    AES-128
    AES-256
    SHA-256

  • 安全协议

    SNMPv3
    HTTPS (TLS 1.2)(MGate MB3180 除外)

  • 端口数量

    MGate MB3180:1
    MGate MB3280:2
    MGate MB3480:4

  • 接头

    DB9 公头

  • 串口标准

    RS-232/422/485(软件可选)

  • 波特率

    50 bps 至 921.6 kbps

  • 数据位

    7,8

  • 校验位




    空间
    标志

  • 停止位

    1,2

  • 流量控制

    DTR/DSR
    RTS 切换(仅限 RS-232)
    RTS/CTS、XON/XOFF

  • RS-485 数据流向控制

    ADDC(数据流向自动控制)

  • RS-485 上拉电阻/下拉电阻

    1 kΩ,150 kΩ

  • RS-485 终端电阻

    MGate MB3180:无
    MGate MB3280/MB3480:120 Ω

  • RS-232

    TxD、RxD、RTS、CTS、DTR、DSR、DCD、GND

  • RS-422

    Tx+、Tx-、Rx+、Rx-、GND

  • RS-485-2w

    Data+、Data-、GND

  • RS-485-4w

    Tx+、Tx-、Rx+、Rx-、GND

  • 工业协议

    Modbus RTU/ASCII Master
    Modbus RTU/ASCII Slave

  • 最大 Client 连接数量

    16

  • 最大 Server 连接数量

    32

  • 输入电压

    12 至 48 VDC

  • 输入电流

    MGate MB3180:200 mA @ 12 VDC
    MGate MB3280:250 mA @ 12 VDC
    MGate MB3480:365 mA @ 12 VDC

  • 电源接头

    MGate MB3180:电源插座
    MGate MB3280/MB3480:电源插座和接线端子

  • 外壳

    金属

  • IP 等级

    IP30 对于 MGate MB3480,必须使用壁挂套件附带的两个螺钉将套件紧固到 MGate 底部,并且 MGate 必须正确连接到电源输入端子块。

  • 尺寸(有挂耳)

    MGate MB3180:22 x 75 x 80 mm(0.87 x 2.95 x 3.15 英寸)
    MGate MB3280:22 x 100 x 111 mm(0.87 x 3.94 x 4.37 英寸)
    MGate MB3480:35.5 x 102.7 x 181.3 mm(1.40 x 4.04 x 7.14 英寸)

  • 尺寸(无挂耳)

    MGate MB3180:22 x 52 x 80 mm(0.87 x 2.05 x 3.15 英寸)
    MGate MB3280:22 x 77 x 111 mm(0.87 x 3.03 x 4.37 英寸)
    MGate MB3480:35.5 x 102.7 x 157.2 mm(1.40 x 4.04 x 6.19 英寸)

  • 重量

    MGate MB3180:340 g (0.75 lb)
    MGate MB3280:360 g (0.79 lb)
    MGate MB3480:740 g (1.63 lb)

  • 工作温度

    MGate MB3180:0 至 55°C(32 至 131°F)
    MGate MB3280:0 至 60°C(32 至 140°F)
    MGate MB3480:0 至 55°C(32 至 131°F)

  • 存储温度(含包装)

    -40 至 85°C(-40 至 185°F)

  • 相对湿度

    5 至 95%(非冷凝)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32,FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD:接触:4 kV;空气:8 kV
    IEC 61000-4-3 RS:80 MHz 至 1 GHz:3 V/m
    IEC 61000-4-4 EFT:电源:1 kV;信号:0.5 kV
    IEC 61000-4-5 Surge:电源:1 kV (MB3180/MB3280)
    IEC 61000-4-5 Surge:电源:1 kV;信号:2 kV (MB3480)
    IEC 61000-4-6 CS:3 V
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • 安全

    MB3180 型号:EN 62368-1 和 UL 60950-1
    MB3280/3480 型号:IEC/UL 62368-1

  • 时间

    MGate MB3180:2,762,384 小时
    MGate MB3280:749,455 小时
    MGate MB3480:1,213,993 小时

  • 标准

    Telcordia SR332
