MGate 5114 系列

1 端口 Modbus RTU/ASCII/TCP/IEC 101 转 IEC 104 网关

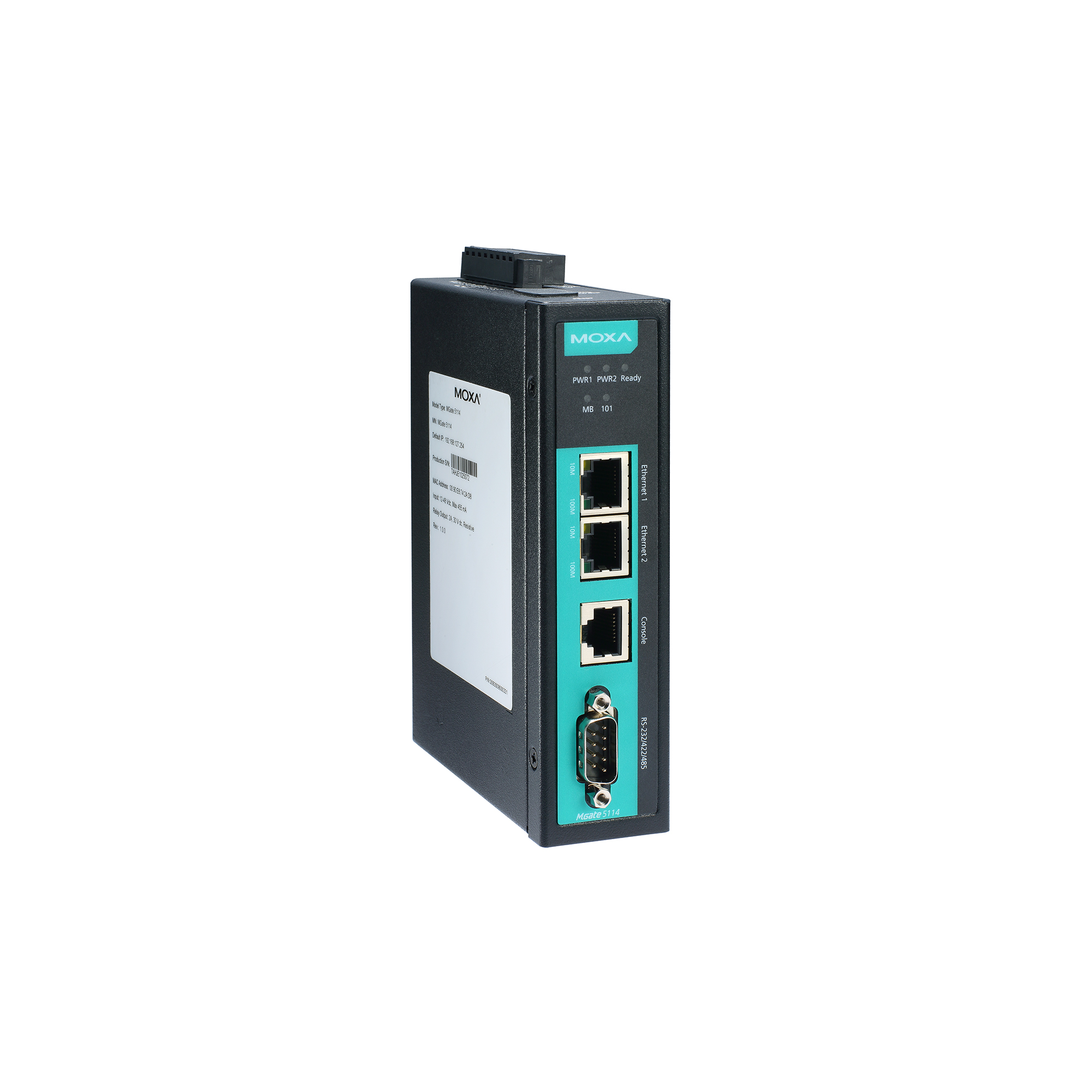

moxa-mgate-5114-series-image-(1).jpg | Moxa

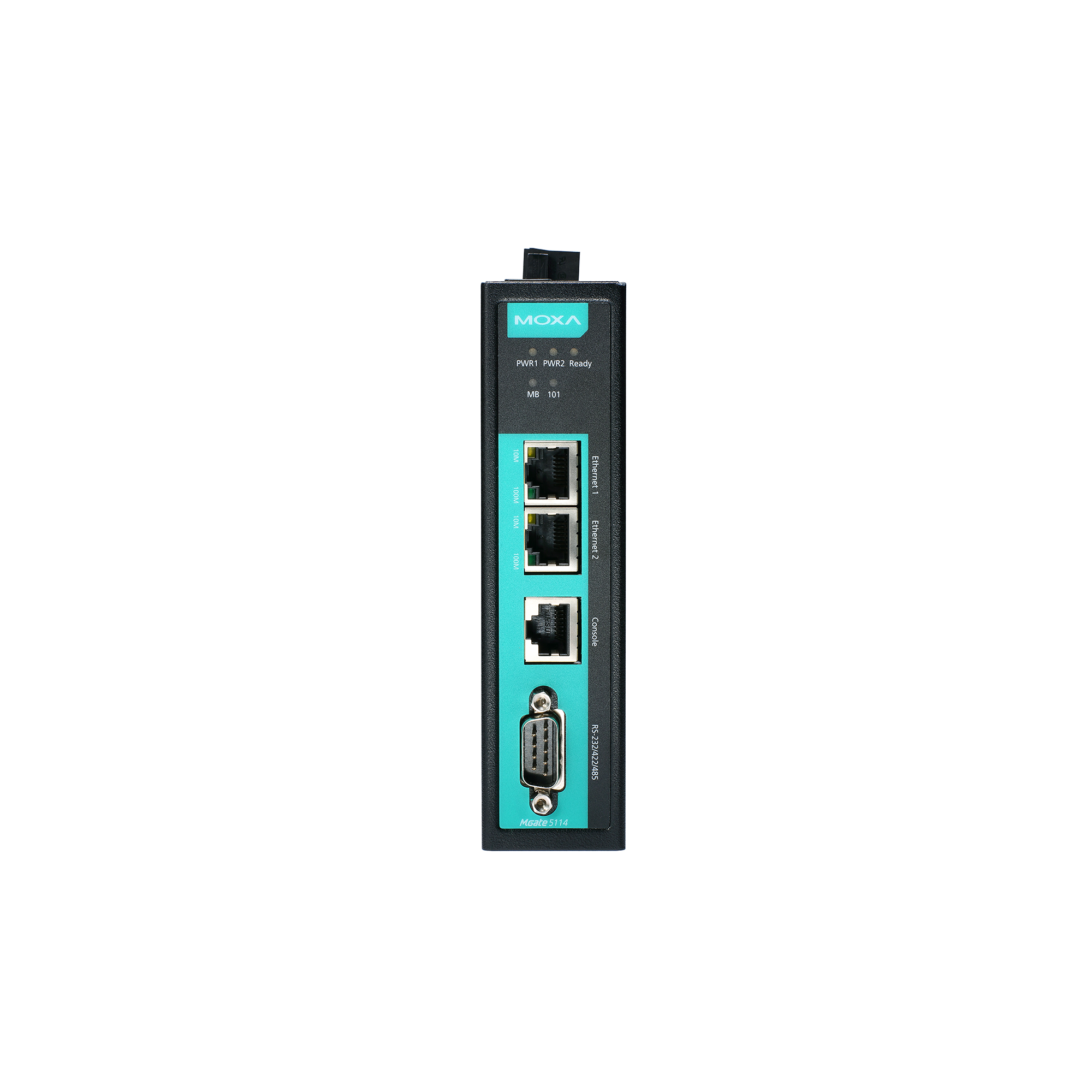

moxa-mgate-5114-series-image-1-(1).jpg | Moxa

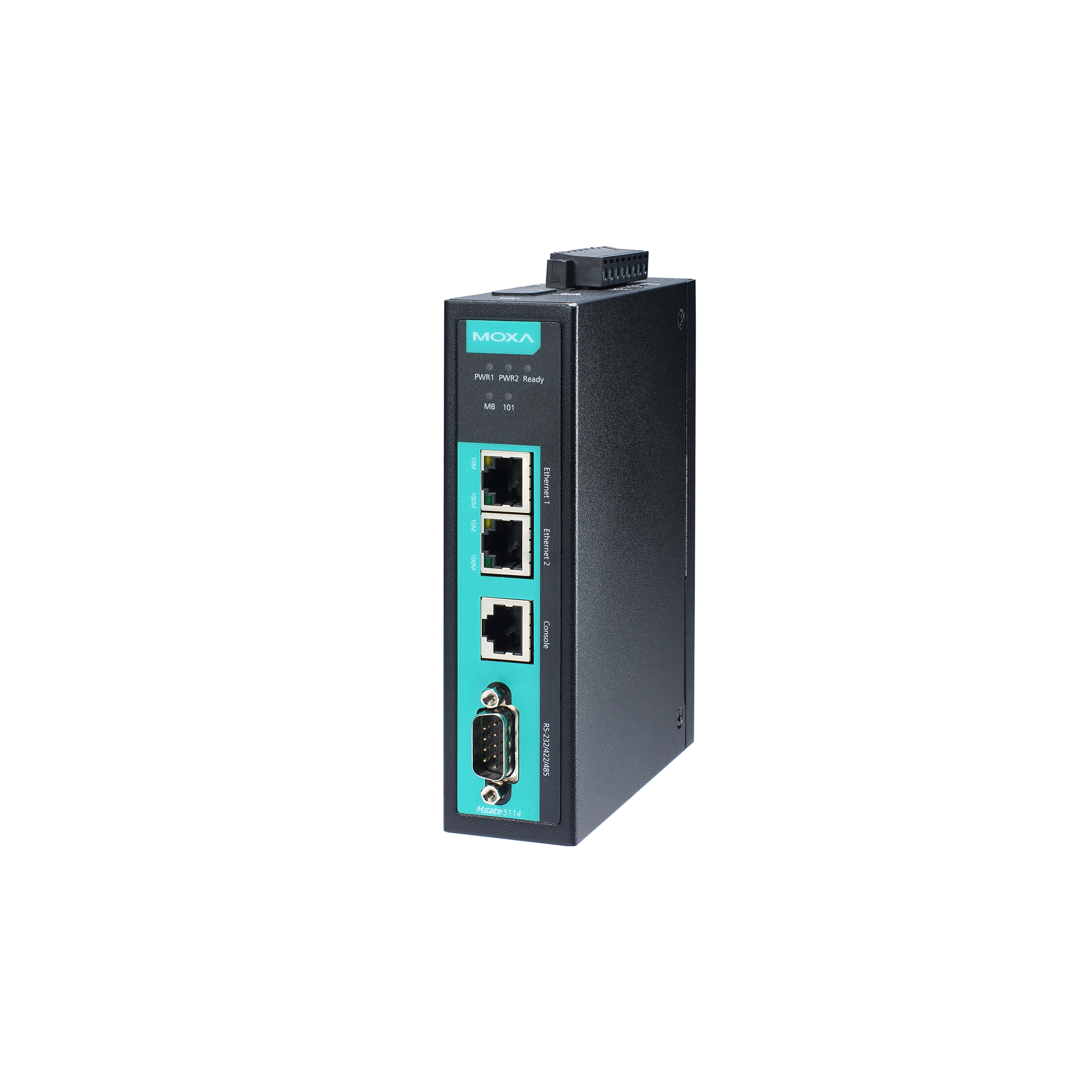

moxa-mgate-5114-series-image-2-(1).jpg | Moxa

特点和优势

  • 支持 Modbus RTU/ASCII/TCP、IEC 60870-5-101 和 IEC 60870-5-104 之间的协议转换
  • 支持 IEC 60870-5-101 master/slave (balanced/unbalanced)
  • 支持 IEC 60870-5-104 client/server
  • 支持 Modbus RTU/ASCII/TCP master/client 和 slave/server
  • 通过基于 Web 的向导轻松配置
  • 状态监控和故障保护,易于维护
  • 内置流量监控/诊断信息,方便故障排除
  • microSD 卡,用于配置备份/复制和事件日志
  • 内置以太网级联端口,容易接线
  • 冗余双直流电源输入和继电器输出
  • -40 至 75°C 的宽温型号可供选择
  • 带 2 kV 光电隔离保护的串口
  • 基于 IEC 62443 的安全功能

认证

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

联系销售人员

介绍

MGate 5114 工业以太网网关配备 2 个以太网端口和 1 个 RS-232/422/485 串口,支持 Modbus RTU/ASCII/TCP、IEC 60870-5-101 和 IEC 60870-5-104 网络通信。 MGate 5114 集成了常用的电力协议,能够满足不同通信协议的现场设备接入电力 SCADA 系统的各种需求。如果要将 Modbus 或 IEC 60870-5-101 设备集成至 IEC 60870-5-104 网络,需要使用 MGate 5114 作为 Modbus master/client 或 IEC 60870-5-101 master 来与 IEC 60870-5-104 系统收集和交换数据。



通过 Web Console 轻松配置

MGate 5114 系列图形化的快速安装指南,可简化配置。通过快速安装,可轻松进入协议转换模式,只需几个步骤即可完成配置。



Modbus RTU/ASCII/TCP 协议流量监控

MGate 5114 系列网关支持 Modbus RTU/ASCII/TCP、IEC 60870-5-101 和 IEC 60870-5-104 协议流量监控功能,便于故障排除,特别适用于安装阶段。值得一提的是,用户可通过广泛使用的故障排除工具 Wireshark 来查阅流量日志。这个功能特色让您可以轻松分析流量,从而判断故障的根本原因。



维护功能

MGate 5114 网关支持系统日志功能,可记录 MGate 中的事件;用户可以通过 web console 远程轻松查阅日志数据。网关也支持状态监控和故障保护功能。当 Modbus 设备断开连接或没有响应时,状态监控功能会通知 PSCADA 系统,由此 PSCADA 系统获取每个终端设备的状态,发出警报通知管理员。



  • 10/100BaseT(X) 端口(RJ45 接头)

    2
    自动 MDI/MDI-X 连接

  • 电磁隔离保护

    1.5 kV(内置)

  • 工业协议

    Modbus TCP Client (Master)、Modbus TCP Server (Slave)、IEC 60870-5-104 Client、IEC 60870-5-104 Server

  • 配置选项

    Web Console (HTTP/HTTPS)、设备搜寻工具 (DSU)、Telnet Console

  • 管理

    ARP、DHCP Client、DNS、HTTP、HTTPS、SMTP、SNMP Trap、SNMPv1/v2c/v3、TCP/IP、Telnet、SSH、UDP、NTP Client

  • MIB

    RFC1213、RFC1317

  • 对时服务

    NTP Client

  • Console 端口

    RS-232(TxD、RxD、GND),8-pin RJ45(115200、n、8、1)

  • 端口数量

    1

  • 接头

    DB9 公头

  • 串口标准

    RS-232/422/485

  • 波特率

    50 bps 至 921.6 kbps

  • 数据位

    7,8

  • 校验位

    偶、Mark、无、奇、Space

  • 停止位

    1,2

  • 流量控制

    RTS Toggle(仅限 RS-232)、RTS/CTS

  • RS-485 数据流向控制

    ADDC®(自动数据方向控制)

  • RS-485 上拉电阻/下拉电阻

    1 kΩ,150 kΩ

  • RS-485 终端电阻

    120 Ω

  • 隔离保护

    2 kV(内置)

  • RS-232

    TxD、RxD、RTS、CTS、DTR、DSR、DCD、GND

  • RS-422

    Tx+、Tx-、Rx+、Rx-、GND

  • RS-485-2w

    Data+、Data-、GND

  • RS-485-4w

    Tx+、Tx-、Rx+、Rx-、GND

  • 工业协议

    Modbus RTU/ASCII Master、Modbus RTU/ASCII Slave、IEC 60870-5-101 Master (Balanced/Unbalanced)、IEC 60870-5-101 Slave (Balanced/Unbalanced)

  • 配置选项

    串口 Console

  • 模式

    Master, Slave

  • 支持功能

    1、2、3、4、5、6、15、16、23

  • 最大命令数量

    128

  • 模式

    Client (Master)、Server (Slave)

  • 支持功能

    1、2、3、4、5、6、15、16、23

  • 最大 Client 连接数量

    32

  • 最大 Server 连接数量

    32

  • 最大命令数量

    128

  • 模式

    Client
    Server

  • 最大 Client 连接数量

    32

  • 最大 Server 连接数量

    32

  • 最大信息对象数量

    2000 点

  • 模式

    Master (Balanced/Unbalanced)
    Slave (Balanced/Unbalanced)

  • 最大 Master 连接数量

    1

  • 最大 Slave 连接数量

    1 (Balanced),31 (Unbalanced)

  • 最大信息对象数量

    2000 点

  • microSD 插槽

    最高 32 Gb(兼容 SD 2.0)

  • 输入电压

    12 至 48 VDC

  • 输入电流

    455 mA @ 12 VDC

  • 电源接头

    螺丝紧固 Euroblock 端子

  • 触点额定电流

    纯电阻性负载: 2 A @ 30 VDC

  • 外壳

    金属

  • IP 等级

    IP30

  • 尺寸

    36 x 105 x 140 mm(1.42 x 4.14 x 5.51 英寸)

  • 重量

    507 g (1.12 lb)

  • 存储温度(含包装)

    -40 至 85°C(-40 至 185°F)

  • 相对湿度

    5 至 95%(非冷凝)

  • 工作温度

    MGate 5114:0 至 60°C(32 至 140°F)
    MGate 5114-T:-40 至 75°C(-40 至 167°F)

  • 安全

    EN 60950-1,UL 508

  • EMC

    EN 55032/24

  • EMI

    CISPR 32,FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD:接触:8 kV;空气:15 kV
    IEC 61000-4-3 RS:80 MHz 至 1 GHz:10 V/m
    IEC 61000-4-4 EFT:电源:4 kV;信号:2 kV
    IEC 61000-4-5 Surge:电源:2 kV;信号:2 kV
    IEC 61000-4-6 CS:150 kHz 至 80 MHz:10 V/m;信号:10 V/m
    IEC 61000-4-8 PFMF

  • 自由落体

    IEC 60068-2-32

  • 冲击

    IEC 60068-2-27

  • 振动

    IEC 60068-2-6,IEC 60068-2-64

  • 时间

    1,140,815 小时

  • 标准

    Telcordia SR332

软件、固件和驱动程序

筛选

名称 类型 校驗和 版本 操作系统 发布日期
Software Package for MXview One Series (Windows version)
374.0 MB
软件包
SHA-512
v1.3.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2024年1月31日 2024年1月31日 发布说明
MXview One plugin (Linux)
15.4 MB
软件包
SHA-512
v1.3
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
2023年10月2日 2023年10月2日 发布说明
Firmware for MGate 5114 Series
8.8 MB
固件
SHA-512
v1.5
2023年9月26日 2023年9月26日 发布说明
MXview One plugin (Windows)
12.8 MB
软件包
SHA-512
v1.2
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2023年8月2日 2023年8月2日 发布说明
MXconfig Plugin
3.3 MB
软件包
SHA-512
v1.4
  • Windows 10
  • Windows 7
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
2023年7月17日 2023年7月17日 发布说明
Moxa CLI Configuration Tool for Windows
2.0 MB
管理工具
SHA-512
v1.3
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2023年6月29日 2023年6月29日 发布说明
Moxa CLI Configuration Tool for Linux
11.6 MB
管理工具
SHA-512
v1.3
  • Linux Kernel 2.6.x
  • Linux Kernel 3.x
  • Linux Kernel 4.x
  • Linux Kernel 5.x
2023年6月29日 2023年6月29日 发布说明
Device Search Utility
2.2 MB
管理工具
SHA-512
v2.7
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
2023年6月28日 2023年6月28日 发布说明
MXview plugin
32.8 MB
软件包
SHA-512
v1.4
  • Windows 10
  • Windows 7
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2023年5月2日 2023年5月2日 发布说明

支持文件

名称 类型 语言 版本 发布日期
Manual for MGate 5114 Series
10.6 MB
手册 英文 v2.1 2023年9月20日 2023年9月20日
Tech Note: The Security Hardening Guide for MGate 5000 Series
1.3 MB
技术说明 英文 v2.2 2023年8月16日 2023年8月16日
QIG for MGate 5114 Series
427.5 KB
QIG 英文 v1.2 2021年4月28日 2021年4月28日
Compatibility Guide for MGate 5114 Series (IEC 60870-5-101 Master PICS)
741.1 KB
兼容性指南 英文 v1.2 2020年9月17日 2020年9月17日
Compatibility Guide for MGate 5114 Series (IEC 60870-5-101 Slave PICS)
741.1 KB
兼容性指南 英文 v1.2 2020年9月17日 2020年9月17日
Compatibility Guide for MGate 5114 Series (IEC 60870-5-104 Client PICS)
806.3 KB
兼容性指南 英文 v1.2 2020年9月17日 2020年9月17日
Compatibility Guide for MGate 5114 Series (IEC 60870-5-104 Server PICS)
831.0 KB
兼容性指南 英文 v1.2 2020年9月17日 2020年9月17日
Tech Note: How to Configure the MGate 5114 with IEC 60870-5-104 SCADA
2.2 MB
技术说明 英文 v1.0 2019年1月17日 2019年1月17日
MGate 5114 系列产品资料表
2.1 MB
产品资料表 中文 v1.0 2018年11月29日 2018年11月29日
2D CAD for MGate 5114 Series
200.2 KB
2D CAD 英文 2018年11月28日 2018年11月28日

可用型号 (2)

显示图片

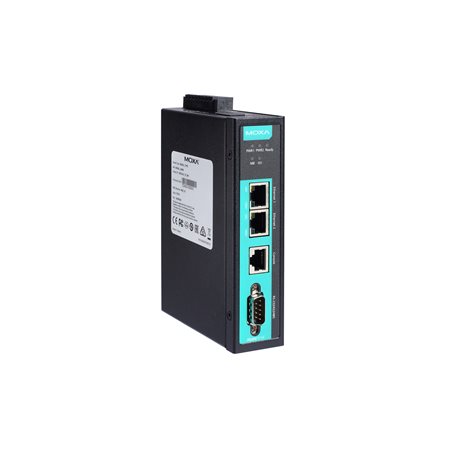

moxa-mgate-5114-image.jpg | MoxaMGate 5114moxa-mgate-5114-t-image.jpg | MoxaMGate 5114-T
