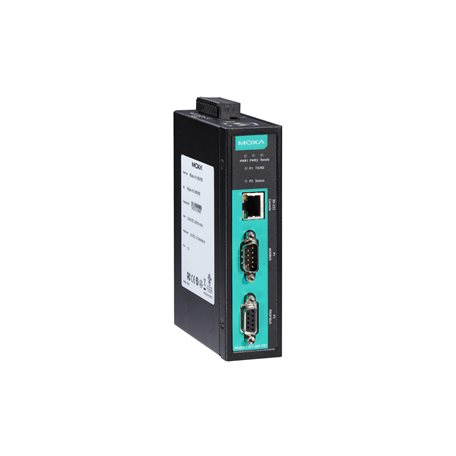

MGate 4101-MB-PBS
MGate 4101-MB-PBS 系列

1-port Modbus-to-PROFIBUS Slave gateway, 12-48 VDC, 0 to 60°C operating temperature

Serial Interface

  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

  • No. of Ports

    • 1

  • Connector

    • DB9 male

  • Serial Standards

    • RS-232/422/485

  • Baudrate

    • 50 bps to 921.6 kbps

  • Data Bits

    • 7, 8

  • Parity

    • None, Even, Odd, Space, Mark

  • Stop Bits

    • 1, 2

  • Flow Control

    • DTR/DSR, RTS/CTS

  • RS-485 Data Direction Control

    • ADDC® (automatic data direction control)

  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    • 120 ohms

  • Isolation

    • 2 kV (I models)
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features

  • Configuration Options

    • MGate Manager

  • Industrial Protocols

    • Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave, PROFIBUS DP-V0 Slave
Modbus RTU/ASCII

  • Mode

    • Master, Slave

  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Commands

    • 100

  • Input Data Size

    • 7744 bytes

  • Output Data Size

    • 7744 bytes
PROFIBUS Interface

  • Industrial Protocols

    • PROFIBUS DP

  • No. of Ports

    • 1

  • Connector

    • DB9 female

  • Baudrate

    • 9600 bps to 12 Mbps

  • Isolation

    • 2 kV (built-in)

  • Signals

    • PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V
PROFIBUS

  • Rotary Switch

    • PROFIBUS addresses 0-99 (addresses 100-125 supported through software configuration)

  • Mode

    • DP-V0 Slave

  • Max. No. of Master Connections

    • 1

  • Max. No. of PROFIBUS I/O Modules

    • 24 per page

  • Max. No. of PROFIBUS Pages

    • 32

  • Input Data Size

    • 7744 bytes

  • Output Data Size

    • 7744 bytes
Power Parameters

  • Input Voltage

    • 12 to 48 VDC

  • Input Current

    • 340 mA @ 12 VDC

  • Power Connector

    • Screw-fastened Euroblock terminal
Relays

  • Contact Current Rating

    • Resistive load: 1 A @ 24 VDC
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP30

  • Dimensions

    • 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)

  • Weight

    • 500 g (1.10 lb)
Environmental Limits

  • Operating Temperature

    • 0 to 60°C (32 to 140°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • Safety

    • EN 60950-1, UL 60950-1

  • EMC

    • EN 55032/24

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF

  • Freefall

    • IEC 60068-2-32

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-6, IEC 60068-2-64
MTBF

  • Time

    • 513,139 hrs

  • Standards

    • Telcordia SR332
Warranty
