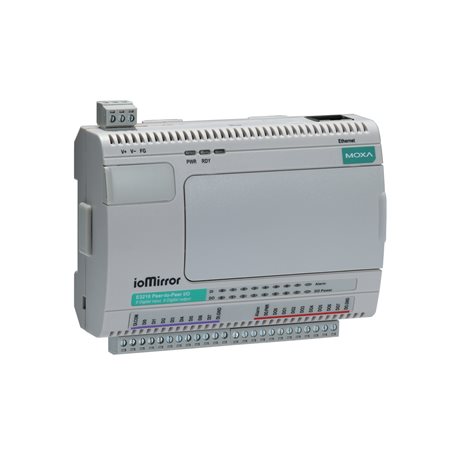

ioMirror E3210
ioMirror E3200 系列

Universal I/O, 8 DIs, 8 DOs, -10 to 60°C operating temperature

Input/Output Interface

  • Digital Input Channels

    • 8

  • Digital Output Channels

    • 8

  • Alarm Contact Channels

    • 1

  • Isolation

    • 3k VDC or 2k Vrms

  • Buttons

    • Reset button
Digital Inputs

  • Connector

    • Screw-fastened Euroblock terminal

  • Digital Filtering Time Interval

    • Software configurable

  • Dry Contact

    • On: short to GND
      Off: open

  • I/O Mode

    • DI

  • Over-Voltage Protection

    • 36 VDC

  • Points per COM

    • 8 channels

  • Sensor Type

    • Dry contact
      Wet Contact (NPN)

  • Wet Contact (DI to GND)

    • On: 10 to 30 VDC
      Off: 0 to 3 VDC
Digital Outputs

  • Connector

    • Screw-fastened Euroblock terminal

  • Current Rating

    • 200 mA per channel

  • I/O Mode

    • DO

  • I/O Type

    • Sink

  • Over-Current Protection

    • 0.6 A per channel @ 25°C

  • Over-Temperature Shutdown

    • 160°C (min.)

  • Over-Voltage Protection

    • 35 VDC
Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features

  • Configuration Options

    • Web Console (HTTP), Windows Utility (ioMirrorAdmin)

  • Industrial Protocols

    • Modbus TCP Server (Slave)

  • Management

    • BOOTP, DHCP Client, HTTP, TCP/IP, UDP

  • Time Management

    • SNTP
LED Interface

  • LED Indicators

    • PWR, Ready
Power Parameters

  • Power Connector

    • Screw-fastened Euroblock terminal

  • No. of Power Inputs

    • 1

  • Input Voltage

    • 12 to 48 VDC

  • Power Consumption

    • 136 mA @ 24 VDC
Alarm Contacts

  • I/O Type

    • Sink

  • Current Rating

    • Max. 200 mA per channel

  • Connector

    • Screw-fastened Euroblock terminal
Physical Characteristics

  • Housing

    • Plastic

  • Dimensions

    • 115 x 79 x 45.6 mm (4.53 x 3.11 x 1.80 in)

  • Weight

    • 205 g (0.45 lb)

  • Wiring

    • I/O cable, 16 to 26 AWG
      Power cable, 16 to 26 AWG
Environmental Limits

  • Operating Temperature

    • -10 to 60°C (14 to 140°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Altitude

    • 2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications

  • Freefall

    • IEC 60068-2-32

  • EMI

    • EN 61000-6-4, FCC Part 15B Class A

  • Safety

    • UL 508

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-6

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
MTBF

  • Time

    • 231,020 hrs

  • Standards

    • Telcordia SR332
