通用控制器和远程 I/O

通用控制器和远程 I/O 产品使用 Click&Go 控制逻辑，运用主动监控专利技术 (中国发明专利，专利号ZL2008 1 0177310.5 )，支持多种 OT/IT 协议。能源监控、设备监控和机器原始设备制造商应用等 IIoT 应用的配置、部署和实现，都不再是难题。

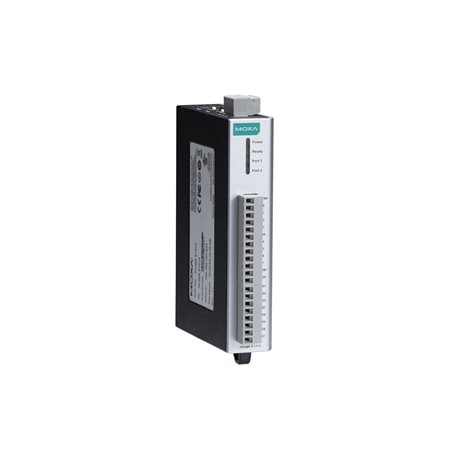

ioLogik E1242-T
ioLogik E1200 系列

Universal I/O, 4 AIs, 4 DIs, 4 DIOs, -40 to 75°C operating temperature

Input/Output Interface

  • Analog Input Channels

    • 4

  • Configurable DIO Channels (by jumper)

    • 4

  • Digital Input Channels

    • 4

  • Isolation

    • 3k VDC or 2k Vrms

  • Buttons

    • Reset button
Digital Inputs

  • Connector

    • Screw-fastened Euroblock terminal

  • Counter Frequency

    • 250 Hz

  • Digital Filtering Time Interval

    • Software configurable

  • Dry Contact

    • On: short to GND
      Off: open

  • I/O Mode

    • DI or event counter

  • Points per COM

    • 4 channels

  • Sensor Type

    • Dry contact
      Wet Contact (NPN or PNP)

  • Wet Contact (DI to COM)

    • On: 10 to 30 VDC
      Off: 0 to 3 VDC
Digital Outputs

  • Connector

    • Screw-fastened Euroblock terminal

  • Current Rating

    • 200 mA per channel

  • I/O Mode

    • DO or pulse output

  • I/O Type

    • Sink

  • Over-Current Protection

    • 2.6 A per channel @ 25°C

  • Over-Temperature Shutdown

    • 175°C (typical), 150°C (min.)

  • Over-Voltage Protection

    • 35 VDC

  • Pulse Output Frequency

    • 500 Hz (max.)
Analog Inputs

  • Accuracy

    • ±0.1% FSR @ 25°C
      ±0.3% FSR @ -10 to 60°C
      ±0.5% FSR @ -40 to 75°C

  • Built-in Resistor for Current Input

    • 120 ohms

  • Connector

    • Screw-fastened Euroblock terminal

  • I/O Mode

    • Voltage/Current

  • I/O Type

    • Differential

  • Input Impedance

    • 10 mega-ohms (min.)

  • Input Range

    • 0 to 10 VDC
      0 to 20 mA
      4 to 20 mA
      4 to 20 mA (with burn-out detection)

  • Resolution

    • 16 bits

  • Sampling Rate

    • All channels: 12 samples/sec
      Per channel: 1.5 samples/sec
Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2, 1 MAC address (Ethernet bypass)

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features

  • Configuration Options

    • Web Console (HTTP), Windows Utility (ioSearch)

  • Industrial Protocols

    • EtherNet/IP Adapter (Slave), Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library

  • Management

    • BOOTP, RESTful API, DHCP Client, HTTP, IPv4, TCP/IP, UDP, SNMPv1 Trap, SNMPv1/v2c

  • MIB

    • Device Settings MIB

  • Security

    • Access control list
LED Interface

  • LED Indicators

    • Power, Ready, Port 1, Port 2
Modbus TCP

  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23

  • Mode

    • Server

  • Max. No. of Client Connections

    • 10
EtherNet/IP

  • Mode

    • Adapter

  • Max. No. of Scanner Connections

    • 9 (for read-only), 1 (for read/write)
Power Parameters

  • Power Connector

    • Screw-fastened Euroblock terminal

  • No. of Power Inputs

    • 1

  • Input Voltage

    • 12 to 36 VDC

  • Power Consumption

    • 139 mA @ 24 VDC
Physical Characteristics

  • Housing

    • Plastic

  • Dimensions

    • 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)

  • Weight

    • 200 g (0.44 lb)

  • Installation

    • DIN-rail mounting, Wall mounting

  • Wiring

    • I/O cable, 16 to 26 AWG
      Power cable, 12 to 24 AWG
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Altitude

    • 2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications

  • EMC

    • EN 55032/24, EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Hazardous Locations

    • ATEX, Class I Division 2

  • Safety

    • UL 508

  • Shock

    • IEC 60068-2-27

  • Freefall

    • IEC 60068-2-32

  • Vibration

    • IEC 60068-2-6
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 502,210 hrs

  • Standards

    • Telcordia SR332
Warranty
