首页 产品 工业计算 x86 计算机 MC-3201 系列，搭载第11 代Intel® Core™ 处理器的紧凑型计算机 MC-3201-TGL7-M-S
MOXA

x86 计算机

Moxa 工业级无风扇 X86 计算机通过了一系列严苛测试，严格遵循工业标准，即便在恶劣的工作环境中也能长久可靠运转，是重工业、变电站和电力设施、交通运输、油气以及海事应用的理想选择。

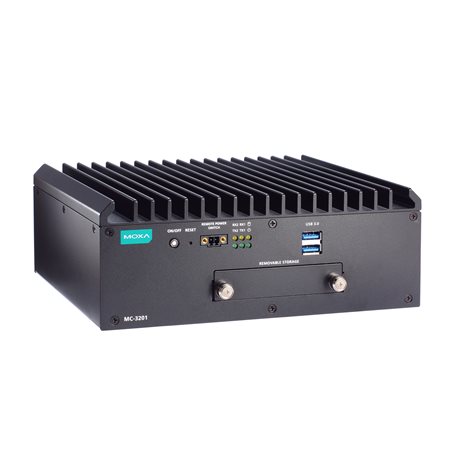

MC-3201-TGL7-M-S
MC-3201 系列

Intel® Core™ i7-1185G7E, 4C/8T, 1.8 GHz computer with 2 DisplayPorts, 4 GbE ports, 2 RS/232/422/485 3-in-1 serial ports, 1 NMEA port, 4 DIs, 4 DOs, 2 USB 3.0 ports, 4 USB 2.0 ports, TPM 2.0, 24 VDC power input, -20 to 55°C operating temperature at full CPU speed

Computer

  • CPU

    • Intel® Core™ i7-1185G7E processor (12M Cache, up to 1.8 GHz)

  • Storage Slot

    • SSD slot x 1; SATA 3.0, internal mPCIe socket

  • System Memory Slot

    • SODIMM DDR4 2133 slot x 2, up to 32 GB max.

  • Supported OS

    • Linux Debian 11, 64-bit, kernel 5.10
      Windows 10 Embedded IoT Ent 2019 LTSC 64-bit
      (Both optional, available via CTOS)

  • Graphics Controller

    • Intel® Iris® Xe Graphics
Computer Interface

  • Video Output

    • DisplayPort x 2
      up to 3840 x 2160 resolution at 60 Hz

  • USB 3.0

    • USB 3.0 hosts x 2, type-A connectors

  • USB 2.0

    • USB 2.0 hosts x 4, type-A connectors

  • Buttons

    • Reset button
Serial Interface

  • Connector

    • DB9 male

  • Serial Standards

    • RS-232/422/485 (software selectable)

  • Serial Ports

    • 2 x RS-232/422/485

  • Flow Control

    • RTS/CTS, XON/XOFF

  • Baudrate

    • 50 bps to 115.2 kbps

  • ESD Protection

    • 4 kV contact, 8 kV air
Ethernet Interface

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 4
LED Indicators

  • System

    • Power x 1

  • Serial

    • 2 per port (Tx, Rx)
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND
Physical Characteristics

  • Installation

    • Wall mounting

  • Housing

    • Metal

  • Dimensions

    • 220 x 80 x 170 mm (8.66 x 3.15 x 6.69 in)

  • Weight

    • Product only: 1.40 kg (0.63 lb)
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
Power Parameters

  • Input Voltage

    • 24 VDC

  • Power Button

    • ON/OFF (rear panel)
      Reset button
Environmental Limits

  • Operating Temperature

    • -20 to 55°C (-4 to 131°F)

  • Storage Temperature

    • -30 to 60°C (-22 to 140°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Shock

    • IEC 60068-2-27
Standards and Certifications

  • EMC

    • EN 55032/35, CISPR 32, FCC Part 15B Class A

  • Hazardous Locations

    • IECEx Zone 2

  • Safety

    • UL 60950-1, UL 62368-1, EN 60950-1, EN 62368-1
Reliability

  • Alert Tools

    • Built-in RTC (real-time clock) with lithium battery backup
MTBF

  • Time

    • 323,270 hrs

  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
