Moxa x86 工业级无风扇计算机通过了一系列严苛测试，严格遵循工业标准，即便在恶劣工作环境中也能长久可靠运行，是各类工业自动化应用的理想之选。

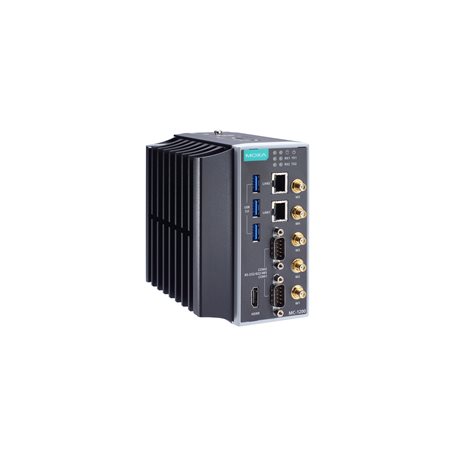

MC-1220-KL5-T-S
MC-1200 系列

Intel® Core™ i5-7300U 2C/4T 2.6 GHz computer with 8 GB RAM, 2 Gigabit LAN ports, 2 RS/232/422/485 3-in-1 serial ports, 3 USB 3.0 ports, 3 mPCIe expansion slots, 1 HDMI, TPM 2.0, 9 to 36 VDC power, -40 to 70°C operating temperature

Computer

  • CPU

    • Intel® Core™ i5-7300U Processor (3M Cache, up to 3.50 GHz)

  • Storage Slot

    • mSATA slots x 1, SATA 3.0, internal mini-PCIe socket

  • System Memory Slot

    • SODIMM DDR4 slot x 2, up to 32 GB max.

  • Supported OS

    • Linux Debian 9, 64-bit, kernel 4.9 (optional via CTOS)
      Windows 10 Enterprise LTSC 1809 64-bit (optional via CTOS)

  • Graphics Controller

    • Intel® HD Graphics 620
Computer Interface

  • Video Input

    • HDMI x 1, up to 3840 x 2160 resolution at 30 Hz

  • USB 3.0

    • USB 3.0 hosts x 3, type-A connectors

  • Buttons

    • Reset button
Serial Interface

  • Connector

    • DB9 male

  • Serial Standards

    • RS-232/422/485 (software selectable)

  • Serial Ports

    • 2 x RS-232/422/485

  • Flow Control

    • RTS/CTS, XON/XOFF

  • Baudrate

    • 50 bps to 115.2 kbps

  • ESD Protection

    • 4 kV contact, 8 kV air
Ethernet Interface

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 2
LED Indicators

  • System

    • Power x 1

  • Serial

    • 2 per port (Tx, Rx)
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND
Physical Characteristics

  • Installation

    • Wall mounting (with optional kit), DIN-rail mounting

  • Housing

    • Metal

  • Dimensions

    • 134 x 60.4 x 120 mm (5.28 x 2.38 x 4.72 in)

  • Weight

    • Product only: 1.40 kg (0.63 lb)
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
Power Parameters

  • Power Button

    • ON/OFF (rear panel)
      Reset button

  • Input Voltage

    • 9 to 36 VDC
Environmental Limits

  • Storage Temperature

    • -40 to 75°C (-40 to 185°F)

  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Shock

    • IEC 60068-2-27
Standards and Certifications

  • Safety

    • UL 60950-1, UL 62368-1, EN 60950-1, EN 62368-1

  • EMC

    • EN 55032/35, CISPR 32, FCC Part 15B Class A
Reliability

  • Alert Tools

    • Built-in RTC (real-time clock) with lithium battery backup
Warranty
