Moxa 工业级平板电脑和显示器采用强固型设计，以应对各种环境，是户外、危险以及海事环境中的 HMI 应用理想之选。产品通过了 DNV GL 和 CCS 等海事标准认证。

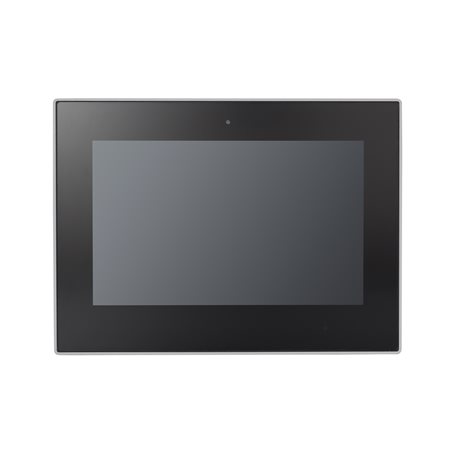

EXPC-F2120W-TL3-AC
EXPC-F2120W 系列

12.1-inch flat-panel fanless industrial computer with Intel® Core™ i3-1115G4E processor, 1200-nit PCAP touchscreen, 4 Ethernet ports, 3 serial ports, 1 VGA port, 1 DisplayPort, 100 to 240 VAC power input, IP66 (front), IP42 (rear), -40 to 70°C operating temperature

Computer

  • CPU

    • TL1 Models: Intel® Celeron® 6305E
      TL3 Models: Intel® Core™ i3-1115G4E
      TL7 Models: Intel® Core™ i7-1185G7E

  • Graphics Controller

    • Intel® Core™ i7 Models: Intel® Iris® Xe Graphics
      Intel® Celeron®, Core™ i3 Models: Intel® UHD Graphics

  • System Memory Pre-installed

    • 16 GB (64 GB max)

  • System Memory Slot

    • SODIMM DDR4 slots x 2, up to 64 GB

  • Pre-installed OS

    • OS is not pre-installed
      OS installation via CTOS

  • Supported OS

    • Windows 10 Enterprise LTSC 21H2
      Windows 11 Professional 23H2 64-bit
      Debian 11 (driver)

  • Storage Slot

    • M.2 B key x 1 for SSD (internal, optional)
      CFexpress slots x 1 (external, default)
Computer Interface

  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4

  • Serial Ports

    • RS-232/422/485 ports x 3, software selectable (DB9 male)

  • USB 3.0

    • USB 3.0 hosts x 2, type-A connectors

  • USB 2.0

    • USB 2.0 hosts x 2, type-A connectors

  • Audio Input/Output

    • Line in x 1, mic-out x 1, 3.5 mm phone jack

  • Video Output

    • DisplayPort x 1
      VGA x 1, 15-pin D-sub connector (female)

  • Expansion Slots

    • M.2 B key slot x 1 for 5G module
      M.2 E key slot x 1 for Wi-Fi module

  • TPM

    • TPM v2.0

  • Remote Management

    • Intel® Active Management Technology (AMT) support
LED Indicators

  • System

    • Power x 1
      Storage x 1, SSD

  • LAN

    • 2 per port, configurable by BIOS settings or via a Moxa software utility

  • Serial

    • 2 per port, configurable by BIOS settings or via a Moxa software utility
Display

  • Active Display Area

    • 304.128 (H) x 228.096 (V) mm

  • Aspect Ratio

    • 16:10

  • Contrast Ratio

    • 750:1

  • Light Intensity (Brightness)

    • 1200 nits

  • Max. No. of Colors

    • 16.7M (8-bit/color)

  • Panel Size

    • 12.1 in

  • Panel Type

    • AWV

  • Pixel Pitch (RGB)

    • 0.294 (H) x 0.294 (V) mm

  • Pixels

    • 1280 x 800

  • Response Time

    • 18 ms (TR, gray to gray)
      12 ms (TD, gray to gray)

  • Viewing Angles

    • Horizontal: 85°/85°
      Vertical: 85°/85°
Touch Function

  • Touch Type

    • Projective Capacitive touchscreen (PCAP)
      GGG sensor with optical bonding

  • Touch Support Points

    • 4 points
      (max multi-touch points)
      1 point
      (glove-friendly design)
Serial Interface

  • Baudrate

    • 50 bps to 115.2 kbps

  • Data Bits

    • 5, 6, 7, 8

  • Flow Control

    • RTS/CTS, XON/XOFF
      ADDC (automatic data direction control) for RS-485
      RTS Toggle (RS-232 only)

  • Parity

    • None, Even, Odd, Space, Mark

  • Stop Bits

    • 1, 1.5, 2
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Power Parameters

  • Input Voltage

    • DC Models: 9 to 36 VDC
      AC Models: 100 to 240 VAC

  • Power Consumption

    • 60 W (max)
      100 W (with thermal heater)
Physical Characteristics

  • Housing

    • Aluminum

  • IP Rating

    • IP66 (front)
      IP42 (rear; with all IOs plugged in)

  • Dimensions

    • 336.69 x 255.17 x 94.05 mm (13.25 x 10.05 x 3.70 in)

  • Weight

    • 6,200 g (13.67 lb)
Environmental Limits

  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    • -45 to 75°C (-49 to 167°F)

  • Altitude

    • 3000 m
Standards and Certifications

  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; 1.8, 2.6, 3.5, 5 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 2 kV(AC), 1 kV(DC); Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV (AC), 0.5 kV (DC L-L), 1 kV (DC L-G); Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Hazardous Locations

    • EN / IEC 60079-0
      EN / IEC 60079-7
      EN / IEC 60079-15
      Certification process underway

  • Mechanical Protection Rating

    • IEC 60529, IP code

  • Safety

    • UL 62368-1
      EN 62368-1
      IEC 62368-1

  • Shock

    • IEC 60068-2-27 compliant (with CFexpress card, 20G)

  • Vibration

    • IEC 60068-2-27 compliant (with CFexpress card, 20G)

  • UV Protection

    • IEC60068-2-5
      CIE85: 300 to 3000 nm (included UV, visible, IR); 1000 hrs (procedure C; continuously for 24 hrs)
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
Warranty
