WLAN 天线

Moxa 提供多种 WLAN 天线,安装简单,简化无线网络部署。

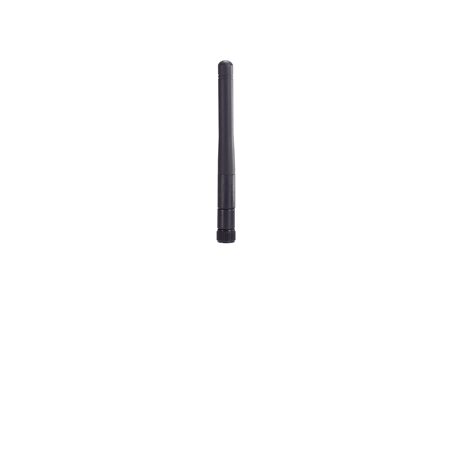

ANT-WDB-ARM-02
ANT-WDB-ARM-02 系列

2.4/5 GHz, omni-directional rubber duck antenna, 2 dBi, RP-SMA (male)

Antenna Characteristics
  • Frequency

    • 2.4 to 2.5, 5.2 to 5.8 GHz
  • Antenna Type

    • Omni-directional
  • Typical Antenna Gain

    • 2/2 dBi
  • Connector

    • RP-SMA (male)
  • Impedance

    • 50 ohms
  • Polarization

    • Vertical
  • HPBW/Horizontal

    • 360°
  • HPBW/Vertical

    • 80°
  • V.S.W.R.

    • 2:1 max.
Physical Characteristics
  • Weight

    • 10 g (0.02 lb)
  • Length

    • 108 mm (4.25 in)
  • Radome Color

    • Black
  • Radome Material

    • Plastic
  • Installation

    • Straight mount
Environmental Limits
  • Operating Temperature

    • -40 to 80°C (-40 to 176°F)
  • Storage Temperature (package included)

    • -40 to 80°C (-40 to 176°F)
  • Ambient Relative Humidity

    • 5 to 95% (30°C, non-condensing)
Warranty
