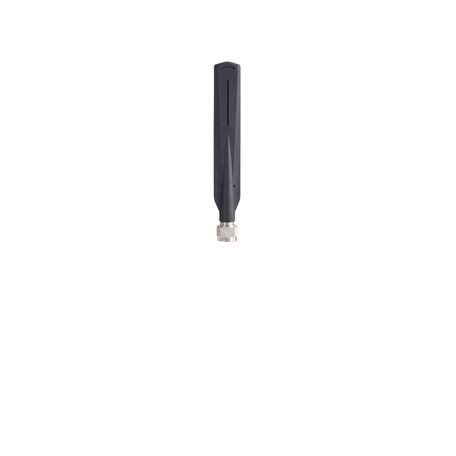

ANT-WDB-ANM-0502
ANT-WDB-ANM-0502 系列

2.4/5 GHz, omni-directional antenna, 5/2 dBi, N-type (male)

Antenna Characteristics
  • Frequency

    • 2.4 to 2.5, 5.1 to 5.9 GHz
  • Antenna Type

    • Omni-directional
  • Typical Antenna Gain

    • 5/2 dBi
  • Connector

    • N-type (male)
  • Impedance

    • 50 ohms
  • Polarization

    • Linear
  • HPBW/Horizontal

    • 360°
  • HPBW/Vertical

    • 65°
  • V.S.W.R.

    • 1:2 max.
  • Power Handling

    • 2 W (max.)
Physical Characteristics
  • Weight

    • 72 g (0.16 lb)
  • Length

    • 220 mm (8.66 in)
  • Diameter

    • 23 mm (0.91 in)
  • IP Rating

    • IP67
  • Radome Color

    • Black
  • Radome Material

    • NY66
  • Installation

    • Straight mount
Environmental Limits
  • Operating Temperature

    • -40 to 80°C (-40 to 176°F)
  • Storage Temperature (package included)

    • -40 to 80°C (-40 to 176°F)
  • Ambient Relative Humidity

    • 5 to 95% (30°C, non-condensing)
Warranty
