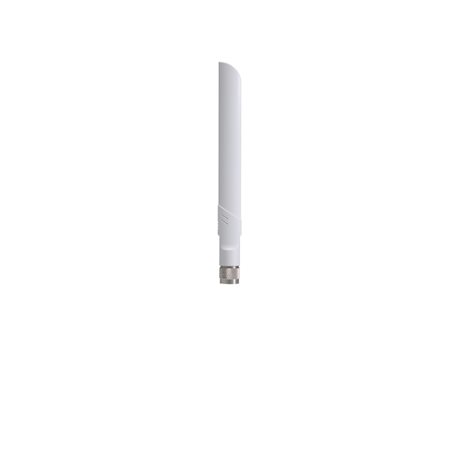

ANT-WDB-ANM-0306
ANT-WDB-ANM-0306 系列

2.4/5 GHz, omni-directional antenna, 3/6 dBi, N-type (male)

Antenna Characteristics
  • Frequency

    • 2.4 to 2.5, 4.9 to 5.825 GHz
  • Antenna Type

    • Omni-directional
  • Typical Antenna Gain

    • 3.5/6 dBi
  • Connector

    • N-type (male)
  • Impedance

    • 50 ohms
  • Polarization

    • Linear
  • HPBW/Horizontal

    • 360°
  • V.S.W.R.

    • 2:1 max.
  • Power Handling

    • 1 W max.
Physical Characteristics
  • IP Rating

    • IP67
  • Dimensions

    • Diameter: 22 mm (0.87 in)
      Length: 215 mm (8.46 in)
  • Weight

    • 68.9 g (0.15 lb)
  • Radome Color

    • White
  • Radome Material

    • PC-9330
  • Installation

    • Straight mount
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (30°C, non-condensing)
Warranty
