NPort 6100-G2/6200-G2 系列

第 2 代 1/2 端口 RS-232/422/485 安全终端服务器

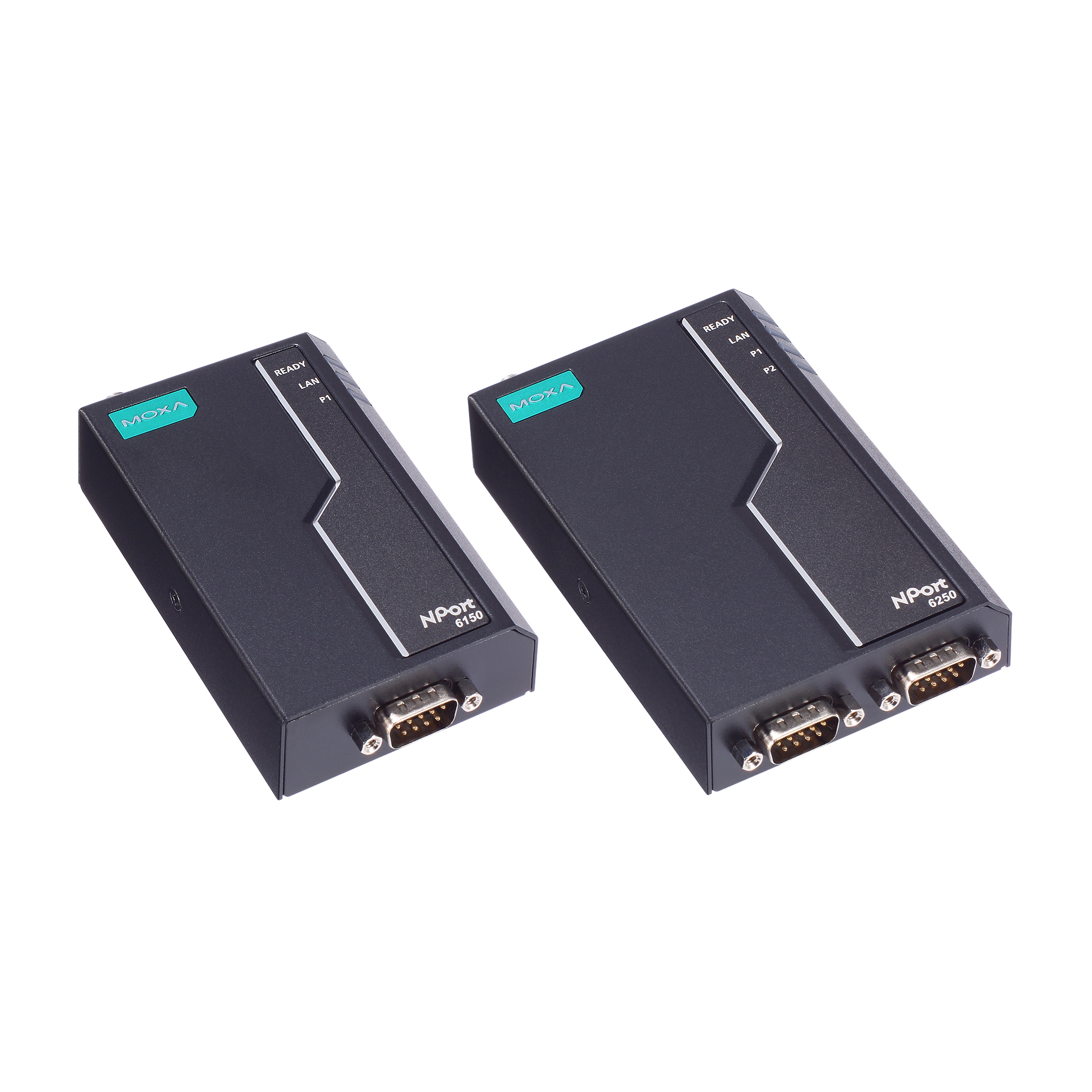

moxa-nport-6100-g2-6200-g2-series-image-(1).jpg | Moxa

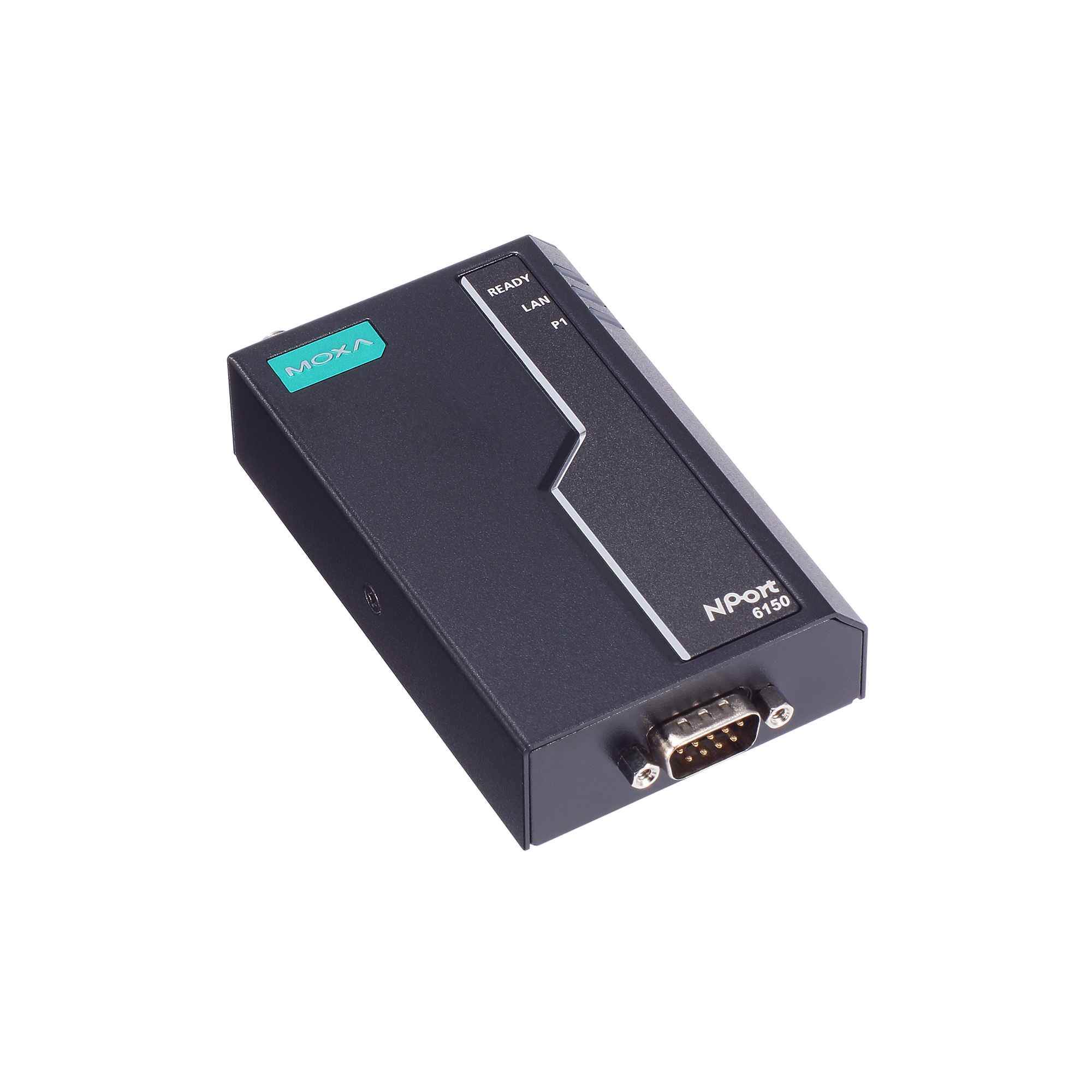

moxa-nport-6100-g2-6200-g2-series-image-1-(1).jpg | Moxa

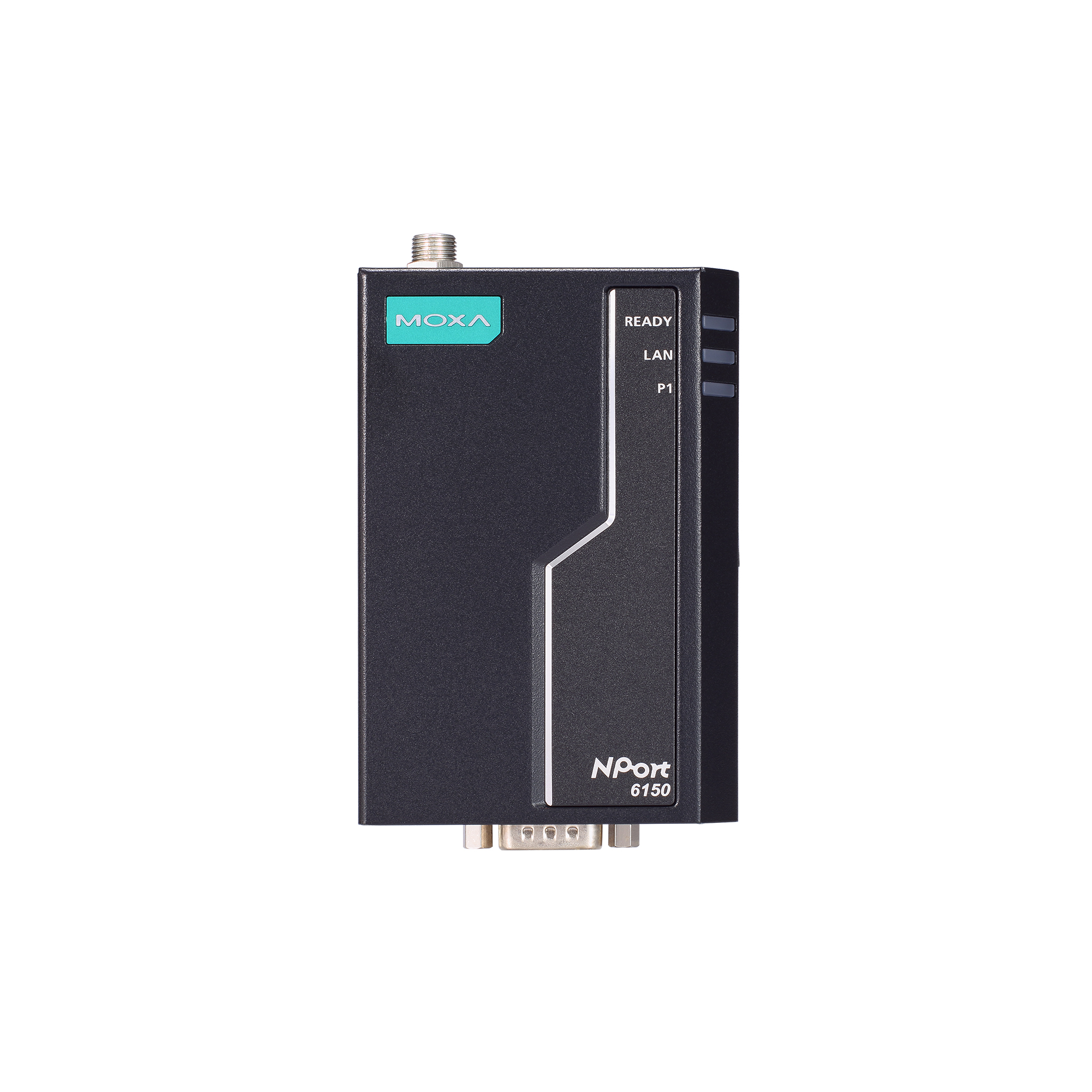

moxa-nport-6100-g2-6200-g2-series-image-2-(1).jpg | Moxa

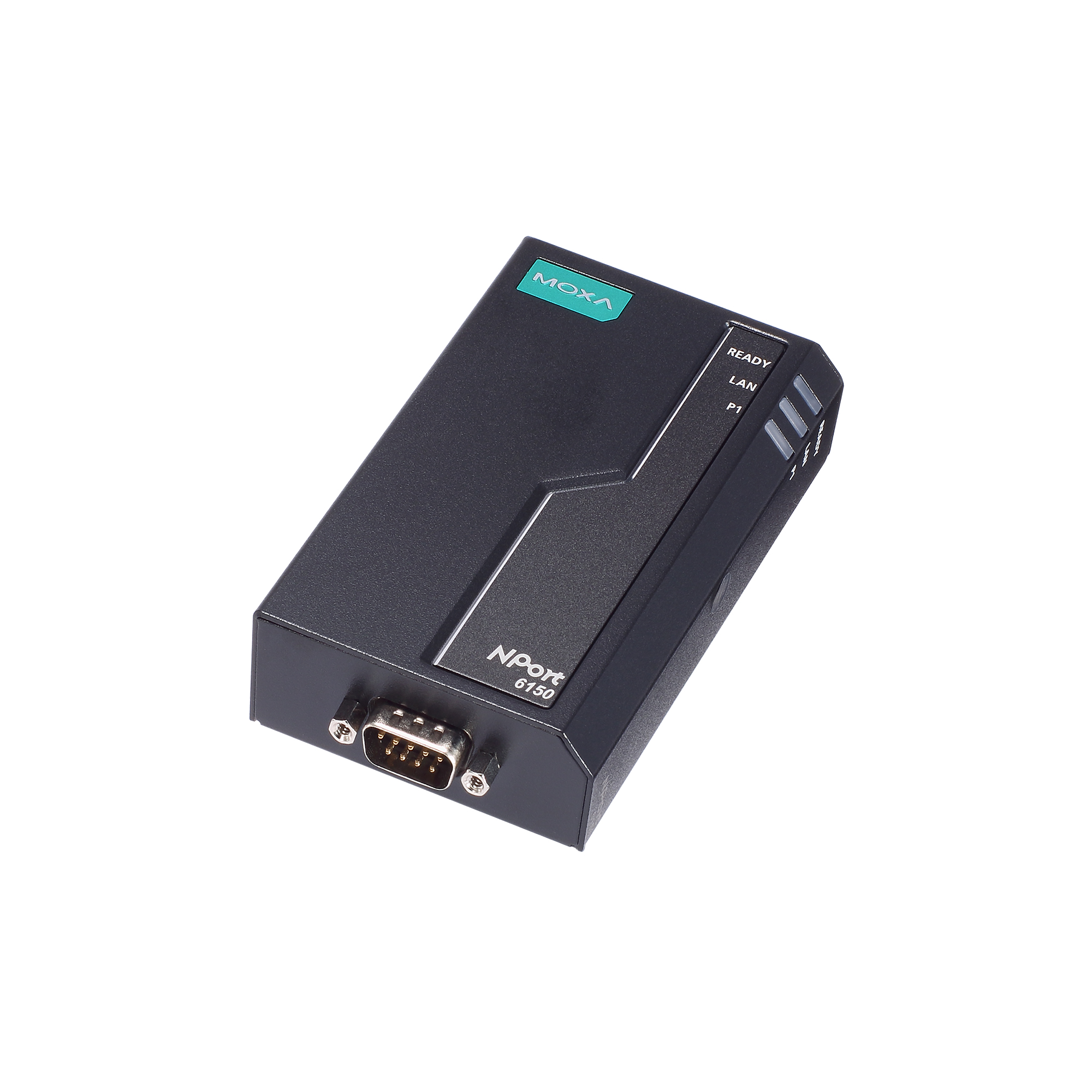

moxa-nport-6100-g2-6200-g2-series-image-3-(1).jpg | Moxa

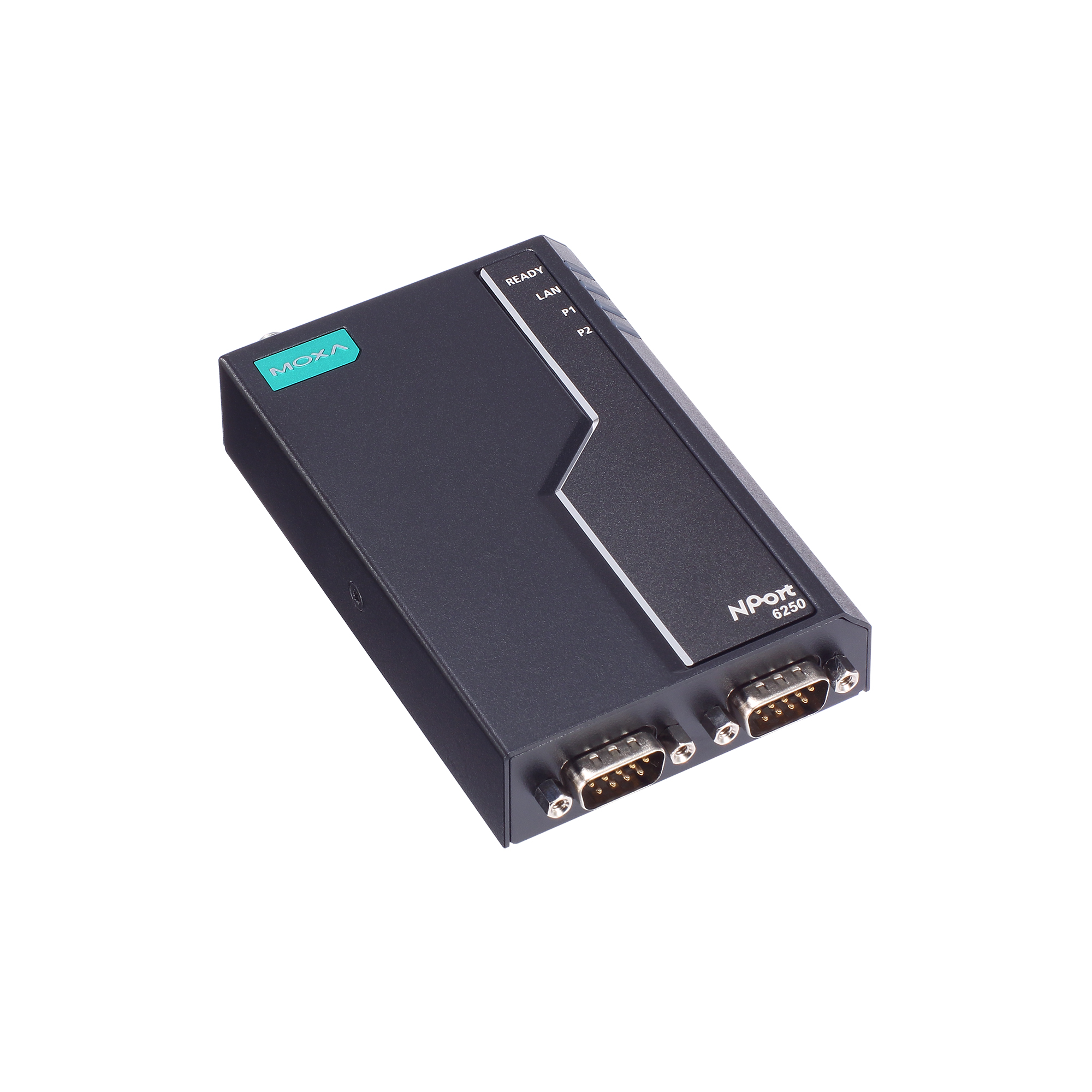

moxa-nport-6100-g2-6200-g2-series-image-4-(1).jpg | Moxa

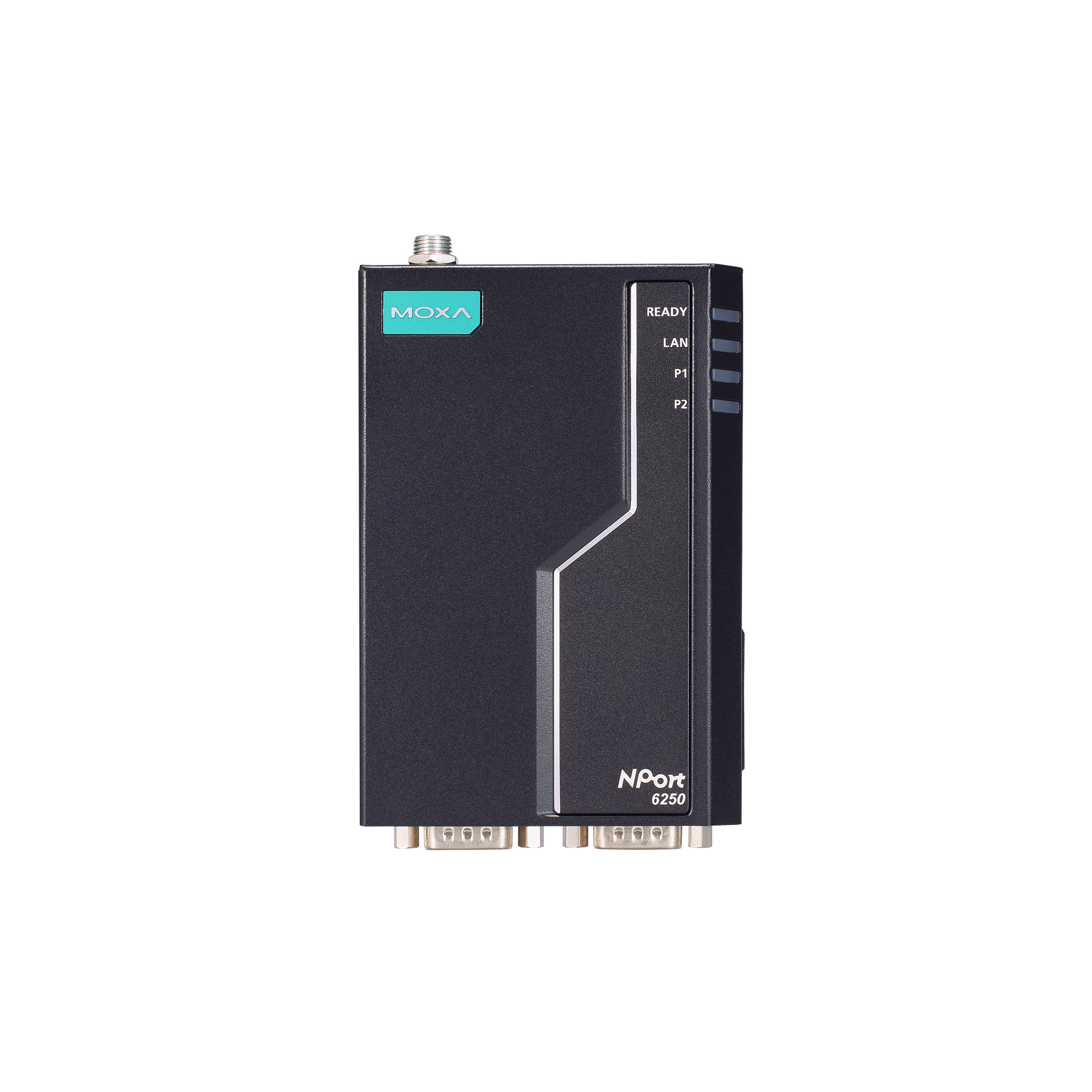

moxa-nport-6100-g2-6200-g2-series-image-5-(1).jpg | Moxa
moxa-nport-6100-g2-6200-g2-series-image-6-(1).jpg | Moxa

特点和优势

  • 使用安全的 Real COM、TCP Server、TCP Client、Pair Connection、Terminal 和 Reverse Terminal 安全运行模式进行数据加密
  • 支持 RSA-4096 / ECC-521 SSL 认证签署
  • 安全启动仅允许 Moxa 授权的固件在设备上运行
  • 侧面安装选项和双面 LED 可满足各类安装情况并实现系统小型化
  • 串行界面的简单 RS-485 配置,具有软件可调式上拉/下拉电阻器和终端器

认证

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-nema-ts2-certification-logo-image.png | Moxa

联系销售人员

介绍

Moxa 利用 IEC 62443-4-1 安全开发生命周期流程开发了新一代安全终端服务器。NPort 6100-G2/6200-G2 系列安全终端服务器遵循 IEC 62443-4-2 设计和指南,可将传统串行设备安全地连接到工业网络。此外,基于 Moxa 在串行连接领域积累的 35 年经验,Moxa 可根据不同的空间要求提供多种安装方式,并提供便于维护的故障排除工具,提升用户体验。

安全数据传输

对于很多应用来说,串口设备联网后如何保障数据传输的安全性是一项重要问题。为解决这一问题,NPort® 6100-G2/6200-G2 安全终端服务器采用 SSL 和 SSH 协议对数据进行加密,然后再通过网络发送数据。利用 NPort® 6100-G2/6200-G2,您可确保串口数据能够通过私有和公共网络安全发送。

通过侧面安装和软件可配置式上拉/下拉电阻器和终端器轻松配置

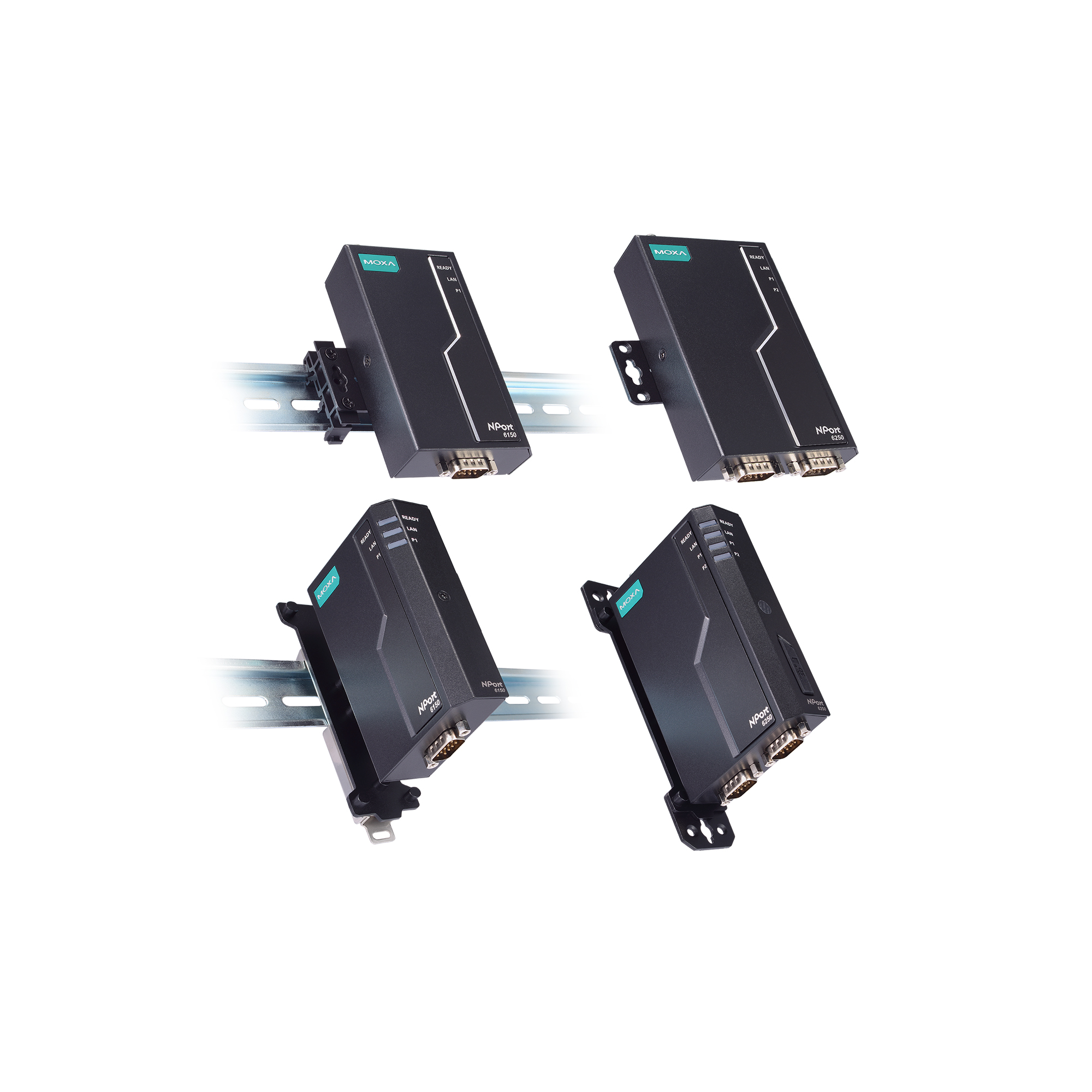

为顺应系统小型化和安装简易化的趋势,NPort® 6100-G2/6200-G2 安全终端服务器支持侧面安装和双面 LED,以适应各种安装场景,并实现系统尺寸缩小的额外安装优势。可软件配置的上拉/下拉电阻器和终端器功能无需打开机箱即可调整上拉/下拉电阻或终端器,便于操作人员在现场安装设备。

一键收集日志,轻松排除故障

在维护阶段,系统错误可能需要您寻求帮助。设备供应商可能需要很长时间才能排除故障,因为他们需要收集信息,然后与技术支持团队进行讨论。NPort 6100-G2/6200-G2 具有一键式日志收集功能,可以记录数据,提供技术支持团队快速排除系统故障所需的所有数据。

  • SD 插槽

    NPort 6200-G2 型号:
    microSD 卡
    最多 2 TB(高速,25 Mbps)

  • 10/100BaseT(X) 端口(RJ45 接头)

    1
    自动 MDI/MDI-X 连接

  • 电磁隔离保护

    1.5 kV(内置)

  • 配置选项

    Web Console (HTTP/HTTPS)
    Windows 管理工具
    设备搜寻工具 (DSU)
    MCC 工具
    串口 Console

  • 管理

    ARP
    DHCP Client
    DNS
    HTTPS
    ICMP
    IPv4/IPv6
    SMTP
    SMTPS
    SNMPv1/v2c/v3
    SNTP
    TCP/IP
    UDP
    WINS

  • Windows Real COM 驱动程序

    Windows 11、10、8.1、8 和 7
    Windows Server 2022、2019、2016、2012 R2、2012 和 2008 R2

  • Linux Real TTY 驱动程序

    内核版本 6.x、5.x 和 4.x

  • Fixed TTY 驱动程序

    macOS 版本:14、13、12 和 11

  • 支持基于 Arm® 的平台

    Windows 11
    Linux 内核 6.x、5.x 和 4.x
    macOS 14、13、12 和 11

  • 虚拟机

    VMWare ESXi(Windows 11/10/8.1/8/7 和 Linux 6.x、5.x 和 4.x)
    VMware Fusion(Windows on macOS 14、13、12 和 11)
    Parallels Desktop(macOS 14、13、12 和 11 上的 Windows)

  • 对时服务

    SNTP Client

  • MIB

    MIB-II
    RFC1213、RFC1317
    私有 MIB

  • 单播路由

    RIPV1/V2
    静态路由

  • 可信根

    安全启动
    真随机数生成器 (TRNG)
    安全螺丝

  • 认证

    本地数据库
    RADIUS
    TACACS+

  • 加密

    AES-128
    AES-256
    ECC-256
    ECC-384
    ECC-521
    HMAC
    RSA-1024
    RSA-2048
    RSA-3072
    RSA-4096
    SHA-256
    SHA-384

  • 安全协议

    HTTPS (TLS 1.2)
    SNMPv3
    SSHv2

  • 接头

    DB9 公头

  • 端口数量

    NPort 6150-G2 型号:1
    NPort 6250-G2 型号:2

  • 串口标准

    RS-232
    RS-422
    RS-485

  • 安全运行模式

    反向 SSH
    安全配对连接
    安全 Real COM
    安全 TCP Client
    安全 TCP Server
    SSH

  • 标准运行模式

    禁用
    Pair Connection
    SLIP
    PPP
    Real COM
    Reverse Terminal
    RFC2217
    TCP Client
    TCP Server
    Terminal
    UDP

  • 波特率

    50 bps 至 921.6 kbps(支持非标准波特率)

  • 数据位

    5、6、7、8

  • 停止位

    1、1.5、2

  • 流量控制


    RTS/CTS
    DTR/DSR
    RTS Toggle
    XON/XOFF

  • 校验位

    无、偶、奇、Space、Mark

  • RS-485 数据流向控制

    数据流向自动控制 (ADDC)

  • RS-485 终端电阻

    120 Ω

  • RS-485 上拉电阻/下拉电阻

    kΩ,150 kΩ
    (软件可配置)

  • RS-232

    TxD、RxD、RTS、CTS、DTR、DSR、DCD、GND

  • RS-422

    Tx+、Tx-、Rx+、Rx-、GND

  • RS-485-4w

    Tx+、Tx-、Rx+、Rx-、GND

  • RS-485-2w

    Data+、Data-、GND

  • 输入电流

    12 至 48 VDC,160 mA(最大值)

  • 输入电压

    12 至 48 VDC

  • 自动重启触发器

    内置 WDT(看门狗定时器)

  • 报警工具

    内置蜂鸣器和 RTC(实时时钟)

  • 外壳

    金属

  • 尺寸(有挂耳)

    NPort 6150-G2 型号:64 x 111.8 x 25 mm(2.52 x 4.4 x 0.98 英寸)
    NPort 6250-G2 型号:76.3 x 122.4 x 25 mm(3 x 4.82 x 0.98 英寸)

  • 重量

    产品带包装:
    NPort 6150-G2:228 g (0.50 lb);437 g (0.96 lb)
    NPort 6150-G2-T:228 g (0.50 lb);302 g (0.67 lb)
    NPort 6250-G2:278 g (0.61 lb);487 g (1.07 lb)
    NPort 6250-G2-T:278 g (0.61 lb);352 g (0.78 lb)

  • 安装

    台式
    导轨式安装(带可选套件)
    壁挂式安装(附可选套件)
    侧面平板安装(带可选套件)

  • 工作温度

    标准型号:-10 至 60°C(14 至 140°F)
    带电源适配器(盒装)的标准型号:
    0 至 40°C(32 至 104°F)
    宽温型号:-40 至 75°C(-40 至 167°F)

  • 存储温度(含包装)

    -40 至 75°C(-40 至 167°F)

  • 相对湿度

    5 至 95%(非冷凝)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD:接触:4 kV;空气:8 kV
    IEC 61000-4-3 RS:80 MHz 至 1 GHz:3 V/m
    IEC 61000-4-4 EFT:电源:1 kV(AC),0.5 kV(DC);信号:0.5 kV
    IEC 61000-4-5 Surge:电源:1 kV(AC),0.5 kV(DC);信号:0.5 kV
    IEC 61000-4-6 CS:3 V
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • 交通控制

    NEMA TS2

  • 振动

    IEC 60068-2-6

  • 包装掉落试验

    ISTA 1A

  • 安全

    IEC 62368-1
    UL 62368-1
    EN 62368-1

  • 国际认证

    KC

  • 绿色产品

    RoHS、CRoHS、WEEE

  • 时间

    NPort 6150-G2/6150-G2-T:3,843,653 小时
    NPort 6250-G2/6250-G2-T:3,351,651 小时

  • 标准

    Telcordia 标准 SR-332
    Telcordia SR-332 Issue 4
