二层网管型交换机

Moxa 二层网管型交换机具备工业级可靠度、网络冗余功能，安全特性符合 IEC 62443 标准。我们强化产品设计，以满足特定行业需求，符合多种行业认证，例如轨道应用的 EN 50155 标准相关的部分要求、电力自动化系统的 IEC 61850-3 标准、智能运输系统的 NEMA TS2等。

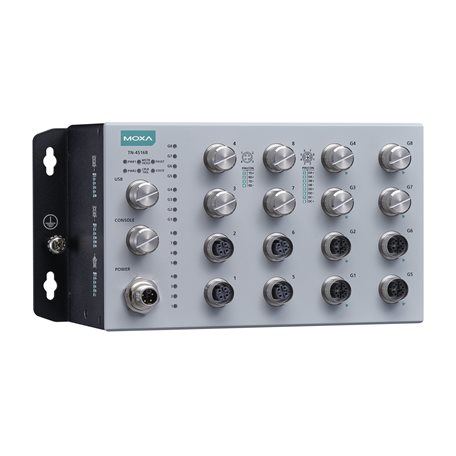

TN-4516B-8G-CT-T
TN-4500B 系列

EN 50155 16-port L2 switch including 8 FE ports, 8 Gigabit ports, 24 to 110 VDC power input, -40 to 70°C operating temperature, IP42, conformal coating

Ethernet Interface

  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

    • 8

  • 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)

    • 8

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3af/at for PoE/PoE+ output
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for authentication
      IEEE 802.3x for flow control
Ethernet Software Features

  • Configuration Options

    • Command Line Interface (CLI) through Serial/Telnet/SSH
      Web Console (HTTP/HTTPS)
      Windows Utility

  • Filter

    • GMRP
      GVRP
      GARP
      802.1Q VLAN
      IGMP Snooping v1/v2/v3
      IGMP Querier
      Static Multicast

  • Management

    • IPv4/IPv6
      Flow control
      Back Pressure Flow Control
      DHCP Server
      DHCP Client
      DHCP Relay Agent (Option 82)
      QoS/CoS/ToS
      ARP
      RARP
      LLDP
      Port Mirror
      Linkup Delay
      SMTP
      SNMP Trap
      SNMP Inform
      SNMPv1/v2c/v3
      RMON
      TFTP
      SFTP
      HTTP
      HTTPS
      Telnet
      Syslog
      Private MIB
      Loop Protection

  • MIB

    • P-BRIDGE MIB
      Q-BRIDGE MIB
      Ethernet-like MIB
      IEEE8021-SPANNING-TREE-MIB
      IEEE8021-PAE-MIB
      IEEE8023-LAG-MIB
      LLDP-EXT-DOT1-MIB
      LLDP-EXT-DOT3-MIB
      SNMPv2-MIB
      RMON MIB Groups 1, 2, 3, 9

  • Redundancy Protocols

    • STP
      RSTP
      MSTP
      Turbo Ring v2
      Link Aggregation
      Ring Coupling
      Static Port Trunk
      LACP
      MRP

  • Security

    • Rate Limit
      Trust access control
      Port Lock
      Sticky MAC
      HTTPS/SSL
      SSH
      RADIUS
      TACACS+
      Access control list
      Login and password policy
      DHCP Snooping

  • Time Management

    • SNTP Server/Client
      NTP Server/Client
Switch Properties

  • MAC Table Size

    • 16 K

  • IGMP Groups

    • 1024

  • Max. No. of VLANs

    • 256

  • VLAN ID Range

    • VID 1 to 4094

  • Priority Queues

    • 8
LED Interface

  • LED Indicators

    • PWR1, PWR2, FAULT, STATE, MSTR/HEAD, CPLR/TAIL, Ethernet ports, PoE ports
Serial Interface

  • Console Port

    • M12 B-coded 5-pin female connector (RS-232)
USB Interface

  • M12 Connector

    • M12 A-coded 5-pin female (for ABC-02 USB storage)
Power Parameters

  • Input Current

    • 0.83 A @ 24 VDC

  • Input Voltage

    • 24/36/48/72/96/110 VDC
      Redundant dual inputs
      No. of power inputs: 2

  • Operating Voltage

    • 16.8 to 137.5 VDC

  • Power Connector

    • M12 K-coded 5-pin male connector

  • Overload Current Protection

    • Supported

  • Reverse Polarity Protection

    • Supported
Physical Characteristics

  • Housing

    • Metal

  • Dimensions

    • 230 x 115 x 98 mm (9.06 x 4.53 x 3.86 in)

  • IP Rating

    • IP42

  • Weight

    • 1,500 g (2.48 lb)

  • Installation

    • Wall mounting

  • Protection

    • PCB conformal coating
Environmental Limits

  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Altitude

    • 3000 m
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Radio Frequency

    • FCC

  • Railway

    • IEC 60068-2-1, EN 50155
      IEC 60068-2-2, EN 50155
      IEC 60068-2-30, EN 50155
      IEC 60068-2-78
      EN 50121-4
      EN 50155
      IEC 60571

  • Railway Fire Protection

    • EN 45545-2

  • Safety

    • UL 62368-1
      IEC 62368-1
      EN 62368-1
      BSMI

  • Salt Spray Test

    • EN 50155

  • Shock

    • IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    • IEC 60068-2-64, IEC 61373, EN 50155

  • Package Vibration Test

    • ISTA 1A

  • Package Drop Test

    • ISTA 1A
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 1,148,405 hrs

  • Standards

    • Telcordia SR332 Issue 4
Warranty
