CP-114N 系列

4 端口 RS-232/422/485 Mini PCI Express 串口卡

moxa-cp-114n-series-image-(1).jpg | Moxa

特点和优势

  • Mini PCIe 接口支持
  • 串口传输速率最高可达 921.6 kbps
  • 128-byte FIFO 和芯片集成的 H/W、S/W 流量控制
  • 支持多种操作系统驱动程序,包括 Windows、Linux 和 UNIX

认证

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

联系销售人员

介绍

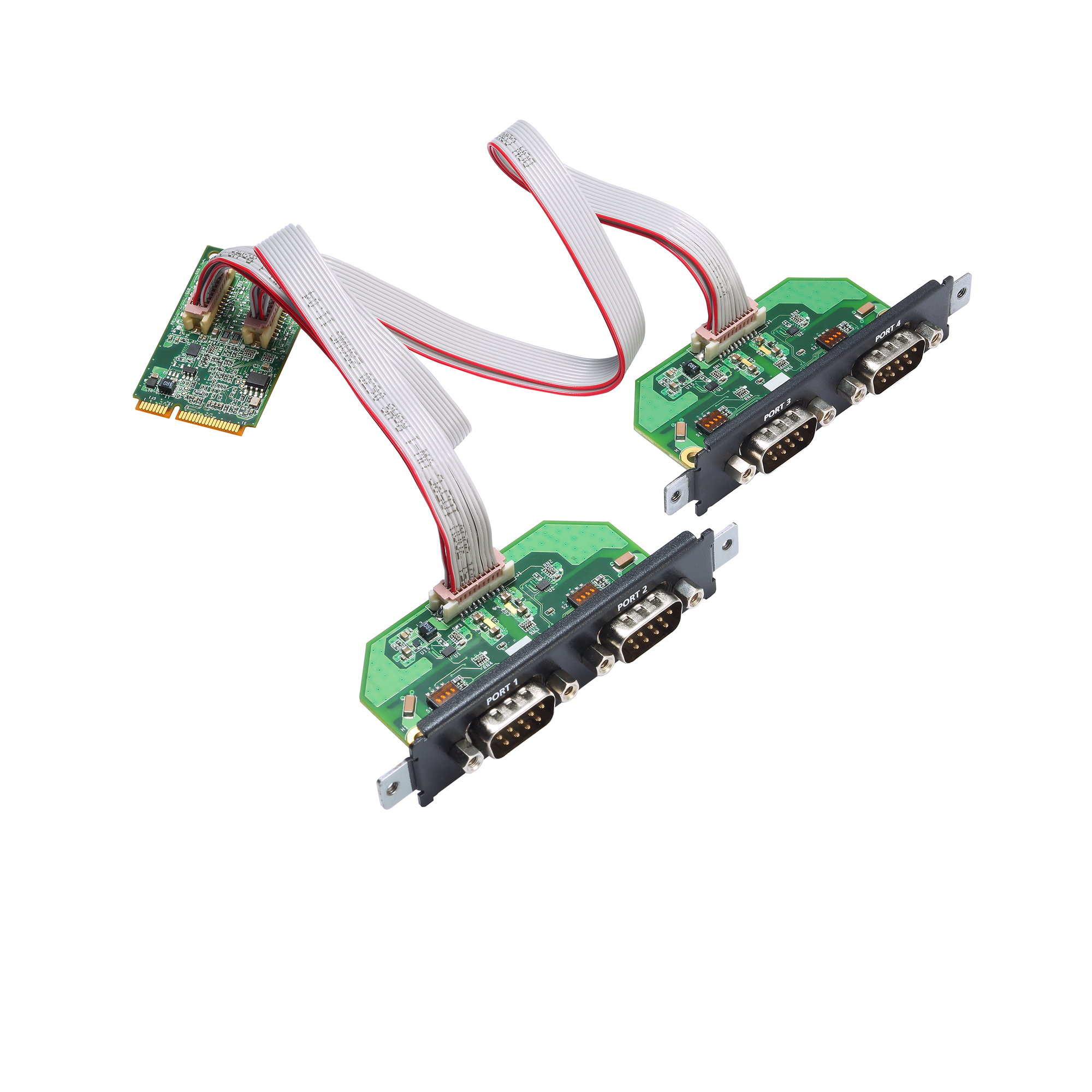

CP-114N 是一款 Mini-PCI-Express 多端口串口卡,专为工业自动化系统和工业 PC 制造商等各种应用而设计。CP-114N 与任何 Mini PCI Express 插槽均兼容。此卡仅需 3.3 VDC 电源输入,即,可用于从导轨式 PC 到标准规格 PC 的主机。

CP-114N 是工业自动化工程师和系统集成商的首选,支持 Windows 和 Linux 操作系统。 此外,四个 RS-232/422/485 串口还支持高达 921.6 kbps 传输速率。CP-114N 提供全调制解调器控制信号,以确保与广泛的串口外设兼容。此串口卡还提供 1 kV 线对线浪涌保护,以确保在广泛的工业环境中的兼容性。



一种新型 Mini PCI Express 多端口串口卡系列,可加快上市时间

Moxa 的新型 Mini PCI Express 多端口串口卡系列满足了定制扩展的需求,并为 OEM 和系统集成商缩短了上市时间。其包括隔离和非隔离 RS-232/422/485 通信卡,适用于各种应用。

串口卡具有高性能 16C950 兼容 UART,可提供 4 端口和 2 端口版本,与所有现行操作系统兼容。 它们支持高达 921.6 kbps 的数据传输速率,并具有 128 字节的发送和接收 FIFO。串口卡可工作在 -40 至 85˚C 的温度范围内。所有型号的包中都包含门背板,因而可将串口卡安装在 Moxa IPC 扩展插槽中。



  • 通信控制器

    兼容 16C550C

  • 总线

    Mini PCI Express

  • 接头

    DB9 公头

  • FIFO

    128 bytes

  • 端口数量

    4

  • 波特率

    50 bps 至 921.6 kbps(支持非标准波特率)

  • 数据位

    5、6、7、8

  • 停止位

    1、1.5、2

  • 校验位

    无、偶、奇、Space、Mark

  • 流量控制

    无、RTS/CTS、XON/XOFF

  • 串口标准

    RS-232/422/485(软件可选)

  • RS-232

    TxD、RxD、RTS、CTS、DTR、DSR、DCD、GND

  • RS-422

    Tx+、Tx-、Rx+、Rx-、GND

  • RS-485-2w

    Data+、Data-、GND

  • RS-485-4w

    Tx+、Tx-、Rx+、Rx-、GND

  • Windows 驱动程序

    Windows 7/8/8.1/10/11 (x86/x64)、Windows 2008 R2/2012/2012 R2/2016/2019 (x64)、Windows Server 2022

  • Linux 驱动程序

    Linux 内核 4.x、Linux 内核 5.x

  • 输入电流

    557 mA @ 3.3 VDC

  • 尺寸

    30 x 50.95 mm(1.18 x 2 英寸)

  • 工作温度

    -40 至 85°C(-40 至 185°F)

  • 存储温度(含包装)

    -20 至 85°C(-4 至 185°F)

  • 相对湿度

    5 至 95%(非冷凝)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32,FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD:接触:4 kV;空气:8 kV
    IEC 61000-4-3 RS:80 MHz 至 1 GHz:3 V/m
    IEC 61000-4-4 EFT:电源:1 kV;信号:0.5 kV
    IEC 61000-4-5 Surge:电源:2 kV;信号:1 kV
    IEC 61000-4-6 CS:150 kHz 至 80 MHz:3 V/m;信号:3 V/m
    IEC 61000-4-8 PFMF

  • 绿色产品

    RoHS、CRoHS、WEEE

  • 时间

    3,077,789 小时

  • 标准

    Telcordia (Bellcore) 标准 TR/SR

软件、固件和驱动程序

筛选

名称 类型 校驗和 版本 操作系统 发布日期
Linux Kernel 6.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
181.9 KB
驱动程序
SHA-512
v6.0
  • Linux Kernel 6.x
2023年7月31日 2023年7月31日 发布说明
Linux Kernel 4.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
161.1 KB
驱动程序
SHA-512
v4.2
  • Linux Kernel 4.x
2023年1月17日 2023年1月17日 发布说明
Linux Kernel 5.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
162.0 KB
驱动程序
SHA-512
v5.2
  • Linux Kernel 5.x
2023年1月17日 2023年1月17日 发布说明
Driver for Multiport Serial PCI Express Boards (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
6.4 MB
驱动程序
SHA-512
v3.1
  • Windows 10
  • Windows 10
  • Windows 7
  • Windows 7
  • Windows 8
  • Windows 8
  • Windows 8.1
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2019
  • Windows Server 2022
  • Windows Server 2022
2022年9月6日 2022年9月6日 发布说明
Driver for Multiport Serial PCI Express Boards (Windows 11 and Windows Server 2022)
4.1 MB
驱动程序
SHA-512
v4.0
  • Windows 11
  • Windows Server 2022
2022年9月2日 2022年9月2日 发布说明
Driver for Linux kernel 5.x.x
152.9 KB
驱动程序
SHA-512
v5.1
  • Linux Kernel 5.x
2021年10月25日 2021年10月25日 发布说明
Driver for Linux kernel 4.x.x
154.1 KB
驱动程序
SHA-512
v4.1
  • Linux Kernel 4.x
2021年10月25日 2021年10月25日 发布说明

支持文件

名称 类型 语言 版本 发布日期
Mini PCI Express Multiport Serial Board Series Quick Installation Guide
4.3 MB
QIG 英文 v1.1 2023年1月30日 2023年1月30日
Mini PCI Express Multiport Serial Board Series User Manual
10.9 MB
手册 英文 v1.0 2023年1月17日 2023年1月17日
CP-114N 系列产品资料
2.2 MB
产品资料表 中文 v1.0 2023年1月16日 2023年1月16日
