CP-114EL 系列

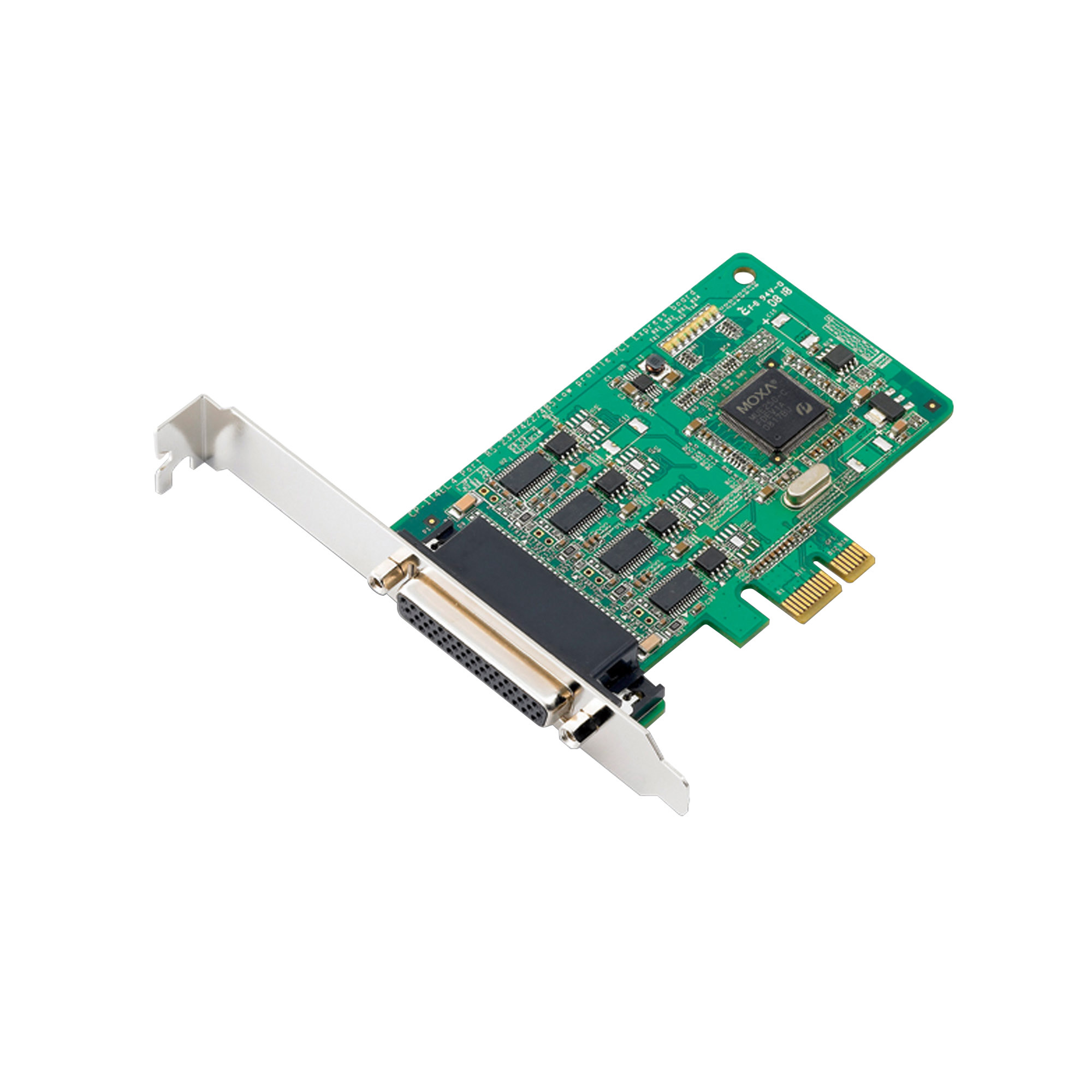

4 端口 RS-232/422/485 PCI Express 卡,可选带 2 kV 光电隔离保护

moxa-cp-114el-series-image-1-(1).jpg | Moxa

特点和优势

  • 兼容 PCI Express 1.0
  • 串口传输速率最高可达 921.6 kbps
  • 128-byte FIFO 和芯片集成的 H/W、S/W 流量控制
  • 低挡板设计,适合小型 PC
  • 支持多种操作系统驱动程序,包括 Windows、Linux 和 UNIX
  • 内置 LED 指示灯和管理软件,易于维护

认证

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

联系销售人员

介绍

CP-114EL 和 CP-114EL-I 智能型 4 端口 PCI Express 多串口卡,专为 POS 和 ATM 应用而设计。此系列串口卡支持 Windows、Linux 和 UNIX 等多种不同的操作系统,是工业自动化工程师和系统集成商的首选。此外,板载的 4 个 RS-232/422/485 串口均支持高达 921.6 kbps 传输速率。CP-114EL 和 CP-114EL-I 提供全调制解调器控制信号,以确保与各种串口周边设备兼容,并符合 PCI Express x1 标准,任何 PCI Express 插槽均适合安装。



更小的规格

CP-114EL 和 CP-114EL-I 是低挡板设计板卡,兼容任何 PCI Express 插槽。此卡仅需 3.3 VDC 电源输入,适合任何尺寸的 PC 主机,从鞋盒大小至标准规格皆可。



提供 Windows、Linux 和 UNIX 驱动程序

Moxa 持续支持各种操作系统,CP-114EL/EL-I 卡也不例外。所有 Moxa 串口卡均提供可靠的 Windows 和 Linux/UNIX 驱动程序,并支持 WEPOS 等其他嵌入式应用操作系统。



  • 通信控制器

    兼容 16C550C

  • 总线

    PCI Express 1.0

  • 接头

    DB44 母头

  • FIFO

    128 bytes

  • 最大板载数

    8

  • 端口数量

    4

  • 串口标准

    RS-232、RS-422、RS-485

  • 波特率

    50 bps 至 921.6 kbps(支持非标准波特率)

  • 数据位

    5、6、7、8

  • 停止位

    1、1.5、2

  • 校验位

    无、偶、奇、Space、Mark

  • 流量控制

    无,RTS/CTS、XON/XOFF

  • 隔离保护

    CP-114EL-I 系列:2 kV

  • RS-232

    TxD、RxD、RTS、CTS、DTR、DSR、DCD、GND

  • RS-422

    Tx+、Tx-、Rx+、Rx-、GND

  • RS-485-4w

    Tx+、Tx-、Rx+、Rx-、GND

  • RS-485-2w

    Data+、Data-、GND

  • Windows 驱动程序

    DOS、Windows 95/98/ME/NT/2000、Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64)、Windows 2008 R2/2012/2012 R2 (x64)、Windows Embedded CE 5.0/6.0、Windows XP Embedded

  • Linux 驱动程序

    Linux 内核 2.4.x、Linux 内核 2.6.x、Linux 内核 3.x

  • UNIX 驱动程序

    QNX 6、Solaris 10、UnixWare 7、SCO OpenServer 5、SCO OpenServer 6

  • 输入电流

    CP-114EL 系列:835 mA @ 3.3 VDC
    CP-114EL-I 系列:1,170 mA @ 3.3 VDC

  • 尺寸

    CP-114EL 系列:67.21 x 103 mm(2.65 x 4.06 英寸)
    CP-114EL-I 系列:67.21 x 135 mm(2.65 x 5.31 英寸)

  • LED 指示灯

    每个端口内置 Tx、Rx LED

  • 工作温度

    0 至 55°C(32 至 131°F)

  • 存储温度(含包装)

    -20 至 85°C(-4 至 185°F)

  • 相对湿度

    5 至 95%(非冷凝)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD:接触:4 kV;空气:8 kV
    IEC 61000-4-3 RS:80 MHz 至 1 GHz:3 V/m
    IEC 61000-4-4 EFT:电源:1 kV;信号:0.5 kV
    IEC 61000-4-5 Surge:电源:2 kV
    IEC 61000-4-6 CS:150 kHz 至 80 MHz:3 V/m;信号:3 V/m
    IEC 61000-4-8 PFMF

  • 绿色产品

    RoHS、CRoHS、WEEE

  • 时间

    CP-114EL 系列:2,347,197 小时
    CP-114EL-I 系列:603,671 小时

  • 标准

    Telcordia (Bellcore) 标准 TR/SR

软件、固件和驱动程序

筛选

名称 类型 校驗和 版本 操作系统 发布日期
Linux Kernel 6.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
181.9 KB
驱动程序
SHA-512
v6.0
  • Linux Kernel 6.x
2023年7月31日 2023年7月31日 发布说明
Linux Kernel 4.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
161.1 KB
驱动程序
SHA-512
v4.2
  • Linux Kernel 4.x
2023年1月17日 2023年1月17日 发布说明
Linux Kernel 5.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
162.0 KB
驱动程序
SHA-512
v5.2
  • Linux Kernel 5.x
2023年1月17日 2023年1月17日 发布说明
Driver for Multiport Serial PCI Express and Universal PCI Boards (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
6.4 MB
驱动程序
SHA-512
v3.1
  • Windows 10
  • Windows 10
  • Windows 7
  • Windows 7
  • Windows 8
  • Windows 8
  • Windows 8.1
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2019
  • Windows Server 2022
  • Windows Server 2022
2022年9月6日 2022年9月6日 发布说明
Driver for Multiport Serial PCI Express and Universal PCI Boards (Windows 11 and Windows Server 2022, WHQL certified)
4.1 MB
驱动程序
SHA-512
v4.0
  • Windows 11
  • Windows Server 2022
2022年9月2日 2022年9月2日 发布说明
MSB Linux kernel 5.x.x driver
160.1 KB
驱动程序
SHA-512
v5.1
  • Linux Kernel 5.x
2021年10月25日 2021年10月25日 发布说明
MSB Linux kernel 4.x.x driver
161.9 KB
驱动程序
SHA-512
v4.1
  • Linux Kernel 4.x
2021年10月25日 2021年10月25日 发布说明
Driver for Linux kernel 2.x.x
161.3 KB
驱动程序
SHA-512
v2.0
  • Linux Kernel 2.4.x
  • Linux Kernel 2.6.x
2019年12月31日 2019年12月31日 发布说明
Driver for Linux kernel 3.x.x
161.1 KB
驱动程序
SHA-512
v3.0
  • Linux Kernel 3.x
2019年12月31日 2019年12月31日 发布说明
Driver for CP-114EL Series (WinCE 6)
282.1 KB
驱动程序
SHA-512
v1.0
  • Windows CE 6.0
2019年1月29日 2019年1月29日 发布说明
Driver for CP-114EL Series (Windows XP, 2008 or earlier)
759.9 KB
驱动程序
SHA-512
v1.24
  • Windows 2000
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2017年10月17日 2017年10月17日 发布说明
Driver for CP-114EL Series (DOS)
634.2 KB
驱动程序
SHA-512
v1.12
  • DOS
2014年3月31日 2014年3月31日 发布说明
Driver for CP-114EL Series (SCO 5)
649.5 KB
驱动程序
SHA-512
v1.13
  • SCO OpenServer 5
2014年3月30日 2014年3月30日 发布说明
Driver for CP-114EL Series (SCO 6)
322.0 KB
驱动程序
SHA-512
v1.13
  • SCO OpenServer 6
2014年3月30日 2014年3月30日 发布说明
Driver for CP-114EL Series (Sun Solaris)
118.0 KB
驱动程序
SHA-512
v1.1
  • Solaris 10
2014年3月30日 2014年3月30日 发布说明
Driver for CP-114EL Series (UnixWare)
330.0 KB
驱动程序
SHA-512
v1.13
  • SCO UnixWare 7
2014年3月30日 2014年3月30日 发布说明
PComm Lite - Serial Communication Tool for Windows
1.6 MB
管理工具
SHA-512
v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
2012年5月13日 2012年5月13日 发布说明
Driver for CP-114EL Series (Windows ME or prior)
341.1 KB
驱动程序
SHA-512
v5.11
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows ME
2010年7月12日 2010年7月12日 发布说明
Driver for CP-114EL Series (UnixWare 2.1)
270.0 KB
驱动程序
SHA-512
v1.7
  • SCO UnixWare 2.x
2010年7月12日 2010年7月12日 发布说明
Viewcom
434.6 KB
管理工具
SHA-512
v1.0
  • Windows 2000
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2010年7月11日 2010年7月11日 发布说明
Driver for CP-114EL Series (WinCE 5)
372.0 KB
驱动程序
SHA-512
v1.1
  • Windows CE 5.0
2010年7月1日 2010年7月1日 发布说明
Driver for CP-114EL Series (QNX6)
120.8 KB
驱动程序
SHA-512
v1.1
  • QNX 6.x
2010年2月10日 2010年2月10日 发布说明
Driver for CP-114EL Series (WinXP Embedded)
289.1 KB
驱动程序
SHA-512
v1.16
  • Windows XP Embedded
2010年2月8日 2010年2月8日 发布说明

支持文件

名称 类型 语言 版本 发布日期
QIG for PCI Express Multiport Serial Board Series
495.4 KB
QIG 英文 v2.4 2023年4月17日 2023年4月17日
Manual for Multiport Serial PCI Express Boards
16.1 MB
手册 英文 v12.1 2022年9月16日 2022年9月16日
CP-114EL 系列产品资料表
1.9 MB
产品资料表 中文 v1.0 2018年11月12日 2018年11月12日
2D CAD for CP-114EL TOP
306.0 KB
2D CAD 英文 2012年5月14日 2012年5月14日
Tech Note: The Secrets of Flow Control in Serial Communication
35.0 KB
技术说明 英文 v1.0 2010年2月22日 2010年2月22日
Tech Note: The Secrets of RS-485 Half-duplex Communication
41.1 KB
技术说明 英文 v1.0 2010年2月22日 2010年2月22日
Tech Note: The Secrets of UART FIFO
42.8 KB
技术说明 英文 v1.0 2010年2月22日 2010年2月22日
