PC/104 串口卡

我们提供多样的工业级 PC/104 和 PC/104+ 串口卡选择，帮助嵌入式应用连接多个数据吞吐量巨大的串口设备。

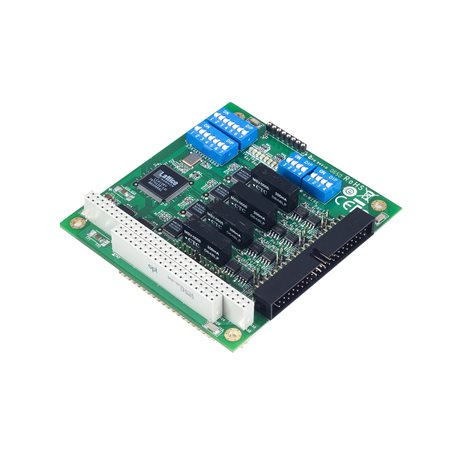

CA-134I-T
CA-134I 系列

PC/104 bus, 4-port RS-422/485 module with 2 kV optical isolation, -40 to 85°C operating temperature

Serial Interface

  • Comm. Controller

    • 16C550C or compatible x 4

  • Bus

    • PC/104 bus

  • Connector

    • 40-pin box header

  • DIP Switches

    • I/O base address, Interrupt vector, Serial interface

  • IRQ

    • 3, 4, 5, 6, 7, 9, 10, 11, 12, 15 (shared for all ports)

  • FIFO

    • 64 bytes

  • Max. No. of Boards per PC

    • 8

  • No. of Ports

    • 4

  • Serial Standards

    • RS-422, RS-485

  • Baudrate

    • 50 bps to 921.6 kbps (supports non-standard baudrates)

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Flow Control

    • None, XON/XOFF

  • Isolation

    • 2 kV
Serial Signals

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND
Serial Software Features

  • Windows Drivers

    • DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Drivers

    • Linux kernel 2.4.x, Linux kernel 2.6.x
Power Parameters

  • Input Current

    • 220 mA @ 5 VDC

  • Input Voltage

    • 5 VDC
Physical Characteristics

  • Dimensions

    • 90 x 96 mm (3.54 x 3.78 in)
LED Interface

  • LED Indicators

    • Built-in Tx, Rx LEDs for each port
Environmental Limits

  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/24

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 0.5 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF

  • Environmental Testing

    • IEC 60068-2-1
      IEC 60068-2-2
      IEC 60068-2-3
      IEC 60068-2-14

  • Safety

    • EN 60950-1, UL 60950-1

  • Vibration

    • IEC 60068-2-6
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 339,822 hrs

  • Standards

    • Telcordia (Bellcore), GB
Warranty
