CP-132UL 系列

2 端口 RS-422/485 通用 PCI 串口卡,可选带 2 kV 光电隔离保护

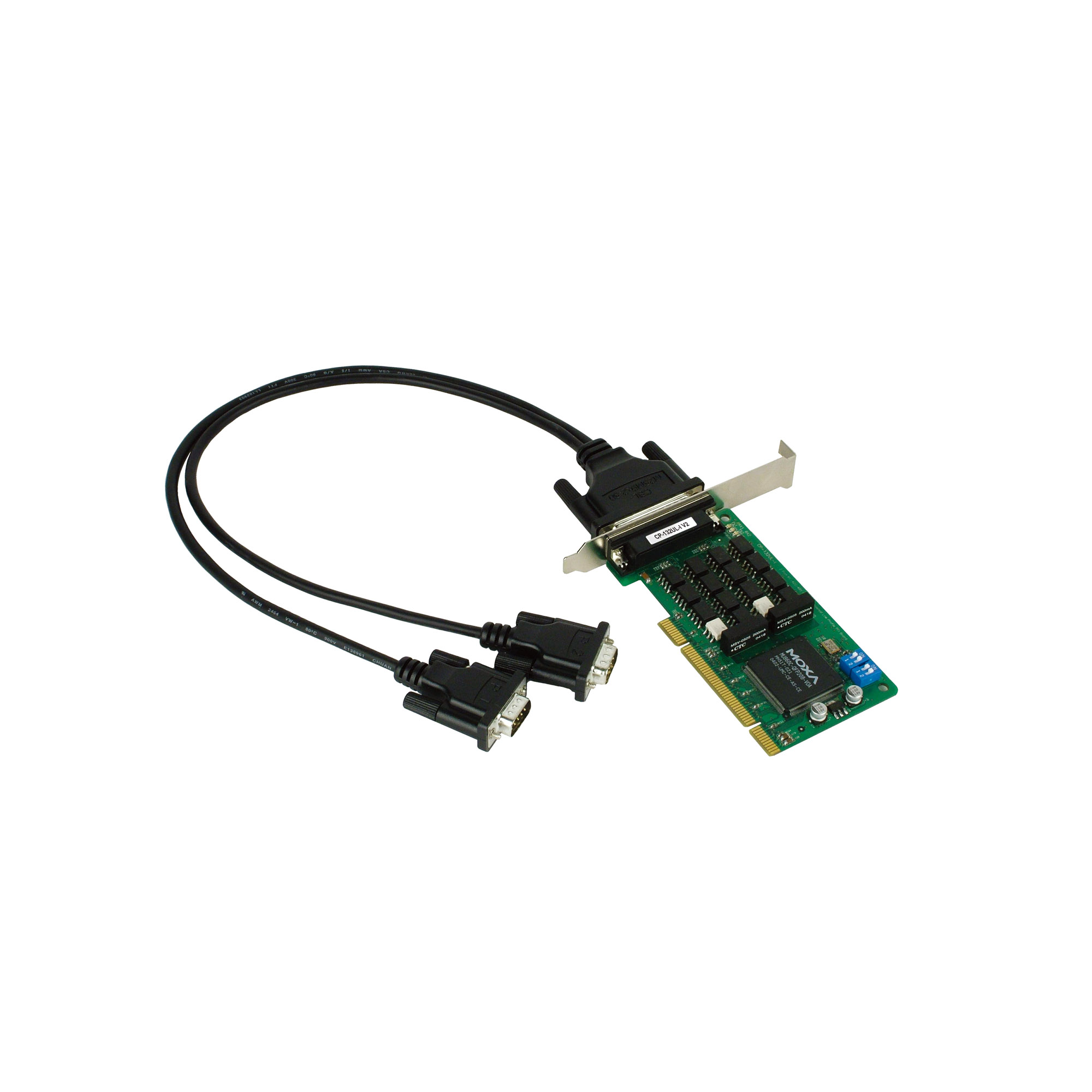

moxa-cp-132ul-series-image-1-(1).jpg | Moxa

特点和优势

  • 超过 800 kbps 的高效数据吞吐量
  • 串口传输速率最高可达 921.6 kbps
  • ADDC® 提供 RS-485 通信数据流向自动控制
  • RS-422/485 数据传输距离可达 1.2 km
  • 128-byte FIFO 和芯片集成的 S/W 流量控制
  • 兼容 3.3/5 V PCI 和 PCI-X
  • 支持多种操作系统驱动程序,包括 Windows、Linux 和 UNIX
  • MD1 低挡板设计,适合小型 PC
  • -40 至 85°C 宽温型号可选

认证

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

联系销售人员

介绍

CP-132UL 和 CP-132UL-I 2 端口通用 PCI 多串口卡,专为工业自动化系统中的长距离、基于 PC 的多点数据采集应用而设计。



芯片集成的数据流向自动控制,提供精确 RS-485 通信

RS-485 通信需要精准的时间控制来启用和禁用线路驱动控制。Moxa Turbo Serial Engine™ 芯片为 CP-132UL/UL-I 串口卡提供芯片集成的 ADDC® 功能,使 RS-485 通信连接与 RS-232 一样简单。



RS-485 多点通信,1.2 km 距离内可连接多达 31 台设备

CP-132UL/UL-I 通用 PCI 卡具备 2 个 RS-422/485 串口,每个串口支持高达 921.6 kbps 传输速率。在 RS-485 模式下,串口可通过菊花链方式,在 1.2 km 通信距离内连接多达 31 台 RS-485 设备。用户可选择 CP-132UL-I 用于长距离 RS-485 通信,产品提供 2 kV 电气隔离保护,可防止设备损坏。



卓越串口性能

凭借 30 多年的串口卡设计经验,Moxa 现在专注于新型、高效串口数据传输芯片上。这款 Turbo Serial Engine™ 芯片为串口卡提供了 128-byte FIFO、芯片集成的 H/W 和 S/W 流量控制,以及数据突发访问模式。通过 Turbo Serial Engine™,Moxa 能够设计出具有卓越传输性能的高级智能串口卡。



提供 Windows、Linux 和 UNIX 驱动程序

Moxa 持续支持各种操作系统,CP-132UL/UL-I 卡也不例外。所有 Moxa 串口卡均提供可靠的 Windows 和 Linux/UNIX 驱动程序,并支持 WEPOS 等其他嵌入式应用操作系统。



  • 通信控制器

    MU860(兼容 16C550C)

  • 总线

    32 位通用 PCI

  • 接头

    DB25 母头

  • FIFO

    128 bytes

  • 最大板载数

    8

  • 端口数量

    2

  • 串口标准

    RS-422、RS-485

  • 波特率

    50 bps 至 921.6 kbps

  • 数据位

    5、6、7、8

  • 停止位

    1、1.5、2

  • 校验位

    无、偶、奇、Space、Mark

  • 流量控制

    无,XON/XOFF

  • 隔离保护

    CP-132UL-I 系列:2 kV

  • RS-422

    Tx+、Tx-、Rx+、Rx-、RTS+、RTS-、CTS+、CTS-、GND

  • RS-485-4w

    Tx+、Tx-、Rx+、Rx-、GND

  • RS-485-2w

    Data+、Data-、GND

  • Windows 驱动程序

    DOS、Windows 95/98/ME/NT/2000、Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64)、Windows 2008 R2/2012/2012 R2 (x64)、Windows Embedded CE 5.0/6.0、Windows XP Embedded

  • Linux 驱动程序

    Linux 内核 2.4.x、Linux 内核 2.6.x、Linux 内核 3.x

  • UNIX 驱动程序

    QNX 6、SCO OpenServer、UnixWare 7Solaris 10、FreeBSD

  • 输入电流

    CP-132UL 系列:120 mA @ 5 VDC
    CP-132UL-I 系列:490 mA @ 5 VDC

  • 尺寸

    64.4 x 120 mm(2.53 x 4.72 英寸)

  • LED 指示灯

    每个端口内置 Tx、Rx LED

  • 工作温度

    标准型号:0 至 55°C(32 至 131°F)
    宽温型号:-40 至 85°C(-40 至 185°F)

  • 存储温度(含包装)

    -40 至 85°C(-40 至 185°F)

  • 相对湿度

    5 至 95%(非冷凝)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD:接触:4 kV;空气:8 kV
    IEC 61000-4-3 RS:80 MHz 至 1 GHz:3 V/m

  • 绿色产品

    RoHS、CRoHS、WEEE

  • 时间

    1,647,832 小时

  • 标准

    Telcordia SR332
