MOXA

二层网管型交换机

Moxa 二层网管型交换机具备工业级可靠度、网络冗余功能，安全特性符合 IEC 62443 标准。我们强化产品设计，以满足特定行业需求，符合多种行业认证，例如轨道应用的 EN 50155 标准相关的部分要求、电力自动化系统的 IEC 61850-3 标准、智能运输系统的 NEMA TS2等。

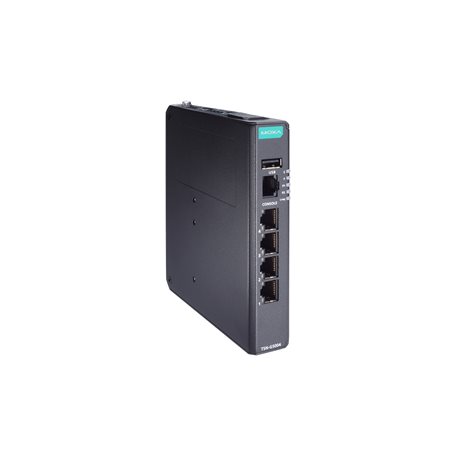

TSN-G5004
TSN-G5004 系列

4G-port full Gigabit managed Ethernet switch, 4 10/100/1000BaseT(X) ports, -10 to 60°C operating temperature

Ethernet Interface

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3z for 1000BaseX
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1p for Class of Service
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 4
      Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection
Ethernet Software Features

  • Management

    • IPv4/IPv6, LLDP, SMTP, SNMP Inform, SNMPv1/v2c/v3, SNMP Trap, DHCP Server/Client, ARP, TFTP, SFTP, HTTP, HTTPS, SSH, Telnet, Private MIB, Syslog

  • MIB

    • RFC1213, Ethernet-like MIB, IF MIB, LLDP MIB, Bridge MIB, Q-BRIDGE MIB, IEEE8021-PAE-MIB, IEEE8021-SPANNING-TREE-MIB, SNMPv2-MIB

  • Redundancy Protocols

    • RSTP, STP

  • Security

    • Broadcast storm protection, Trust access control, Login and Password Policy, HTTPS/SSL, SSH, SNMPv3, RADIUS, TACACS+

  • Time Management

    • SNTP, NTP Server/Client

  • Filter

    • 802.1Q VLAN, Static Multicast
Switch Properties

  • MAC Table Size

    • 9 K

  • Max. No. of VLANs

    • 256

  • VLAN ID Range

    • VID 1 to 4094

  • Packet Buffer Size

    • 2 Mbits
Serial Interface

  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
USB Interface

  • USB Connector

    • USB Type A (Reserved)
Input/Output Interface

  • Alarm Contact Channels

    • 1, Relay output with current carrying capacity of 1 A @ 24 VDC

  • Buttons

    • Reset button

  • Digital Input Channels

    • 1

  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA
LED Interface

  • LED Indicators

    • STATE, FAULT, PWR1, PWR2, SYNC
Power Parameters

  • Connection

    • 2 removable 4-contact terminal block(s)

  • Input Voltage

    • 12 to 48 VDC, Redundant dual inputs

  • Operating Voltage

    • 9.6 to 60 VDC

  • Input Current

    • 1.25 A @ 12 VDC

  • Overload Current Protection

    • Supported

  • Reverse Polarity Protection

    • Supported
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP40

  • Dimensions

    • 25 x 135 x 115 mm (0.98 x 5.32 x 4.53 in)

  • Weight

    • 582 g (1.28 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -10 to 60°C (14 to 140°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • Safety

    • UL 61010-2-201, EN 62368-1

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Shock

    • IEC 60068-2-27

  • Freefall

    • IEC 60068-2-32

  • Vibration

    • IEC 60068-2-6
MTBF

  • Time

    • 848,997 hrs

  • Standards

    • Telcordia (Bellcore), GB
Warranty
