MOXA

二层网管型交换机

Moxa 二层网管型交换机具备工业级可靠度、网络冗余功能，安全特性符合 IEC 62443 标准。我们强化产品设计，以满足特定行业需求，符合多种行业认证，例如轨道应用的 EN 50155 标准相关的部分要求、电力自动化系统的 IEC 61850-3 标准、智能运输系统的 NEMA TS2等。

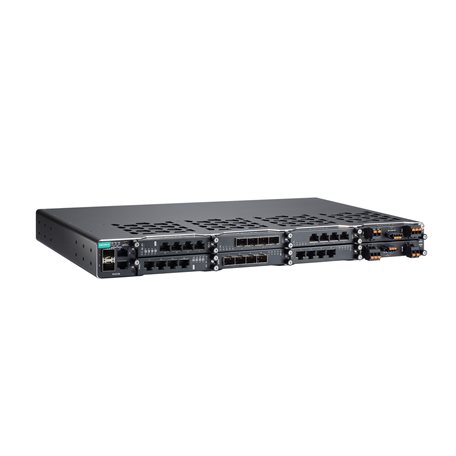

PT-G7728
PT-G7728 系列

Layer 2 modular managed Ethernet switch with 2 100/1000BaseSFP and 2 10/100/1000BaseT(X), 6 slots for Ethernet modules and 2 slots for power modules, for a maximum of 28G ports total

Ethernet Interface

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 2

  • 100/1000BaseSFP Ports

    • 2

  • Module

    • 6

  • Slot Combination

    • See the LM-7000H datasheet for Gigabit Ethernet module and PoE+ module information

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3z for 1000BaseX
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1X for authentication
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.3x for flow control
Ethernet Software Features

  • Management

    • IPv4/IPv6, SNMP Inform, SNMPv1/v2c/v3, DHCP Server/Client, DHCP Option 66/67/82, BOOTP, TFTP, LLDP, RARP, HTTP, HTTPS, Telnet, Flow control, Back Pressure Flow Control, Port Mirror, Fiber check, Dying Gasp, SMTP, Syslog

  • MIB

    • MIB-II, Ethernet-like MIB, Bridge MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RSTP MIB, RMON MIB Groups 1, 2, 3, 9

  • Filter

    • IGMP v1/v2/v3, GMRP, GVRP, 802.1Q, QinQ VLAN

  • Redundancy Protocols

    • Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, V-ON

  • Security

    • RADIUS, TACACS+, SSH, Port Lock, Broadcast storm protection, MAB authentication, Sticky MAC, Access control list

  • Time Management

    • NTP Server/Client, SNTP, IEEE 1588v2 PTP (hardware-based)

  • Power Substation

    • IEC 61850 QoS, GOOSE Check

  • Industrial Protocols

    • EtherNet/IP, Modbus TCP
Switch Properties

  • Priority Queues

    • 8

  • Max. No. of VLANs

    • 512

  • VLAN ID Range

    • 1 to 4094

  • IGMP Groups

    • 4096

  • MAC Table Size

    • 16 K

  • Packet Buffer Size

    • 12 Mbits

  • Jumbo Frame Size

    • 9.6 KB
Serial Interface

  • Console Port

    • Micro USB Type B
USB Interface

  • Storage Port

    • USB Type A
Power Parameters

  • Input Voltage

    • with PWR-LV-P48 installed:
      24/48 VDC for the switch system
      48 VDC for PoE system (53 to 57 VDC is recommended for PoE+ devices)

      with PWR-HV-P48 installed:
      110/220 VDC/VAC for the switch system
      48 VDC for PoE system (53 to 57 VDC is recommended for PoE+ devices)

  • Operating Voltage

    • with PWR-LV-P48 installed:
      18 to 72 VDC for the switch system
      46 to 57 VDC for PoE systems

      with PWR-HV-P48 installed:
      88 to 300 VDC, 90 to 264 VAC for the switch system
      46 to 57 VDC for PoE systems

  • Input Current

    • with PWR-LV-P48 installed:
      PWR input current (switch system)
      Max. 0.49 A @ 24 VDC
      Max. 0.25A @ 48 VDC
      EPS input current (PoE system)
      Max. 0.53 A @ 48 VDC
      (excluding power consumption of PoE devices)

      with PWR-HV-P48 installed:
      PWR input current (switch system)
      Max. 0.12 A @ 110 VDC
      Max. 0.07 A @ 220 VDC
      Max. 0.29 A @ 110 VAC
      Max. 0.18 A @ 220 VAC
      EPS input current (PoE system)
      Max. 0.53 A @ 48 VDC
      (excluding power consumption of PoE devices)
Physical Characteristics

  • IP Rating

    • IP30

  • Dimensions

    • 443 x 44 x 280 mm (17.44 x 1.73 x 11.02 in)

  • Weight

    • 3080 g (6.8 lb)

  • Installation

    • 19-inch rack mounting
Environmental Limits

  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/24

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Power Substation

    • IEC 61850-3 Edition 2.0 Class 2, IEEE 1613

  • Railway

    • EN 50121-4

  • Safety

    • EN 61010-2-201, UL 61010-2-201
MTBF

  • Time

    • 449,542 hrs

  • Standards

    • Telcordia (Bellcore), GB
Warranty
