二层网管型交换机

Moxa 二层网管型交换机具备工业级可靠度、网络冗余功能,安全特性符合 IEC 62443 标准。我们强化产品设计,以满足特定行业需求,符合多种行业认证,例如轨道应用的 EN 50155 标准相关的部分要求、电力自动化系统的 IEC 61850-3 标准、智能运输系统的 NEMA TS2等。

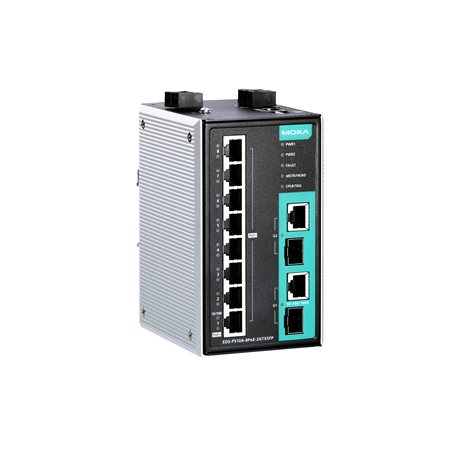

EDS-P510A-8PoE-2GTXSFP
EDS-P510A 系列

Managed Gigabit Ethernet switch with 8 PoE/PoE+ 10/100BaseT(X) ports, and 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slots for adding SFP-1G/1FE Series Gigabit/Fast Ethernet modules, 0 to 60°C operating temperature

Ethernet Interface
  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)

    • 2
      Full/Half duplex mode
      Auto MDI/MDI-X connection
      Auto negotiation speed
  • PoE Ports (10/100BaseT(X), RJ45 connector)

    • 8
      Full/Half duplex mode
      Auto MDI/MDI-X connection
      Auto negotiation speed
  • Standards

    • IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1s for Multiple Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for authentication
      IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.3af/at for PoE/PoE+ output
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
      IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Ethernet Software Features
  • Filter

    • GMRP, GVRP, IGMP v1/v2, Port-based VLAN
  • Industrial Protocols

    • EtherNet/IP, Modbus TCP
  • Management

    • Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
  • MIB

    • Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
  • Redundancy Protocols

    • LACP, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
  • Security

    • HTTPS/SSL, Port Lock, RADIUS, TACACS+, SSH
  • Time Management

    • NTP Server/Client, SNTP
Switch Properties
  • IGMP Groups

    • 1024
  • MAC Table Size

    • 8 K
  • Max. No. of VLANs

    • 64
  • Packet Buffer Size

    • 1 Mbits
  • Priority Queues

    • 4
  • VLAN ID Range

    • VID 1 to 4094
Serial Interface
  • Console Port

    • RS-232 (TxD, RxD, GND), 10-pin RJ45 (19200, n, 8, 1)
DIP Switch Configuration
  • Ethernet Interface

    • Turbo Ring, Master, Coupler, Reserve
Input/Output Interface
  • Alarm Contact Channels

    • 1, Relay output with current carrying capacity of 0.5 A @ 48 VDC
  • Digital Input Channels

    • 1
  • Digital Inputs

    • Max. input current: 8 mA
      +13 to +30 V for state 1
      -30 to +3 V for state 0
Power Parameters
  • Input Voltage

    • 48 VDC, Redundant dual inputs
  • Operating Voltage

    • 44 to 57 VDC
  • Input Current

    • 5.36 A @ 48 VDC
  • Power Consumption (Max.)

    • Max. 17.28 W full loading without PDs’ consumption
  • Power Budget

    • Max. 240 W for total PD consumption
      Max. 36 W for each PoE port
  • Connection

    • 2 removable 2-contact terminal block(s)
  • Overload Current Protection

    • Supported
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 79.2 x 135 x 105 mm (3.12 x 5.31 x 4.13 in)
  • Weight

    • 1030 g (2.28 lb)
  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Safety

    • UL 508
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Hazardous Locations

    • Class I Division 2
  • Railway

    • EN 50121-4
  • Traffic Control

    • NEMA TS2
  • Freefall

    • IEC 60068-2-31
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 708,972 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
