二层网管型交换机

Moxa 二层网管型交换机具备工业级可靠度、网络冗余功能,安全特性符合 IEC 62443 标准。我们强化产品设计,以满足特定行业需求,符合多种行业认证,例如轨道应用的 EN 50155 标准相关的部分要求、电力自动化系统的 IEC 61850-3 标准、智能运输系统的 NEMA TS2等。

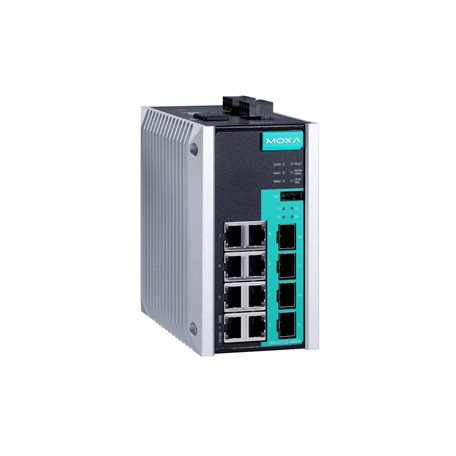

EDS-G512E-4GSFP
EDS-G512E 系列

12-port full Gigabit managed Ethernet switch, 8 10/100/1000BaseT(X) ports, 4 Gigabit SFP slots, -10 to 60°C operating temperature

Input/Output Interface
  • Alarm Contact Channels

    • 1, Relay output with current carrying capacity of 1 A @ 24 VDC
  • Buttons

    • Reset button
  • Digital Input Channels

    • 1
  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA
Ethernet Interface
  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 8
      Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection
  • 100/1000BaseSFP Slots

    • 4
Ethernet Software Features
  • Filter

    • 802.1Q VLAN, Port-based VLAN, GVRP, IGMP v1/v2/v3, GMRP
  • Industrial Protocols

    • EtherNet/IP, Modbus TCP, PROFINET IO Device (Slave)
  • Management

    • LLDP, Back Pressure Flow Control, BOOTP, Port Mirror, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
  • MIB

    • Ethernet-like MIB, MIB-II, Bridge MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
  • Redundancy Protocols

    • Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
  • Security

    • Broadcast storm protection, HTTPS/SSL, TACACS+, SNMPv3, MAB authentication, Sticky MAC, NTP authentication, MAC ACL, Port Lock, RADIUS, SSH, SMTP with TLS
  • Time Management

    • NTP Server/Client, SNTP
Switch Properties
  • IGMP Groups

    • 2048
  • Jumbo Frame Size

    • 9.6 KB
  • MAC Table Size

    • 8 K
  • Max. No. of VLANs

    • 256
  • Packet Buffer Size

    • 4 Mbits
  • Priority Queues

    • 4
  • VLAN ID Range

    • VID 1 to 4094
USB Interface
  • Storage Port

    • USB Type A
LED Interface
  • LED Indicators

    • PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 1000M (TP port), 100/1000M (SFP port), MSTR/HEAD, CPLR/TAIL, smart PoE LED (EDS-G512E-8PoE-4GSFP Series only)
Serial Interface
  • Console Port

    • USB-serial console (Type B connector)
DIP Switch Configuration
  • DIP Switches

    • Turbo Ring, Master, Coupler, Reserve
Power Parameters
  • Connection

    • 2 removable 4-contact terminal block(s)
  • Input Current

    • EDS-G512E-4GSFP Series: 0.34 A @ 24 VDC
      EDS-G512E-8PoE-4GSFP Series: 5.30 A @ 48 VDC
  • Input Voltage

    • Redundant dual inputs:
      EDS-G512E-4GSFP Series: 12/24/48/-48 VDC
      EDS-G512E-8PoE-4GSFP Series: 48 VDC, Redundant dual inputs
  • Overload Current Protection

    • Supported
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in)
  • Weight

    • 1,440 g (3.18 lb)
  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • Standard Models: -10 to 60°C (14 to 140°F)
      Wide Temp. Models: -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Safety

    • EDS-G512E-4GSFP/EDS-G512E-8PoE-4GSFP Series: UL 508
      EDS-G512E-8PoE-4GSFP Series: EN 60950-1 (LVD)
  • EMC

    • EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Hazardous Locations

    • EDS-G512E-4GSFP Series: ATEX, Class I Division 2
  • Maritime

    • DNV-GL, LR, ABS, NK
  • Power Substation

    • IEC 61850-3, IEEE 1613
  • Railway

    • EN 50121-4
  • Traffic Control

    • NEMA TS2
  • Shock

    • IEC 60068-2-27
  • Freefall

    • IEC 60068-2-32
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • EDS-G512E-4GSFP Series: 816,823 hrs
      EDS-G512E-8PoE-4GSFP Series: 361,368 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
