二层网管型交换机

Moxa 二层网管型交换机具备工业级可靠度、网络冗余功能，安全特性符合 IEC 62443 标准。我们强化产品设计，以满足特定行业需求，符合多种行业认证，例如轨道应用的 EN 50155 标准相关的部分要求、电力自动化系统的 IEC 61850-3 标准、智能运输系统的 NEMA TS2等。

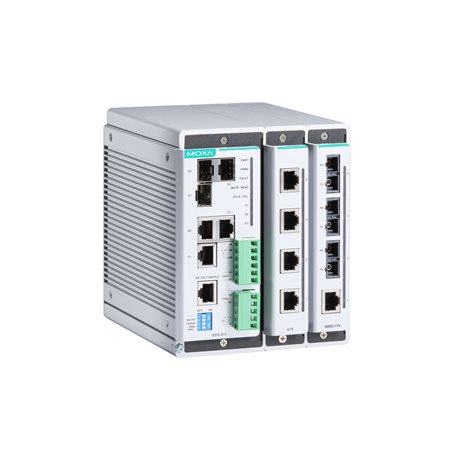

EDS-611-T
EDS-611 系列

Compact managed Ethernet switch system with 3 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, and 2 slots for 4-port fast Ethernet interface modules, for a total of up to 11 ports, -40 to 75°C operating temperature

Input/Output Interface

  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA

  • Alarm Contact Channels

    • Relay output with current carrying capacity of 1 A @ 24 VDC
Ethernet Interface

  • Module

    • 2 slots for any combination of 4-port interface modules, 10/100BaseT(X) or 100BaseFX

  • Standards

    • IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1s for Multiple Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for authentication
      IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
Ethernet Software Features

  • Filter

    • GMRP, GVRP, IGMP v1/v2, Port-based VLAN

  • Industrial Protocols

    • EtherNet/IP, Modbus TCP

  • Management

    • Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

  • MIB

    • Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

  • Redundancy Protocols

    • Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2

  • Security

    • Broadcast storm protection, HTTPS/SSL, Port Lock, RADIUS, SSH, TACACS+

  • Time Management

    • NTP Server/Client, SNTP
Switch Properties

  • IGMP Groups

    • 256

  • MAC Table Size

    • 8 K

  • Max. No. of VLANs

    • 64

  • Packet Buffer Size

    • 1 Mbits

  • Priority Queues

    • 4

  • VLAN ID Range

    • VID 1 to 4094
LED Interface

  • LED Indicators

    • PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, G1/G2/G3
Serial Interface

  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
DIP Switch Configuration

  • Ethernet Interface

    • Turbo Ring, Master, Coupler, Reserve
Power Parameters

  • Connection

    • 1 removable 6-contact terminal block(s)

  • Input Voltage

    • 12/24/48 VDC, Redundant dual inputs

  • Overload Current Protection

    • Supported

  • Reverse Polarity Protection

    • Supported
Physical Characteristics

  • IP Rating

    • IP30

  • Dimensions

    • 124.9 x 151 x 157.2 mm (4.92 x 5.95 x 6.19 in)

  • Weight

    • 2260 g (4.99 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • Freefall

    • IEC 60068-2-32

  • EMC

    • EN 55032/24, EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Hazardous Locations

    • ATEX, Class I Division 2

  • Maritime

    • ABS, DNV-GL, LR, NK

  • Railway

    • EN 50121-4

  • Safety

    • EN 60950-1, UL 508, UL 60950-1

  • Shock

    • IEC 60068-2-27

  • Traffic Control

    • NEMA TS2

  • Vibration

    • IEC 60068-2-6
MTBF

  • Time

    • 483,344 hrs

  • Standards

    • Telcordia (Bellcore), GB
Warranty
