二层网管型交换机

Moxa 二层网管型交换机具备工业级可靠度、网络冗余功能,安全特性符合 IEC 62443 标准。我们强化产品设计,以满足特定行业需求,符合多种行业认证,例如轨道应用的 EN 50155 标准相关的部分要求、电力自动化系统的 IEC 61850-3 标准、智能运输系统的 NEMA TS2等。

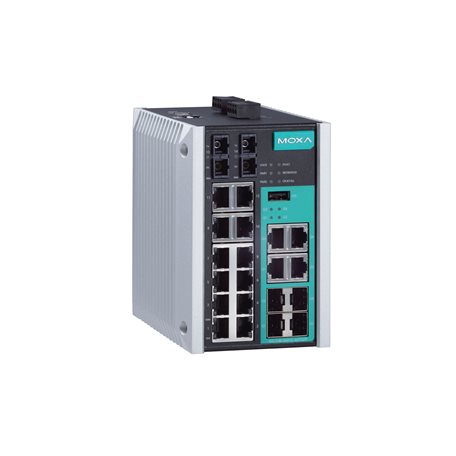

EDS-518E-MM-SC-4GTXSFP-T
EDS-518E 系列

Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 2 100BaseFX (multi-mode, SC Connector), -40 to 75°C operating temperature

Input/Output Interface
  • Alarm Contact Channels

    • 1, Relay output with current carrying capacity of 1 A @ 24 VDC
  • Buttons

    • Reset button
  • Digital Input Channels

    • 1
  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA
Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 12
      Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection
  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)

    • 4
  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection
  • 100BaseFX Ports (multi-mode SC connector)

    • 2
  • Optical Fiber

    •
  • Optical Fiber

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
      IEEE 802.3x for flow control
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1s for Multiple Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1X for authentication
      IEEE 802.3ad for Port Trunk with LACP
Ethernet Software Features
  • Filter

    • 802.1Q VLAN, Port-based VLAN, GVRP, IGMP v1/v2/v3, GMRP
  • Industrial Protocols

    • EtherNet/IP, Modbus TCP, PROFINET IO Device (Slave)
  • Management

    • LLDP, Back Pressure Flow Control, BOOTP, Port Mirror, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
  • MIB

    • Ethernet-like MIB, MIB-II, Bridge MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
  • Redundancy Protocols

    • Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
  • Security

    • Broadcast storm protection, HTTPS/SSL, TACACS+, SNMPv3, MAB authentication, Sticky MAC, NTP authentication, MAC ACL, Port Lock, RADIUS, SSH, SMTP with TLS
  • Time Management

    • NTP Server/Client, SNTP
Switch Properties
  • IGMP Groups

    • 2048
  • MAC Table Size

    • 16 K
  • Max. No. of VLANs

    • 64
  • Packet Buffer Size

    • 1 Mbits
  • Priority Queues

    • 4
  • VLAN ID Range

    • VID 1 to 4094
USB Interface
  • Storage Port

    • USB Type A
LED Interface
  • LED Indicators

    • PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 100M (fiber port), Gigabit combo port, MSTR/HEAD, CPLR/TAIL
Serial Interface
  • Console Port

    • USB-serial console (Type B connector)
DIP Switch Configuration
  • DIP Switches

    • Turbo Ring, Master, Coupler, Reserve
Power Parameters
  • Connection

    • 2 removable 4-contact terminal block(s)
  • Input Current

    • 0.41 A @ 24 VDC
  • Input Voltage

    • 12/24/48/-48 VDC, Redundant dual inputs
  • Operating Voltage

    • 9.6 to 60 VDC
  • Overload Current Protection

    • Supported
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 94 x 135 x 137 mm (3.7 x 5.31 x 5.39 in)
  • Weight

    • 1518 g (3.35 lb)
  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Safety

    • UL 508, EN 60950-1 (LVD)
  • EMC

    • EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Hazardous Locations

    • ATEX, Class I Division 2
  • Maritime

    • DNV-GL, LR, ABS, NK
  • Power Substation

    • IEC 61850-3, IEEE 1613
  • Railway

    • EN 50121-4
  • Traffic Control

    • NEMA TS2
  • Shock

    • IEC 60068-2-27
  • Freefall

    • IEC 60068-2-32
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 723,953 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
