EOM-104-FO 20PCS
EOM-104 系列

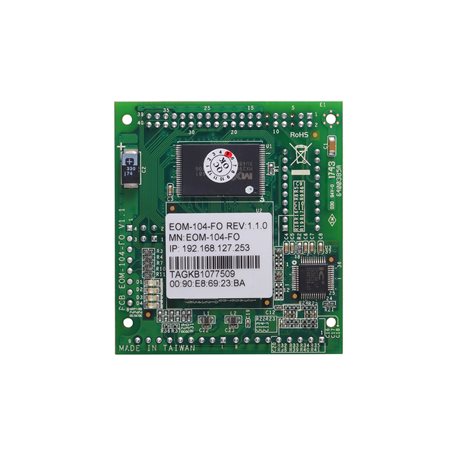

Embedded managed Ethernet switch module with 2 10/100BaseT(X) and 2 100BaseFX ports, -40 to 75°C operating temperature, 20 pcs package

Ethernet Interface
  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
      IEEE 802.1p for Class of Service
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
  • 10/100BaseT(X) Port

    • 2
  • 100BaseFX Port

    • 2
  • Connector

    • 1 connector with 2 x 20 pins, 2 connectors with 1 x 9 pins, and 1 connector with 2 x 2 pins
  • GPIO

    • 4 x Programmable I/O pins
Ethernet Software Features
  • Protocols

    • BOOTP, DHCP Client, HTTP, RARP, RMON, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
  • MIB

    • Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Switch Properties
  • MAC Table Size

    • 1 K
  • Packet Buffer Size

    • 512 kbits
Serial Interface
  • Console Port

    • RS-232 (TxD, RxD, DTR, DSR)
Power Parameters
  • Input Current

    • 1.1 A @ 3.3 VDC
Physical Characteristics
  • Dimensions

    • 54 x 60 x 8.25 mm (2.13 x 2.36 x 0.32 in)
  • Weight

    • 21 g (0.046 lb)
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
Warranty
