MOXA

以太网转光纤接口转换器

Moxa 以太网转光纤接口转换器具备创新远程管理功能、工业级可靠性和灵活的模块化设计,适用任何工业环境。

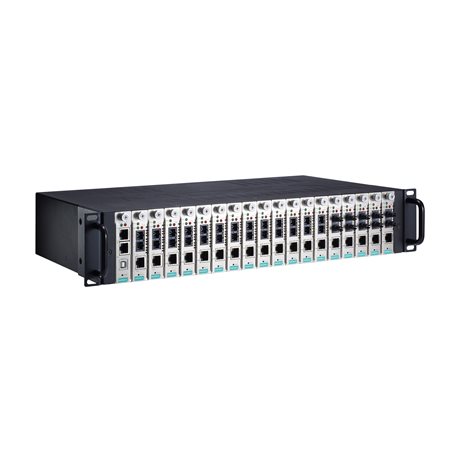

TRC-2190-DC-48V
TRC-2190 系列

2U rackmount chassis, with a single 36 to 53 VDC input, 18 slots on the front panel, and CSM-MN01 managed module

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2
Ethernet Software Features
  • Industrial Protocols

    • SNMPv1/v2c, SNMPv1/v2c Trap
  • Management

    • DHCP Client, IPv4/IPv6, SNMPv1/v2c, Syslog, TCP/IP, Telnet, TFTP, UDP, Web Console
  • MIB

    • MIB-II
  • Security

    • HTTPS/SSL, Local Account Accessibility, TACACS+, RADIUS, SSH
  • Time Management

    • NTP Client
Power Parameters
  • Input Voltage

    • 36 to 53 VDC
  • No. of Power Inputs

    • 2
  • Overload Current Protection

    • Supported
  • Power Consumption

    • 2.1 mA @ 48 VDC
Physical Characteristics
  • IP Rating

    • IP30
  • Dimensions

    • 440 x 260 x 77 mm (18.6 x 11 x 3.3 in)
  • Weight

    • 5.2 g (11.4 lb)
  • Installation

    • 19-inch rack mounting
Environmental Limits
  • Operating Temperature

    • -20 to 55°C (-4 to 131°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
  • Environmental Testing

    • IEC 60068-2-1
      IEC 60068-2-14
      IEC 60068-2-2
      IEC 60068-2-3
  • Safety

    • EN 60950-1, IEC 60950-1
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 1,055,112 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
