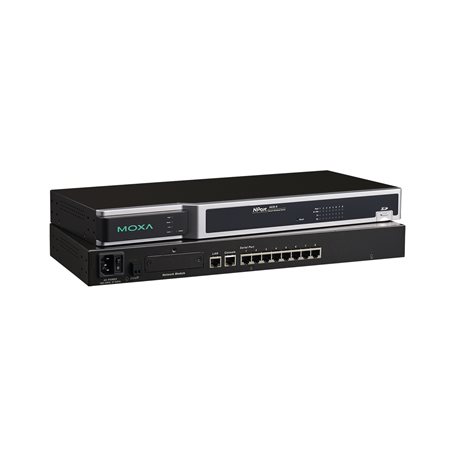

NPort 6650-8-T
NPort 6400/6600 系列

8-port RS-232/422/485 to Ethernet secure terminal server, -40 to 75°C operating temperature, 100-240 VAC input

Memory
  • SD Slot

    • Up to 32 GB (SD 2.0 compatible)
Input/Output Interface
  • Alarm Contact Channels

    • Resistive load: 1 A @ 24 VDC
Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1
      Auto MDI/MDI-X connection
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
  • Optical Fiber

    •
  • Optical Fiber

Ethernet Software Features
  • Configuration Options

    • Web Console (HTTP/HTTPS), Serial Console, Telnet/SSH Console, Windows Utility
  • Management

    • ARP, BOOTP, DHCP Client, DNS, HTTP, IPv4/IPv6, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, PPPOE, ICMP
  • Windows Real COM Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Fixed TTY Drivers

    • SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
  • Linux Real TTY Drivers

    • Kernel version: 2.4.x, 2.6.x, 3.x, 4.x
  • Android API

    • Android 3.1.x and later
  • MIB

    • MIB-II
  • Unicast Routing

    • RIPV1/V2, Static Route
Serial Interface
  • Connector

    • 8-pin RJ45
  • No. of Ports

    • 8
  • Serial Standards

    • RS-232
      RS-422
      RS-485
  • Secure Operation Modes

    • Reverse SSH, Secure Pair Connection, Secure Real COM, Secure TCP Client, Secure TCP Server, SSH
  • Standard Operation Modes

    • Disabled, Ethernet Modem, Pair Connection, PPP, Printer, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, Terminal, UDP
  • Baudrate

    • 50 bps to 921.6 kbps (supports non-standard baudrates)
  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • RTS/CTS, DTR/DSR, XON/XOFF
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
  • RS-485 Data Direction Control

    • ADDC® (automatic data direction control)
  • Terminator for RS-485

    • 120 ohms
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
Power Parameters
  • Input Current

    • 140 mA @ 100 VAC
  • Input Voltage

    • 100 to 240 VAC, 47 to 63 Hz
Reliability
  • Automatic Reboot Trigger

    • Built-in WDT
  • Alert Tools

    • Built-in buzzer and RTC (real-time clock)
Physical Characteristics
  • Housing

    • Metal
  • Dimensions (with ears)

    • 480 x 195 x 44 mm (18.9 x 7.68 x 1.73 in)
  • Dimensions (without ears)

    • 440 x 195 x 44 mm (17.32 x 7.68 x 1.73 in)
  • Weight

    • 3460 g (7.63 lb)
  • Installation

    • Rack mounting
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11 DIPs
  • Safety

    • UL 60950-1
  • Traffic Control

    • NEMA TS2
  • Vibration

    • IEC 60068-2-6
  • Freefall

    • IEC 60068-2-34
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 636,600 hrs
  • Standards

    • Telcordia (Bellcore) Standard
