终端服务器

Moxa 终端服务器具备多种专业功能和安全特性,可建立可靠的网络终端连接,实现多种设备的连接,例如终端设备、调制解调器、数据交换机、大型计算机和 POS 设备,确保网络主机随时可以访问这些设备,且在整个流程中这些设备随时可用。

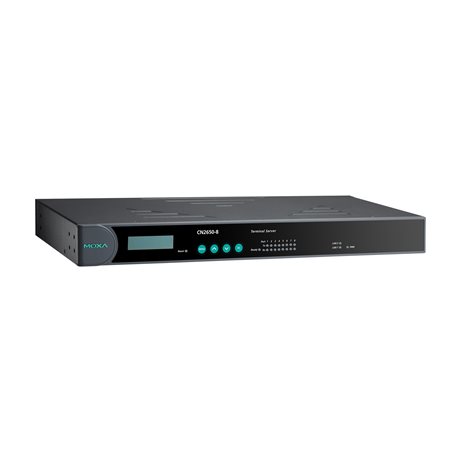

CN2650I-8-2AC
CN2600 系列

Dual-LAN, dual-AC-power terminal server with 8 RS-232/422/485 ports and 2 kV optical isolation

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features
  • Configuration Options

    • Web Console (HTTP/HTTPS), Windows Utility, Telnet Console, Serial Console, Device Search Utility (DSU)
  • Management

    • ARP, BOOTP, DDNS, DHCP Client, DNS, HTTP, IPv4, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, ICMP, SLIP
  • MIB

    • MIB-II
  • Security

    • HTTPS/SSL, RADIUS, SSH, PAP, CHAP
  • Unicast Routing

    • RIPV1/V2, Static Route
  • Windows Real COM Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Linux Real TTY Drivers

    • Kernel version: 2.4.x, 2.6.x, 3.x, 4.x
  • Android API

    • Android 3.1.x and later
  • Fixed TTY Drivers

    • SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Serial Interface
  • Connector

    • 8-pin RJ45
  • No. of Ports

    • 8
  • Serial Standards

    • RS-232, RS-422, RS-485
  • Operation Modes

    • Real COM mode, TCP Server mode, TCP Client mode, UDP mode, RFC2217 mode, Terminal mode, Reverse Telnet mode, PPP mode, DRDAS mode, Redundant COM mode, Disabled
  • Baudrate

    • 50 bps to 921.6 kbps
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • None, RTS/CTS, DTR/DSR, XON/XOFF
  • Isolation

    • 2 kV
  • RS-485 Data Direction Control

    • ADDC® (automatic data direction control)
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485

    • 120 ohms
  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
Power Parameters
  • No. of Power Inputs

    • 2
  • Input Current

    • 130 A @ 110 VAC
  • Input Voltage

    • 100 to 240 VAC (47 to 63 Hz)
Reliability
  • Automatic Reboot Trigger

    • Built-in WDT
  • Alert Tools

    • Built-in buzzer and RTC (real-time clock)
Physical Characteristics
  • Housing

    • Metal
  • Installation

    • 19-inch rack mounting
  • Dimensions (with ears)

    • 480 x 198 x 45.5 mm (18.9 x 7.80 x 1.77 in)
  • Dimensions (without ears)

    • 440 x 198 x 45.5 mm (17.32 x 7.80 x 1.77 in)
  • Weight

    • 3,932 g (8.67 lb)
Environmental Limits
  • Operating Temperature

    • 0 to 55°C (32 to 131°F)
  • Storage Temperature (package included)

    • 0 to 55°C (32 to 131°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11 DIPs
  • Safety

    • UL 60950-1
  • Vibration

    • IEC 60068-2-6
  • Freefall

    • IEC 60068-2-32
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 190,562 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
