x86 计算机

Moxa 工业级无风扇 X86 计算机通过了一系列严苛测试,严格遵循工业标准,即便在恶劣的工作环境中也能长久可靠运转,是重工业、变电站和电力设施、交通运输、油气以及海事应用的理想选择。

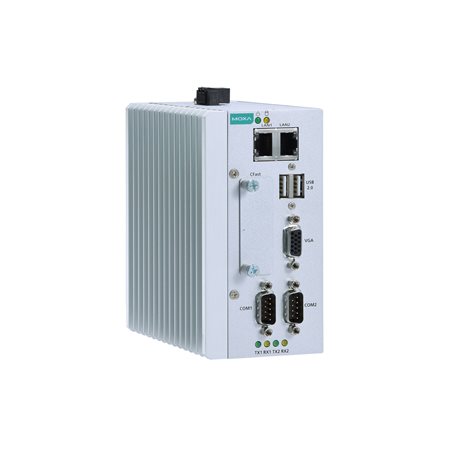

MC-1112-E4-T
MC-1100 系列

x86 embedded computer with Intel Atom® quad-core E3845 processor, 4 GB RAM, VGA, 2 USBs, 2 Gigabit LANs, 2 serial ports, 1 CFast socket, 12 to 36 VDC power

Computer
  • CPU

    • Intel Atom® Processor E3845 (2M Cache, 1.91 GHz)
  • Graphics Controller

    • Intel® HD Graphics
  • System Memory Pre-installed

    • 4 GB DDR3L
  • System Memory Slot

    • SODIMM DDR3/DDR3L slot x 1
  • Supported OS

    • Linux Debian 8 (Linux kernel v4.1)
      Windows Embedded Standard 7 (WS7E) 64-bit
      Windows 10 Embedded IOT Ent 2016 LTSB
  • Storage Slot

    • CFast slot x 1
Computer Interface
  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
  • Serial Ports

    • RS-232/422/485 ports x 2, software selectable (DB9 male)
  • USB 2.0

    • USB 2.0 hosts x 2, type-A connectors
  • Video Output

    • VGA x 1, 15-pin D-sub connector (female)
LED Indicators
  • System

    • Power x 1
      Storage x 1
  • LAN

    • 2 per port (10/100/1000 Mbps)
  • Serial

    • 2 per port (Tx, Rx)
Serial Interface
  • Baudrate

    • 50 bps to 115.2 kbps
  • Connector

    • DB9 male
  • Data Bits

    • 5, 6, 7, 8
  • Flow Control

    • ADDC® (automatic data direction control) for RS-485
      RTS/CTS, XON/XOFF
  • Isolation

    • N/A
  • Parity

    • None, Even, Odd, Space, Mark
Power Parameters
  • Input Voltage

    • 11.4 to 36 VDC
  • Power Connector

    • Terminal block (for DC models)
  • Power Consumption

    • 30 W (max.)
Reliability
  • Automatic Reboot Trigger

    • Built-in WDT
Physical Characteristics
  • Housing

    • Metal
  • Dimensions

    • 132 x 122 x 68 mm (5.2 x 4.81 x 2.68 in)
  • Weight

    • 1,022 g (2.25 lb)
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)
  • Storage Temperature (package included)

    • -45 to 75°C (-49 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-8 PFMF
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  • Hazardous Locations

    • ATEX Zone 2
      Class I Division 2
      IECEx Zone 2
  • Maritime

    • DNV-GL
      IEC 60945
  • Radio Frequency

    • FCC
  • Safety

    • UL 60950-1
Warranty
