MOXA

x86 计算机

Moxa 工业级无风扇 X86 计算机通过了一系列严苛测试,严格遵循工业标准,即便在恶劣的工作环境中也能长久可靠运转,是重工业、变电站和电力设施、交通运输、油气以及海事应用的理想选择。

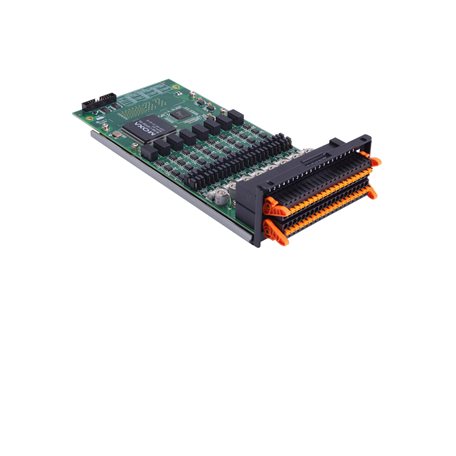

DE-SP08-I-TB
DA-720-UART 系列扩展模块

8-port RS-232/422/485 PCIe serial module

Serial Interface
  • Baudrate

    • 50 bps to 921.6 kbps
  • Connector

    • Terminal block
  • Data Bits

    • 5, 6, 7, 8
  • Flow Control

    • ADDC® (automatic data direction control) for RS-485, RTS/CTS, XON/XOFF
  • Isolation

    • 2 kV
  • Parity

    • None, Even, Odd, Space, Mark
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
  • Serial Standards

    • RS-232/422/485
  • Stop Bits

    • 1, 1.5, 2
  • Surge

    • 2 kV
  • Terminator for RS-485

    • 120 ohms
Serial Signals
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-232

    • TxD, RxD, RTS, CTS, GND
Physical Characteristics
  • Dimensions (without ears)

    • 213.31 x 95 mm (8.398 x 3.74 in)
  • Weight

    • 395 g (0.87 lb)
Environmental Limits
  • Operating Temperature

    • -25 to 55°C (-13 to 131°F)
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 463,644 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
