ARM 架构计算机

Moxa ARM 架构工业计算机支持无线功能,其无风扇结构,体积小,专为小型自动化应用设计。这款计算机能持久运行,提供 5 年硬件保修和支持长达 10年的Moxa 工业 Linux 操作系统,使之成为远程监控和数据采集应用的理想之选。

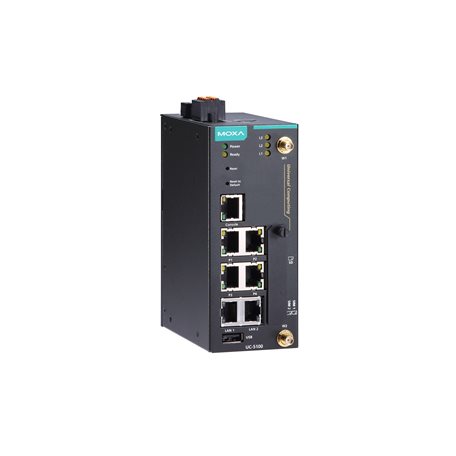

UC-5101-LX
UC-5100 系列

Arm-based industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, 4 DI, 4 DO, and USB, -10 to 60°C operating temperature range

Computer
  • CPU

    • Armv7 Cortex-A8 1 GHz
  • Pre-installed OS

    • Linux Debian 9 kernel 4.4 (Moxa Industrial Linux)
  • DRAM

    • 512 MB DDR3
  • Storage Pre-installed

    • 8 GB eMMC
  • Storage Slot

    • SD slots x 1
Computer Interface
  • USB 2.0

    • USB 2.0 hosts x 1, type-A connectors
  • Expansion Slots

    • mPCIe slot x 1
  • Number of SIMs

    • 2
  • SIM Format

    • Micro
  • Serial Ports

    • RS-232/422/485 ports x 4, software selectable (RJ45)
  • Digital Input

    • DIs x 4
  • Digital Output

    • DOs x 4
  • Buttons

    • Reset button, DIP switch for serial and CAN port configuration
  • Console Port

    • RS-232 (TxD, RxD, GND), RJ45 output (115200, n, 8, 1)
Ethernet Interface
  • Ethernet Ports

    • Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Serial Interface
  • Serial Ports

    • 4 x RS-232/422/485
  • Data Bits

    • 5, 6, 7, 8
  • Parity

    • None, Even, Odd, Space, Mark
  • Stop Bits

    • 1, 1.5, 2
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Digital Inputs
  • Voltage

    • 0 to 0.8 VDC
      2.0 to 5.5 VDC
Digital Outputs
  • Current Rating

    • 24 mA per channel
  • Voltage

    • 0 to 0.55 VDC
      2.5 to 3.3 VDC
LED Indicators
  • System

    • Programmable x 3
  • LAN

    • 2 per port (10/100 Mbps)
  • Serial

    • 2 per port (Tx, Rx)
Physical Characteristics
  • Housing

    • Metal
  • Weight

    • 600 g (1.32 lb)
  • Dimensions

    • 57 x 136 x 100 mm (2.24 x 5.35 x 3.94 in)
  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Power Parameters
  • Input Voltage

    • 9 to 48 VDC
  • Input Current

    • 0.95 A @ 9 VDC, 0.23 A @ 48 VDC
  • Power Consumption

    • 6 W
Environmental Limits
  • Operating Temperature

    • -10 to 60°C (14 to 140°F)
  • Storage Temperature

    • -20 to 70°C (-4 to 158°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Vibration

    • 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without any USB devices attached)
  • Shock

    • IEC 60068-2-27
Standards and Certifications
  • Safety

    • UL 60950-1, EN 60950-1, IEC 60950-1
  • EMC

    • EN 55032/24, EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Green Product

    • RoHS, CRoHS, WEEE
Reliability
  • Alert Tools

    • External RTC (real-time clock)
  • Automatic Reboot Trigger

    • External WDT (watchdog timer)
MTBF
  • Time

    • 728,216 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
